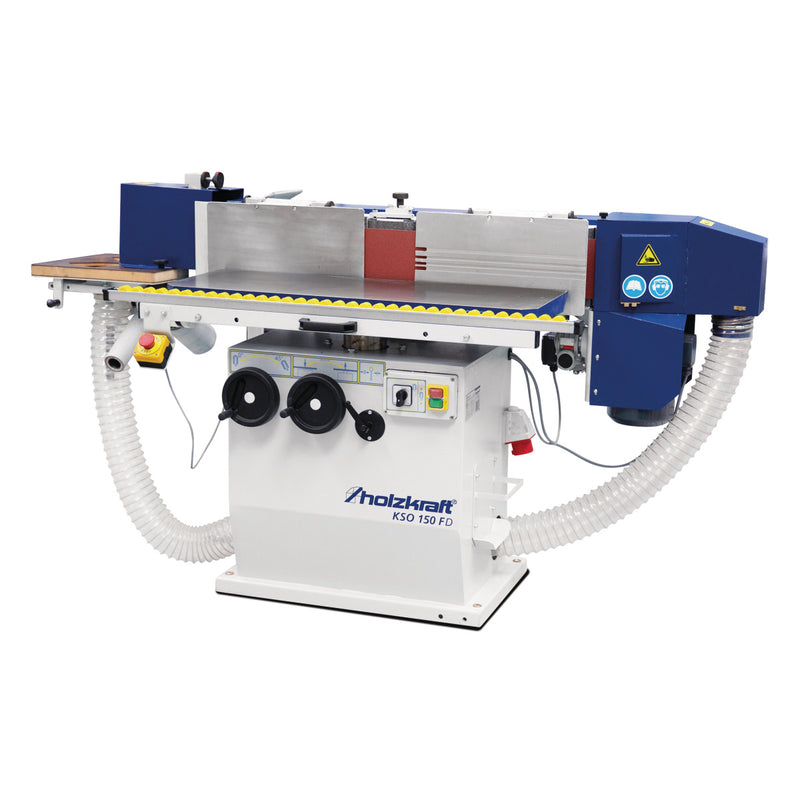

Holzstar (5363002) Edge sanding machine KSO 150 FD
SKU 5363002
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
Room amenities
- With rotating star and rotatable suction plate for fast conversion of 3 different sanding radii: ⌀60 mm, ⌀100 mm, ⌀120 mm
- Equipped as standard with sturdy console as preparation for mounting a feeder
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 1900 mm |
| Width/depth (product) approx. | 850 mm |
| Height (product) approx. | 1350 mm |
| Net weight approx. | 310 kg |
| Extraction port | |
| Extraction port diameter | 140 mm |
| Work top(s) | |
| Longitudinal table height adjustment | 230 mm |
| Min. cross table height | 720 mm |
| Work table length | 960 mm |
| Work table width | 350 mm |
| Work table height adjustment | 230 mm |
| Electrical Data | |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Oscillation motor power | 0.25 kW |
| Sanding machine | |
| Sanding belt length | 3100 mm |
| Sanding belt width | 150 mm |
| Circumferential belt speed(s) | 20 m/s |
| Oscillation stroke | 20 mm |
| Sanding surface length | 1050 mm |
| Sanding surface width | 150 mm |
- Console for VSA
- table extension
- rubber rollers
- rotary star
- wooden crate
- EAN: 4036351041818
- Custom Number: 84659300
- Comprimento: 2100 mm
- Altura: 1240 mm
- Largura: 950 mm
- Peso Bruto: 330 kg
- Peso Líquido: 310
Request a quote
Estimated shipping time: 48-72 hours
