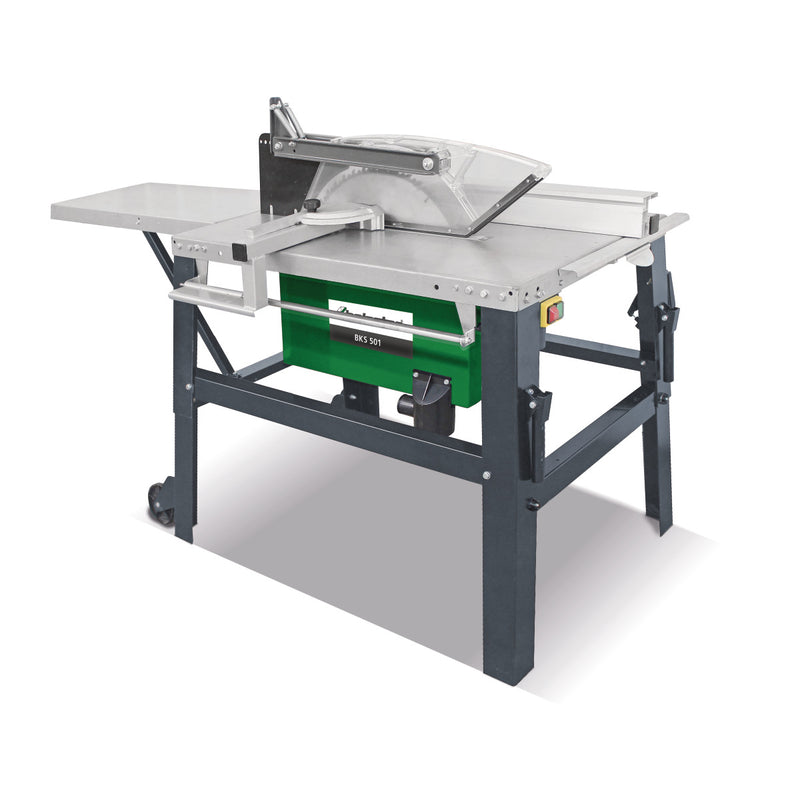

Holzstar (5740050) Construction circular saw BKS 501
SKU 5740050
Original price
€1.014,75
Original price
€1.014,75
-
Original price
€1.014,75
Original price
€1.014,75
Current price
€964,01
€964,01
-
€964,01
Current price
€964,01
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
- Pendulum safety guard, transparent
- Angle-adjustable cross-cutting device with wedge cutting gauge, fold-down
- Aluminium parallel fence with high and flat contact edge
- Table extension (800 x 400 mm), fold-down
- Large crane eyelets
- Phase inverter
- Brackets for aluminium parallel fence and mounting tool
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 1870 mm |
| Width/depth (product) approx. | 810 mm |
| Height (product) approx. | 1170 mm |
| Net weight approx. | 103 kg |
| Extraction port | |
| Extraction port diameter bottom | 95 mm |
| Saw blade protection extraction port diameter | 50 mm |
| Equipment | |
| Table lengthening | ⌀ |
| Saw blade cover | ⌀ |
| Electrical Data | |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Absorbed power drive motor | 4.2 kW |
| Delivery power | 3.4 kW |
| Protection class drive motor | IP 44 |
| Duty type drive motor | S6 40% |
| Efficiency class drive motor | IE3 |
| Total current draw | 7.1 A |
| Sliding carriage and table | |
| Table length | 1000 mm |
| Table width | 660 mm |
| Work height | 850 mm |
| Circular saw unit | |
| Max. cutting width with rip fence | 305 mm |
| Max. cutting height 90° | 150 mm |
| (Main) saw blade diameter | 500 mm |
| (Main) saw blade speed | 2800 min¯¹ |
- 1x saw blade 500x30x4 mm Z44
- push stick
- push handle
- pendulum saw blade protection hood
- tool for saw blade change
- foldable table extension
- EAN: 4036351306740
- Custom Number: 84659120
- Comprimento: 1300 mm
- Altura: 610 mm
- Largura: 840 mm
- Peso Bruto: 119 kg
- Peso Líquido: 96
Estimated shipping time: 48-72 hours
