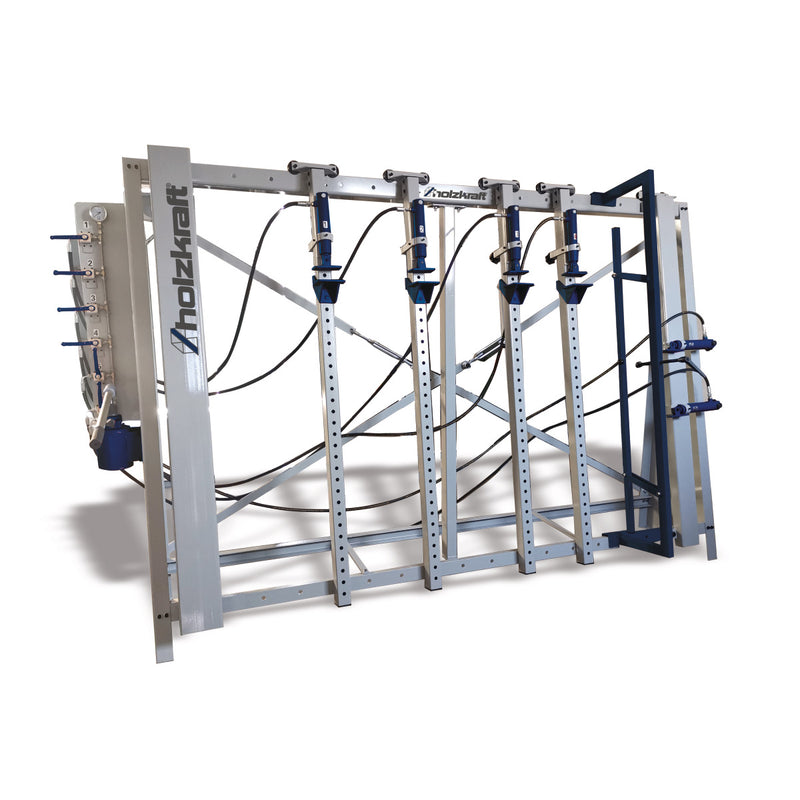

Holzstar (5800300) Gluing press with frame pressing device VP 3000x6 RP

Name: Holzstar (5800300) Gluing press with frame pressing device VP 3000x6 RP
Brand: Holzstar
SKU: 5800300
Price: 3960.05 EUR
Availability: InStock

SKU 5800300

€4.168,47

€4.168,47 - €4.168,47

€4.168,47

€3.960,05

€3.960,05 - €3.960,05

€3.960,05

VAT Included

0% VAT for Businesses with an EU VAT Number! Available during checkout.

Ideal for the production of frames, windows and doors thanks to horizontal and vertical pressing units
Central generation of hydraulic pressure via hand pump with pressure indicator
Each pressing unit can be switched off individually with stopcock
Integrated hold-down device for full-surface support of the workpiece

Dimensions and weights
Working area height	1550 mm
Working area width	2500 mm
Number of press units Horizontal	2
Number of press units Vertical	4
Maximum piston stroke	95 mm
Maximum pressing force	2500 kg
Hydraulic oil quantity	1.6 l
Hydraulic oil	L-HM-32
Vertical hole pattern	50 mm
Horizontal hole pattern	240 mm
Number of pistons	6


Length (product) approx.	3300 mm
Width/depth (product) approx.	900 mm
Height (product) approx.	2000 mm
Net weight approx.	325 kg

EAN: 4036351350668
Custom Number: 84659400
Comprimento: 3030 mm
Altura: 710 mm
Largura: 450 mm
Peso Bruto: 370 kg
Peso Líquido: 325

View Catalog

Estimated shipping time: 48-72 hours
