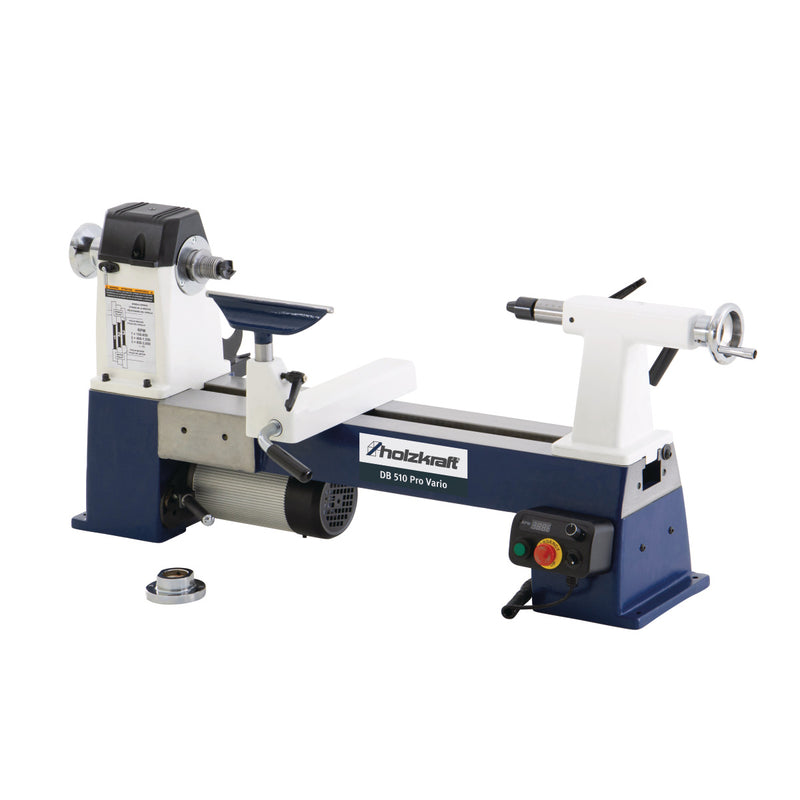

Holzstar (5822051) Woodturning lathe DB 510 Pro Vario
SKU 5822051
Original price
€1.190,64
Original price
€1.190,64
-
Original price
€1.190,64
Original price
€1.190,64
Current price
€1.131,11
€1.131,11
-
€1.131,11
Current price
€1.131,11
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Max. turning diameter | 355 mm |
| Max. height | 178 mm |
| Max. width | 508 mm |
| Spindle head thread | M 33 x 3.5 |
| Speeds | 150 ⌀ 650, 400 ⌀ 1550, 850 ⌀ 3850 min-¹ |
| Speed stages | 3 |
| Speed control | Electronically variable |
| Taper of tailstock sleeve | MT2 |
| Tailstock thread | Trapezoid |
| Tailstock stroke | 102 mm |
| Bearing distance | 96.5 mm |
| Spindle cone | MT2 |
| Partial installation | 24 Steps |
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 1100 mm |
| Width/depth (product) approx. | 470 mm |
| Height (product) approx. | 470 mm |
| Net weight approx. | 62 kg |
| Equipment | |
| Right-left run | ⌀ |
| Frequency inverter | ⌀ |
| Mobile control panel | ⌀ |
| Electrical Data | |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Motor power input | 1,1 kW |
- Tool rest 200 mm
- Face plate 80 mm
- Four-point driver
- center punch
- long ejector rod
- Short ejector rod
- Clamping wrench 46 mm
- Clamping wrench 38 mm
- Allen key (2.5mm, 3mm, 4mm, 5mm)
- EAN: 4036351353683
- Custom Number: 84659900
- Comprimento: 1005 mm
- Altura: 288 mm
- Largura: 525 mm
- Peso Bruto: 66 kg
- Peso Líquido: 62
Estimated shipping time: 48-72 hours
