BaerCoil (B4021) Thread Repair Kit M12x1.75
SKU B4021
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
- All normal uses for thread repair and for thread reinforcement of through-hole and blind-hole threads.

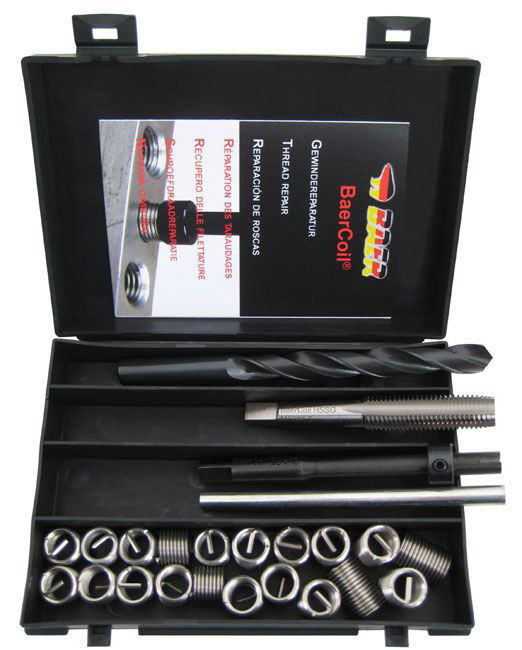

- With this BaerCoil® thread repair-set it is possible to repair through hole threads and blind hole threads in M 12 x 1.75.
Technical drawing
| Diameter |
12 |
|---|---|
| Length |
1,5 D |
| T (Length when installed) |
18 mm |
| F (Min. - Max. outside diameter of thread insert) |
14,03 mm - 15,00 mm |
| P (depth) |
The thread insert must sit 1/4 - 1/2 turns below the surface |
| B (thread depth with chamfer) |
24,13 mm |
| D (minimum depth of the core hole, without tip) |
25,88 mm |
