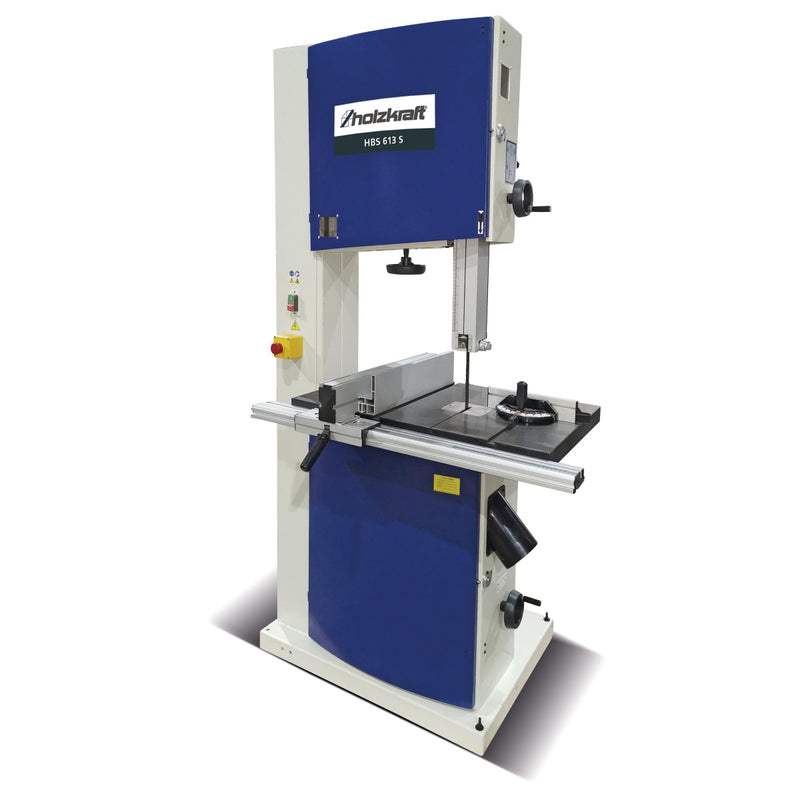

Holzstar (5150613) Woodbandsaw HBS 613 S
SKU 5150613
Original price
€4.428,00
Original price
€4.428,00
-
Original price
€4.428,00
Original price
€4.428,00
Current price
€4.206,60
€4.206,60
-
€4.206,60
Current price
€4.206,60
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 1250 mm |
| Width/depth (product) approx. | 1015 mm |
| Height (product) approx. | 2150 mm |
| Net weight approx. | 337 kg |
| Extraction port | |
| Extraction port diameter | 2 x 120 mm |
| Work top(s) | |
| Work table length | 700 mm |
| Work table width | 610 mm |
| Work table height | 920 mm |
| Work table extension length | 200 mm |
| Work table extension width | 610 mm |
| Work table pivot | 0 ⌀ 45 ° |
| Work table pivot explanation | For safety reasons, a holding device / stop must be fitted from 20° to prevent the wood from slipping! |
| Electrical Data | |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Delivery power | 4,0 kW |
| Cutting ranges | |
| Max. cutting height 90° | 430 mm |
| Max. cutting height 45° | 258 mm |
| Max. cutting width with stop | 495 mm |
| Max. cutting width without stop | 600 mm |
| Saw band | |
| Saw band speed(s) | 1560 m/min |
| Flywheel diameter | 610 mm |
| Saw band length | 4590 mm |
| Saw band length min. | 4580 mm |
| Saw band length max. | 4600 mm |
| Saw band width | 25 mm |
| Saw band width max. | 38 mm |
| Saw band thickness | 0,6 mm |
| Saw band guide | High quality, fixed saw blade guide |
- Mitre gauge
- Saw band
- Push stick
- EAN: 4036351286530
- Custom Number: 84659110
- Comprimento: 1030 mm
- Altura: 2218 mm
- Largura: 730 mm
- Peso Bruto: 365 kg
- Peso Líquido: 337
Estimated shipping time: 48-72 hours
