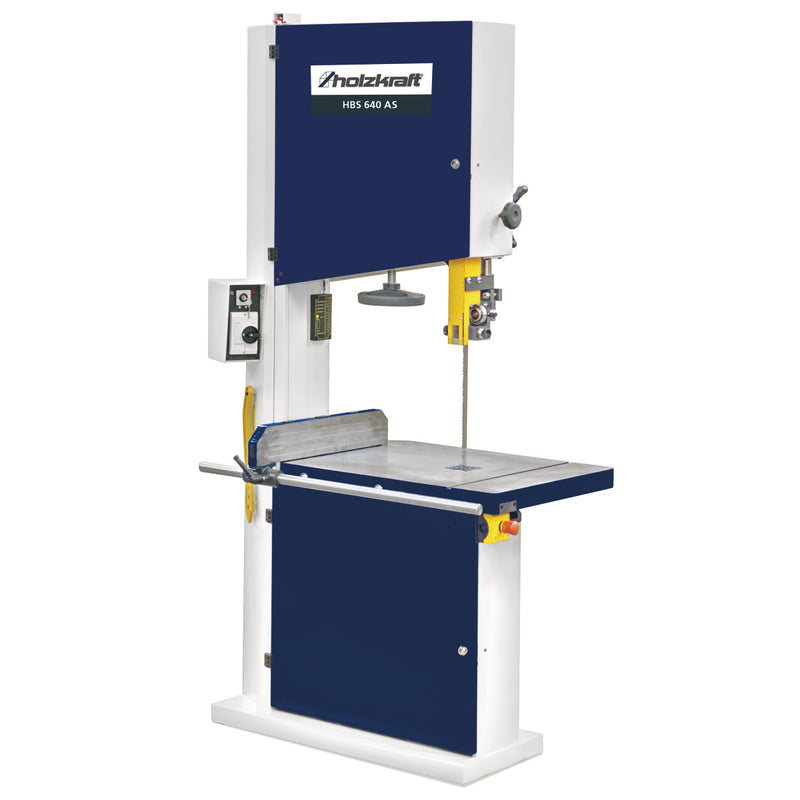

Holzstar (5152164) Woodbandsaw HBS 640 AS

Name: Holzstar (5152164) Woodbandsaw HBS 640 AS
Brand: Holzstar
SKU: 5152164
Price: 7186.28 EUR
Availability: InStock

SKU 5152164

VAT Included

0% VAT for Businesses with an EU VAT Number! Available during checkout.

Heavy design with high dead weight for maximum running smoothness
Particularly quiet and pretorsionally stiff machine housing
Cast flywheels with rubber coating and cleaning brush
3-roller precision saw band guide as standard at top and bottom
Large cast iron saw table, swivels from 0° to +15° with ground and polished surface
Large cast-iron parallel fence with round rod guide, easilyguide, easily movable
Saw blade tension indicator
Precise cutting height adjustment overover toothed rack with millimetre scale
Self-braking motor

Available on request

Table, motor and switch must be mounted on site

Dimensions and weights

Length (product) approx.	1050 mm
Width/depth (product) approx.	720 mm
Height (product) approx.	2180 mm
Net weight approx.	300 kg


Extraction port
Extraction port diameter	2 x 120 mm


Work top(s)
Work table length	885 mm
Work table width	600 mm
Work table height	840 mm
Work table pivot	0 ⌀ 20 °


Electrical Data
Supply voltage	400 V
Mains frequency	50 Hz
Delivery power	2,2 kW


Cutting ranges
Max. cutting height 90°	400 mm
Max. cutting width	620 mm


Saw band
Saw band speed(s)	1630 m/min
Flywheel diameter	640 mm
Saw band length	4780 mm
Saw band length min.	4770 mm
Saw band length max.	4810 mm
Min. saw band strength	0.5 mm
Max. saw band strength	0.6 mm
Saw band guide	Precision guide top and bottom
