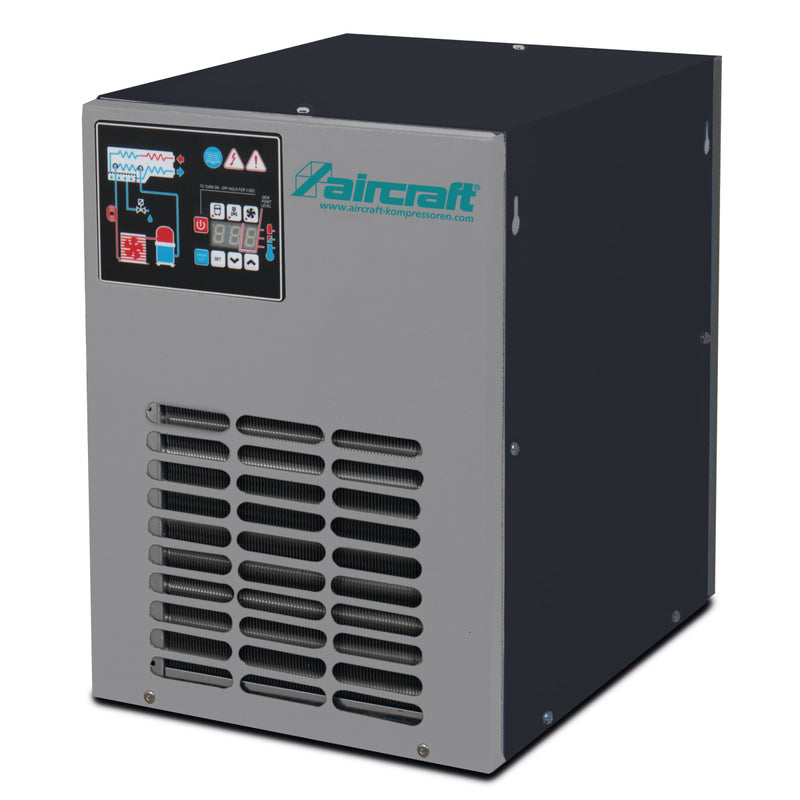

(2041745) Compressed air refrigeration dryer AD 280
SKU 2041745
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
- User-friendly operating concept
- Efficient construction for cost-effective and safe operation
- Cooling fan from 0 - 100% speed controlled, this eliminates the usual pressure switch and the thermostat for the fan control
- Less wearing parts with constant pressure dew point
- Control displays five different alarm conditions and keeps them in memory
- Refrigerant compressor switches off below 15 ° ambient temperature, if no compressed air flows through
- Clarity and good accessibility of all components to be serviced
- With built-in automatic steam trap
The advantages at a glance
- High profitability
- Excellent price-performance ratio
- No unnecessary compressed air losses due to integrated electronic steam trap
- Connected tools and machines are optimally protected
- User-friendly operating concept
| Air flow l/min | 4666 l/min |
| Air flow m³/h | 280 m³/h |
| Maximum pressure | 16 bar |
| Air connection | 1 " |
| Power consumption | 0.6 kW |
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 485 mm |
| Width/depth (product) approx. | 595 mm |
| Height (product) approx. | 614 mm |
| Net weight approx. | 59 kg |
- EAN: 9006248015814
- Custom Number: 84193900
- Comprimento: 485 mm
- Altura: 614 mm
- Largura: 595 mm
- Peso Bruto: 59 kg
- Peso Líquido: 59 kg
