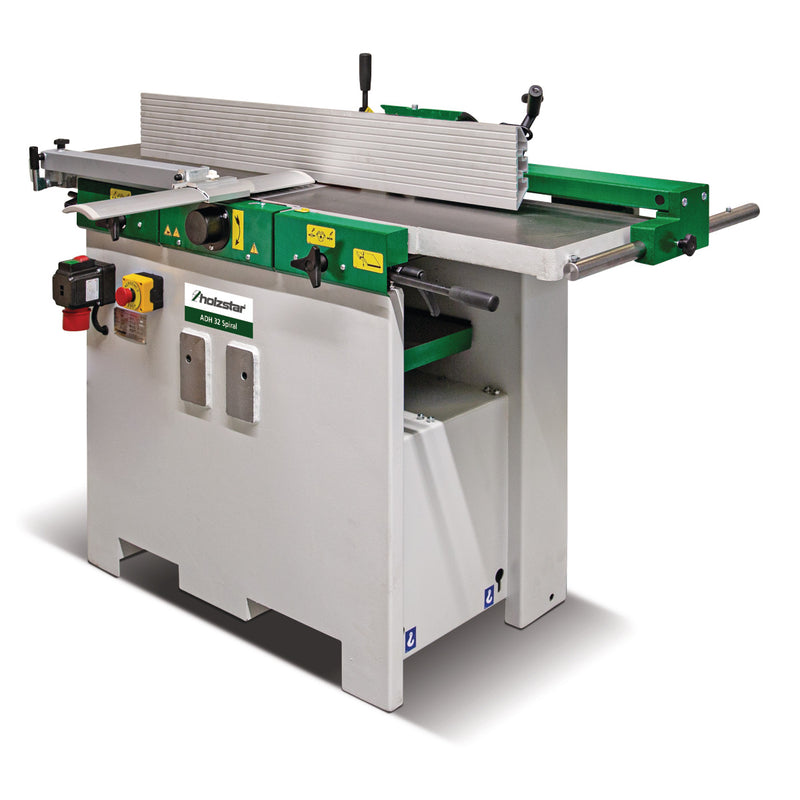

Holzstar (5940033) Surface and thickness planer ADH 32 SPIRAL
SKU 5940033
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 1500 mm |
| Width/depth (product) approx. | 650 mm |
| Height (product) approx. | 1000 mm |
| Net weight approx. | 360 kg |
| Jointing | |
| Infeed table length | 1500 mm |
| Infeed table width | 320 mm |
| Working height | 850 mm |
| Max. cutting depth of joints | 5 mm |
| Planing stop pivoting range | 90 ⌀ 45 ° |
| Extraction port | |
| Extraction port diameter thickness | 120 mm |
| Thickness | |
| Thicknessing table length | 700 mm |
| Thicknessing table width | 316 mm |
| Working height min. thickness | 4 mm |
| Working height max. thickness | 225 mm |
| Working length min. thickness | 300 mm |
| Max. cutting depth thickness | 5 mm |
| Electrical Data | |
| Drive motor output | 4,0 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Planing knife shaft | |
| Planing shaft type | SPIRAL |
| Planing shaft diameter | 100 mm |
| Number of planing blades | 3 St |
| Planing shaft speed | 4600 min¯¹ |
| Max. planing width | 320 mm |
| Feed | |
| Feed speed | 8 m/min |
| Spiral cutter | |
| Number of knives spiral cutter | 51 Pcs. |
- Spiral cutter head mounted
- Professional side dresser stop
- EAN: 4036351317654
- Custom Number: 84659200
- Comprimento: 1900 mm
- Altura: 1140 mm
- Largura: 1000 mm
- Peso Bruto: 510 kg
- Peso Líquido: 360
