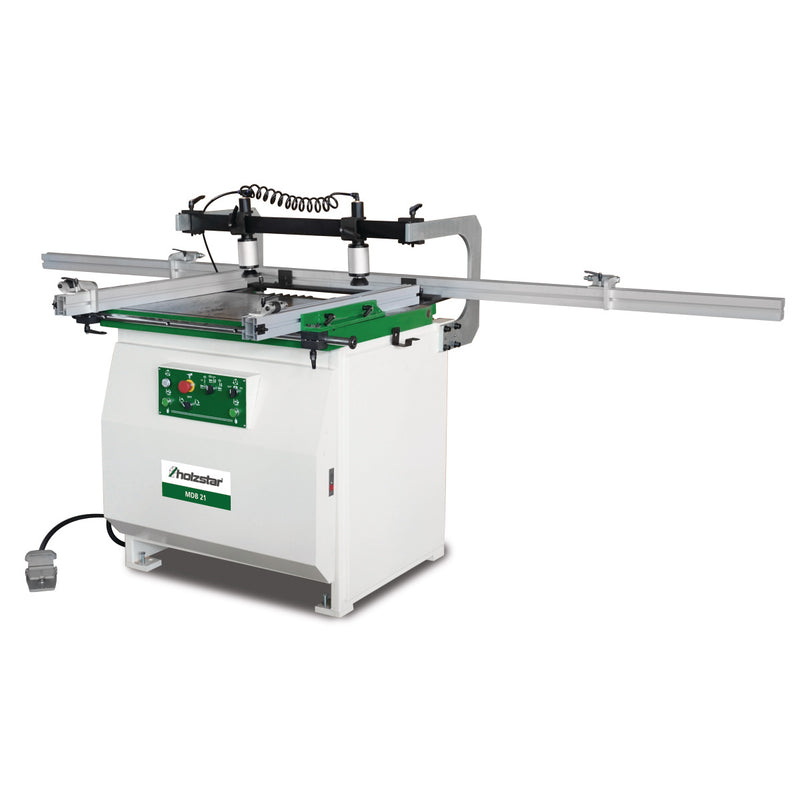

Holzstar (5943021) Multi dowel drilling machine MDB⌀21
SKU 5943021
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Dimensions and weights | |
|---|---|
| Work table length | 890 mm |
| Work table width | 625 mm |
| Length (product) approx. | 3000 mm |
| Width/depth (product) approx. | 1300 mm |
| Height (product) approx. | 1300 mm |
| Net weight approx. | 360 kg |
| Electrical Data | |
| Drive motor input | 1.5 kW |
| Drive motor output | 1.1 kW |
| Nominal operating mode drive motor | S1 |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Noise emission | |
| Sound pressure level | 98.5 dB(A) |
| Pneumatic connection | |
| Working pressure | 6 ⌀ 8 bar |
| Spindle | |
| Max. drilling width | 640 mm |
| Drilling depth max. at 90° | 50 mm |
| Number of spindles | 21 |
| Distance between spindles | 32 mm |
| Spindle distance first to last | 640 mm |
| Spindle speed(s) | 2800 min¯¹ |
| Swivel of drill unit | 0 ⌀ 90 ° |
| Max. height of workpiece | 70 mm |
- Six quick-action chucks for shank diameter 10 mm
- Two rip fences with one flip stop each
- 3m aluminium stop with 2 flip stops
- EAN: 4036351320531
- Custom Number: 84659500
- Comprimento: 1060 mm
- Altura: 1100 mm
- Largura: 1050 mm
- Peso Bruto: 388 kg
- Peso Líquido: 367
