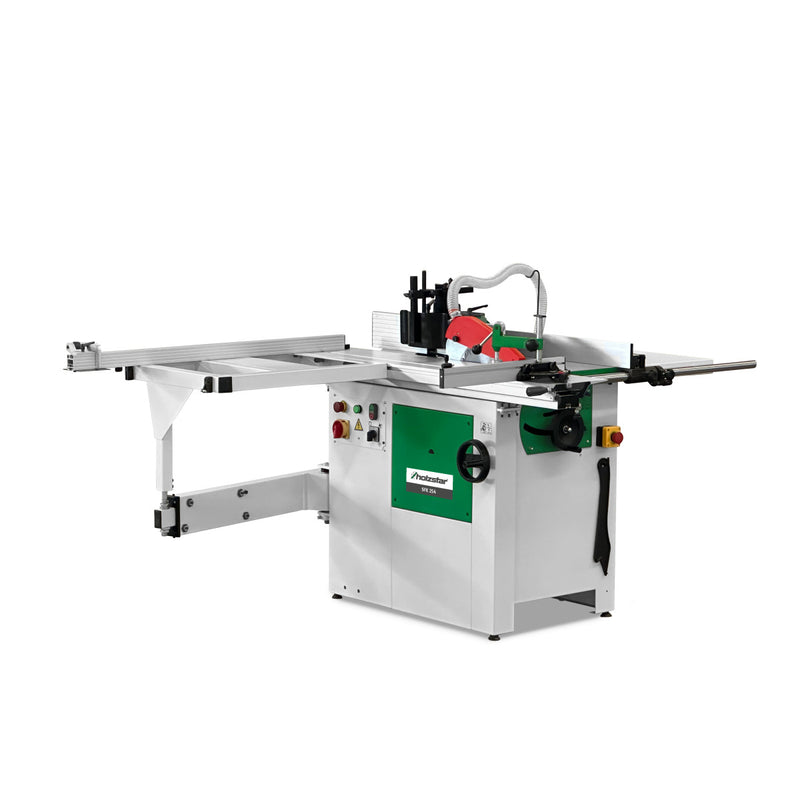

Holzstar (5945313) Saw-mill combination SFK 254/30-1300 (230V)
SKU 5945313
Original price
€2.432,94
Original price
€2.432,94
-
Original price
€2.432,94
Original price
€2.432,94
Current price
€2.311,29
€2.311,29
-
€2.311,29
Current price
€2.311,29
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 2200 mm |
| Width/depth (product) approx. | 1330 mm |
| Height (product) approx. | 1300 mm |
| Net weight approx. | 211 kg |
| Extraction port | |
| Suction port diameter milling machine | 100 mm |
| Suction port diameter Saw blade guard | 30 mm |
| Electrical Data | |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Input power saw | 2.2 kW |
| Input power milling | 1.5 kW |
| Sliding carriage and table | |
| Format slide length | 1300 mm |
| Sliding table width | 238 mm |
| Table length | 920 mm |
| Table width | 810 mm |
| Milling spindle | |
| Spindle height adjustment | 110 mm |
| Spindle mandrel diameter | 30 mm |
| Useful length of the spindle | 105 mm |
| Spindle speeds | 1400/4000/6000/9000 min⌀�¹ |
| Milling cutter diameter max. | |
| Tool diameter max. | 160 mm |
| Noise emission | |
| Idle sound pressure level | 80 dB(A) |
| No-load sound power level | 87 dB(A) |
| Load Sound pressure level | 92 dB(A) |
| Load Sound power level | 101 dB(A) |
| Circular saw unit | |
| Trimming length | 1300 mm |
| Saw blade tilt | 45 ⌀ 90 ° |
| Max. cutting height 90° | 78 mm |
| Max. cutting height 45° | 63 mm |
| Speed (main) saw blade | 4000 min¯¹ |
- EAN: 4036351354734
- Custom Number: 84651010
- Comprimento: 2200 mm
- Altura: 1300 mm
- Largura: 1330 mm
- Peso Bruto: 256 kg
- Peso Líquido: 211
Estimated shipping time: 48-72 hours
