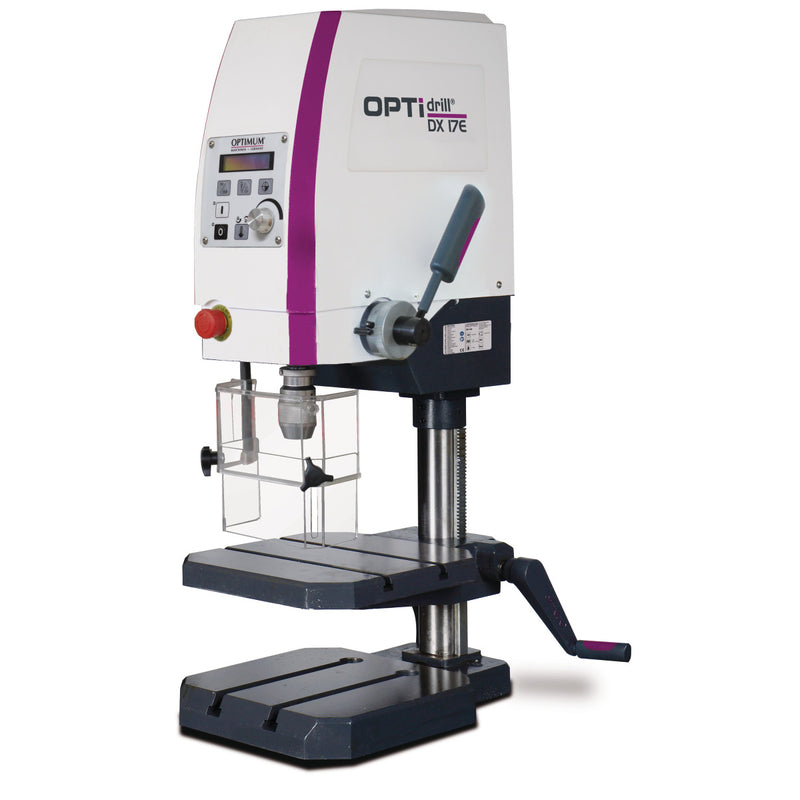

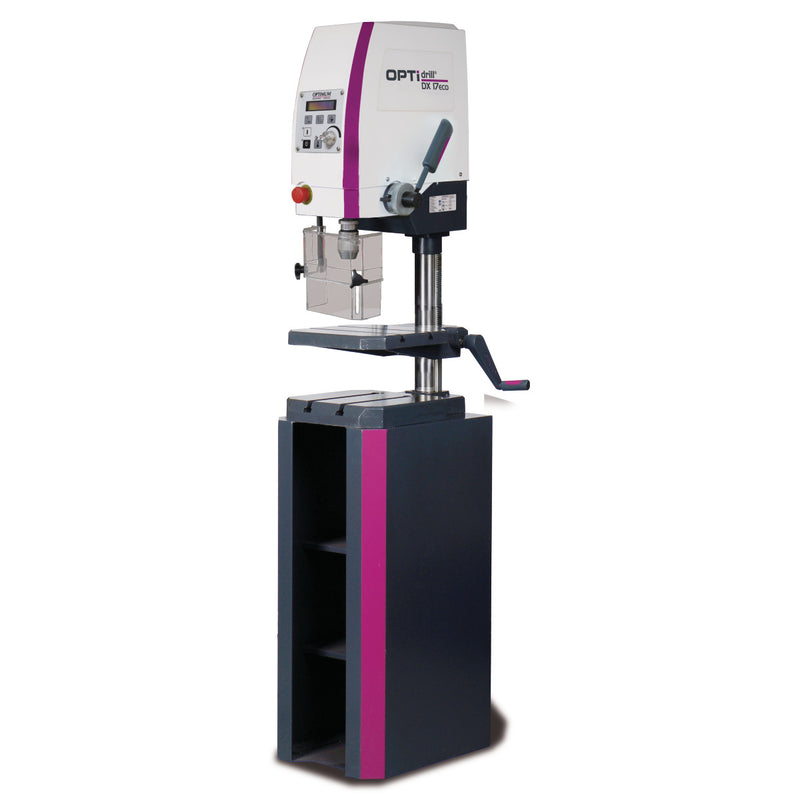

Optimum (3020168) Bench Drill OPTIdrill DX 17E

Description

• Best power transmission through aluminium pulleys
• Emergency stop pushbutton switch
• Drilling spindle with precision ball bearings
• Guaranteed concentricity accuracy less than 0.03 mm measured at the drilling spindle

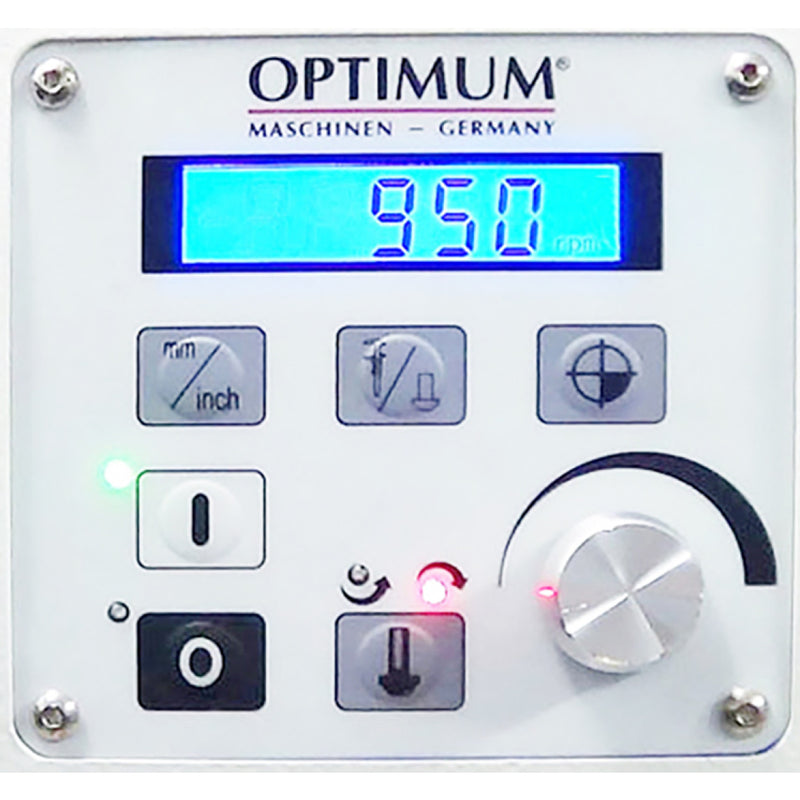

• High-contrast, digital LCD speed display integrated in the housing, speed control by potentiometer
• Dirt- and water-resistant, easy-to-clean membrane keypad
• Glare-free LED lighting integrated in the drill head on the left and right. No disturbing shadows
• Height-adjustable chuck guard with microswitch for maximum protection
• PrePrecisely machined drilling table with parallel T-slots, precisely surface machined
• Drilling table swivels away
• Massive base plate with parallel T-slots

Technical data

Dimensions and weights

• Length (product) approx.: 425 mm
• Column diameter: 60 mm
• Width/depth (product) approx.: 481 mm
• Height (product) approx.: 910 mm
• Net weight approx.: 73 kg

Drilling performance

• Drilling performance steel (S235JR): 16 mm
• Continuous drilling performance steel (S235JR): 13 mm

Drilling table

• Drilling table workspace length: 290 mm
• Drilling table workspace width: 290 mm
• Drilling table T-groove size: 10 mm
• Drilling table T-groove number: 2
• Drilling table T-groove spacing: 100 mm
• Drilling table rotation: 360 °
• Min. distance chuck - drilling table: 98 mm
• Max. distance chuck - drilling table: 315 mm

Speed range

• Speed range: 50 - 4000 min¯¹
• Speed control: electronic

Electrical Data

• Drive motor output: 1,0 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz

Machine base

• Max. distance chuck - machine base: 385 mm
• Machine base workspace length: 290 mm
• Machine base workspace width: 280 mm
• Machine base T-groove size: 14 mm
• Machine base T-groove number: 2
• Machine base T-groove spacing: 100 mm

Spindle

• Quill stroke: 60 mm
• Spindle chuck: MT 2
• Reach: 235 mm

Transport info

• EAN: 4030635044533
• Customs number: 84592900
• Length: 420 mm
• Height: 1050 mm
• Width: 540 mm
• Gross weight: 87 kg
• Net weight: 72 kg
