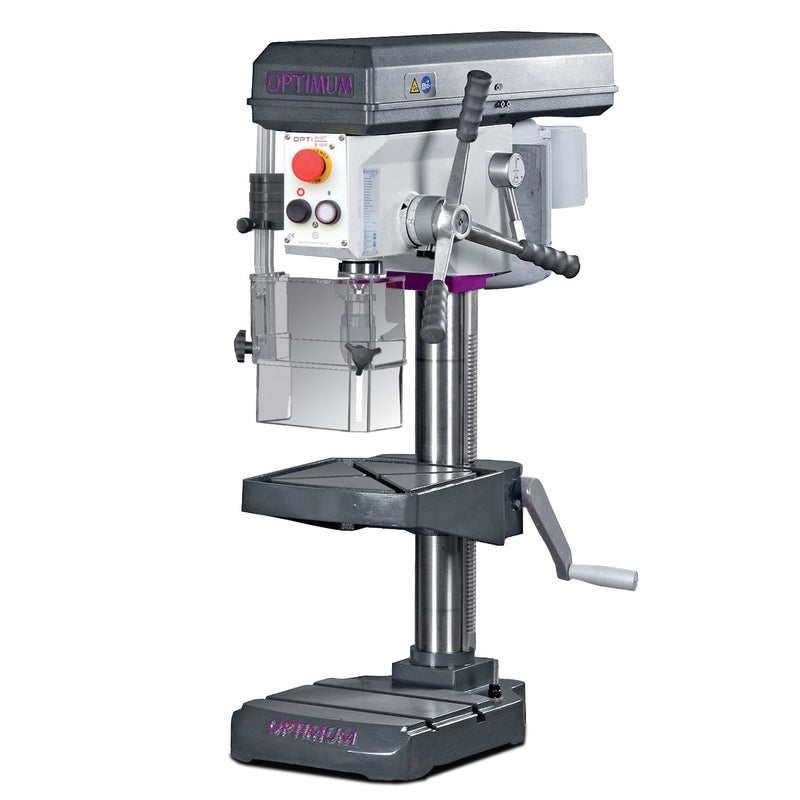

Optimum (3020217) Bench drill OPTIdrill B 16H
SKU 3020217
Original price
€1.223,85
Original price
€1.223,85
-
Original price
€1.223,85
Original price
€1.223,85
Current price
€1.162,66
€1.162,66
-
€1.162,66
Current price
€1.162,66
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 549 mm |
| Column diameter | 60 mm |
| Width/depth (product) approx. | 300 mm |
| Height (product) approx. | 848 mm |
| Net weight approx. | 54 kg |
| Drilling performance | |
| Drilling performance steel (S235JR) | 13 mm |
| Continuous drilling performance steel (S235JR) | 11 mm |
| Drilling table | |
| Drilling table workspace length | 230 mm |
| Drilling table workspace width | 245 mm |
| Drilling table T-groove type | diagonal |
| Drilling table T-groove size | 12 mm |
| Drilling table rotation | 360 ° |
| Max. distance spindle - drilling table | 370 mm |
| Speed range | |
| Speed range | 450 - 3500 min¯¹ |
| Number of gears | 5 Steps |
| Electrical Data | |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine base | |
| Max. distance spindle - machine base | 495 mm |
| Machine base workspace length | 200 mm |
| Machine base workspace width | 240 mm |
| Machine base T-groove size | 12 mm |
| Machine base T-groove number | 2 |
| Machine base T-groove spacing | 80 mm |
| Spindle | |
| Quill stroke | 65 mm |
| Spindle chuck | MT 2 |
| Reach | 130 mm |
| Motor(s) | |
| Spindle motor drive output | 0.55 kW |
| Number of gears spindle motor | 1 Steps |
- Keyless chuck (1 - 13 mm)
- Morse taper MK2 / B16
- T-nuts
- EAN: 4030635024269
- Custom Number: 84592900
- Comprimento: 600 mm
- Altura: 1000 mm
- Largura: 360 mm
- Peso Bruto: 70 kg
- Peso Líquido: 55
Estimated shipping time: 48-72 hours
