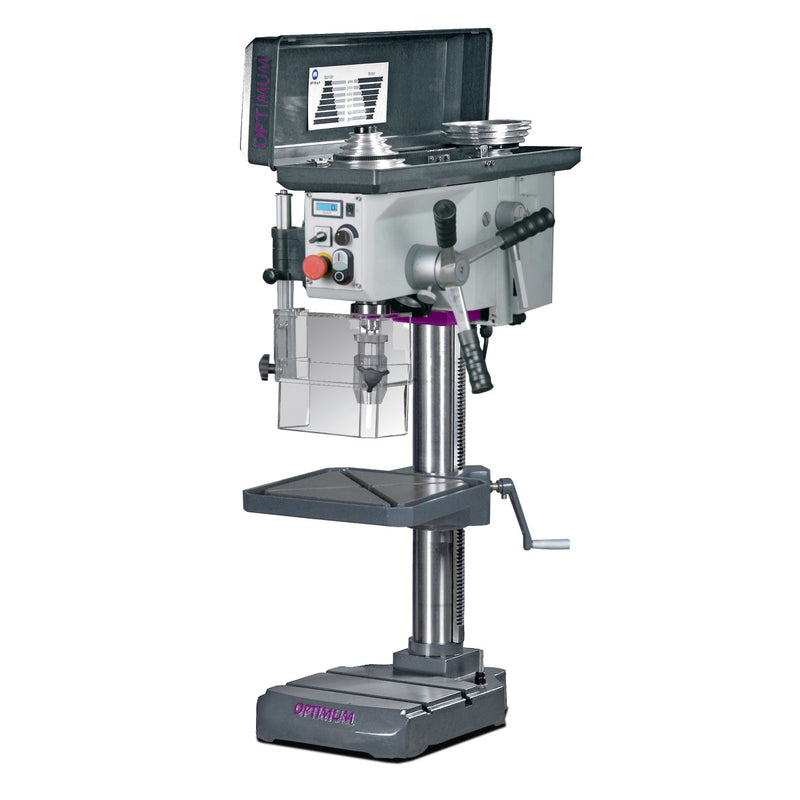

Optimum (3020245) Bench drill OPTIdrill B 24HV
SKU 3020245
Original price
€4.371,42
Original price
€4.371,42
-
Original price
€4.371,42
Original price
€4.371,42
Current price
€4.152,85
€4.152,85
-
€4.152,85
Current price
€4.152,85
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
One piece cast (B 24HV with softgrip handles)
From OPTIdrill B 28HV
- Quillons made of steel
- Coolant system
- Chip filter according to the Machinery Directive
- Easy tool change through integrated expeller
OPTIdrill B 34HV
- Quill stroke 160 mm
- Tapping function
- Digital depth gauge
Special feature of the OPTIdrill B 34 HV
-
Operating mode "auto"
- Engine starts automatically after lever movement
- Stops again in the starting position
- Pushbutton Start and Stop does not have to be pressed during repetitive drilling tasks
-
Operating mode "tapping"
- Engine is activated by moving the handle down
- The direction of rotation is changed by limit switches on the adjustable drilling depth stop
Equipment details

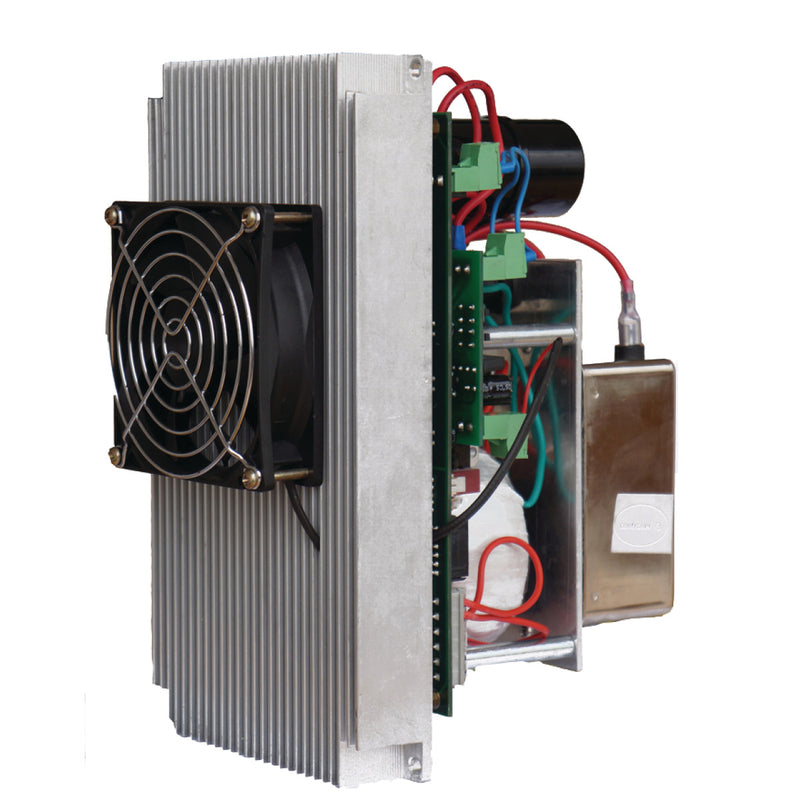

Powerful brushless drive
- Especially quiet running
- High performance
- Approximately constant torque over the entire speed range
Belt drive
- Best power transmission through aluminum pulleys in conjunction with toothed GATES quality V-belt
- Smooth running thanks to ground multi-tooth driver
Digital speed display
- integrated in the housing
Speed control
- by means of potentiometer
Concentricity
- Guaranteed ; 0.015 mm measured in the quill
Spindle
- Precision ball bearings
- High quality OPTIMUM keyless chuck as standard
V-belt tensioning device
Machine light
- Integrated in the drill head
- Halogen lamp
Drilling
- Precisely worked
- Diagonal T-slots
- 360° rotatable
- Circulating cooling water channel
baseplate
- Solid
- Large dimensions
- Heavily ribbed on the reverse side
cast column
- Thick-walled
- High power and stability
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 665 mm |
| Column diameter | 80 mm |
| Width/depth (product) approx. | 434 mm |
| Height (product) approx. | 998 mm |
| Net weight approx. | 96 kg |
| Drilling performance | |
| Drilling performance steel (S235JR) | 24 mm |
| Continuous drilling performance steel (S235JR) | 20 mm |
| Drilling table | |
| Drilling table workspace length | 280 mm |
| Drilling table workspace width | 300 mm |
| Drilling table T-groove type | diagonal |
| Drilling table T-groove size | 14 mm |
| Drilling table rotation | 360 ° |
| Drilling table load bearing capacity | 50 kg |
| Max. distance spindle - drilling table | 515 mm |
| Speed range | |
| Speed range | 100 - 5950 min¯¹ |
| Number of gears | 4 Steps |
| Speed control | electronically adjustable |
| Electrical Data | |
| Total rated value | 1,5 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Machine base | |
| Max. distance spindle - machine base | 590 mm |
| Machine base workspace length | 280 mm |
| Machine base workspace width | 260 mm |
| Machine base T-groove size | 14 mm |
| Machine base T-groove number | 2 |
| Machine base T-groove spacing | 120 mm |
| Standards and certifications | |
| Standard | DIN EN 55011 |
| EMV-Class | C3 |
| Spindle | |
| Quill stroke | 85 mm |
| Spindle chuck | MT 2 |
| Reach | 165 mm |
- Optimum quality keyless chuck (1 - 16 mm)
- Morse cone MK 2 / B16
- T-nuts
- EAN: 4030635008856
- Custom Number: 84592900
- Comprimento: 755 mm
- Altura: 1175 mm
- Largura: 440 mm
- Peso Bruto: 122 kg
- Peso Líquido: 96
Estimated shipping time: 48-72 hours
