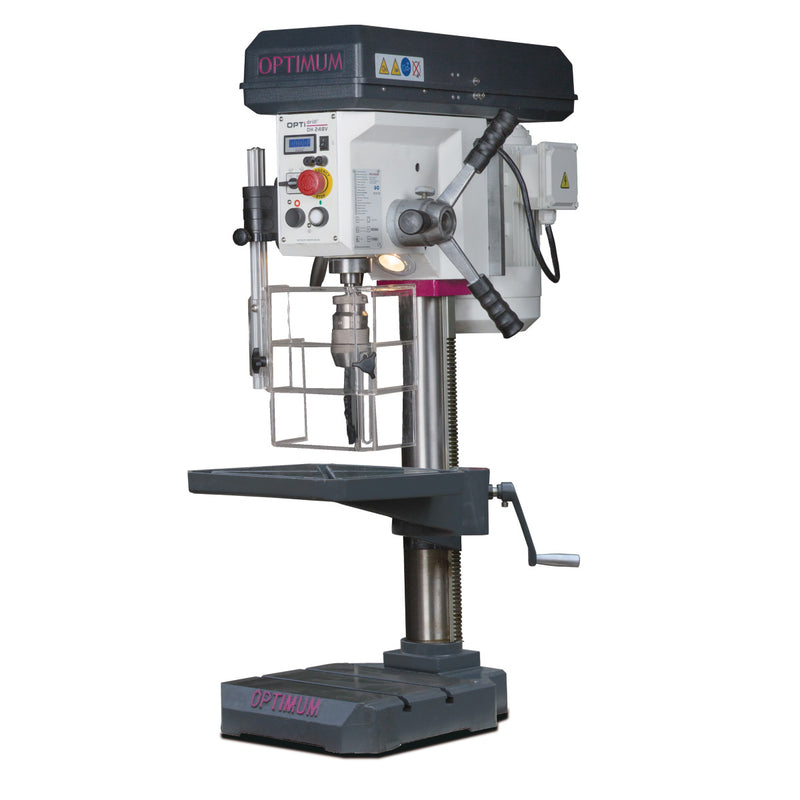

Optimum (3020420) Bench Drill OPTIdrill DH 24BV

Description

• Smooth and powerful electric motor
• Two speed levels
• Forward / reverse operation

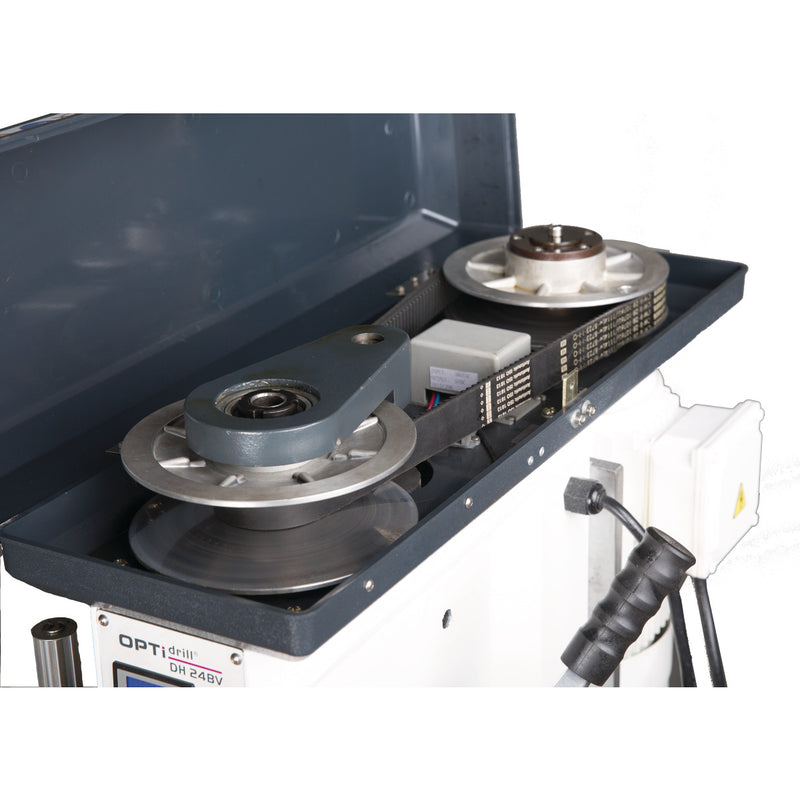

• V-belt cover with safety switch
• Digital speed indicator integrated in the housing
• Concentricity guaranteed less than 0.015 mm measured in quill
• Height-adjustable feed guard with microswitch for the utmost protection of the user
• Machine light integrated in the drill head
• Drill spindle with precision ball bearing
• High quality keyless chuck as standard
• Precision machined drilling table with diagonally running T-slots, 360 ° rotatable with circulating cooling water channel
• Thick-walled cast-iron column for high power absorption and stability
• Massive base plate, large dimensions heavily ribbed on the back
• Base plate usable by pivoting away the drilling table as a work surface for particularly high workpieces

Technical data

Dimensions and weights

• Length (product) approx.: 675 mm
• Column diameter: 80 mm
• Width/depth (product) approx.: 555 mm
• Height (product) approx.: 1025 mm
• Net weight approx.: 115 kg

Drilling performance

• Drilling performance steel (S235JR): 24 mm
• Continuous drilling performance steel (S235JR): 20 mm

Drilling table

• Drilling table workspace length: 280 mm
• Drilling table workspace width: 300 mm
• Drilling table T-groove type: diagonal
• Drilling table T-groove size: 14 mm
• Drilling table rotation: 360 °
• Max. distance spindle - drilling table: 515 mm

Speed range

• Speed range: 300 - 4000 min¯¹
• Number of gears: 2 Steps
• Speed control: Manual

Electrical Data

• Supply voltage: 400 V
• Mains frequency: 50 Hz

Machine base

• Max. distance spindle - machine base: 681 mm
• Machine base workspace length: 280 mm
• Machine base workspace width: 260 mm
• Machine base T-groove size: 14 mm
• Machine base T-groove number: 2
• Machine base T-groove spacing: 120 mm

Spindle

• Quill stroke: 85 mm
• Spindle chuck: MT 2
• Reach: 165 mm

Motor(s)

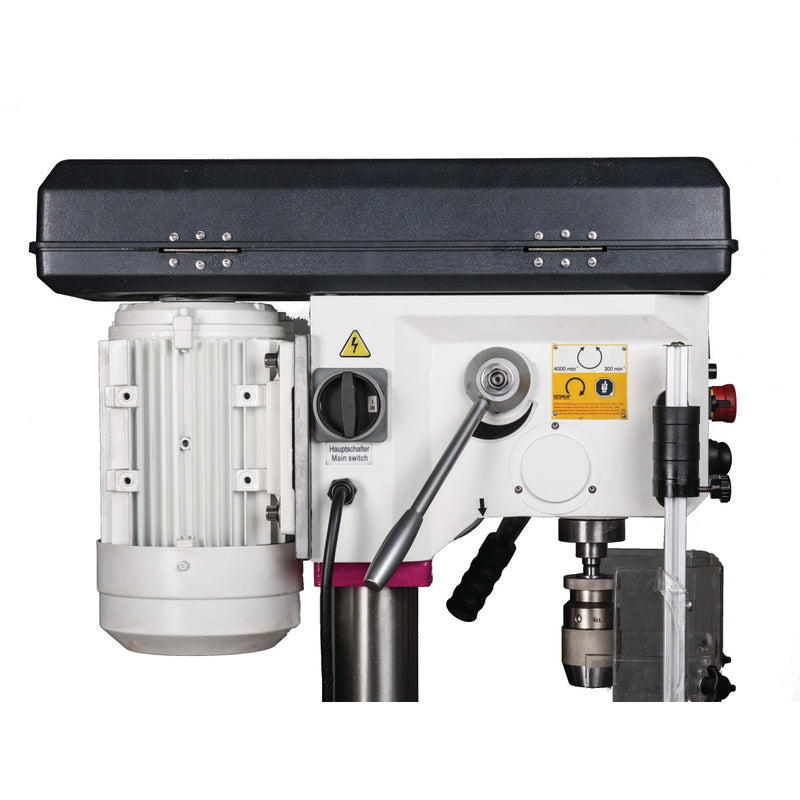

• Spindle motor drive output: 0.85 / 1.50 kW
• Number of gears spindle motor: 2 Steps

Delivery content

• Optimum quality keyless chuck (1 - 16 mm)
• Morse cone MK 2 / B16
• T-nuts

Transport info

• EAN: 4030635020445
• Customs number: 84592900
• Length: 755 mm
• Height: 1175 mm
• Width: 440 mm
• Gross weight: 139 kg
• Net weight: 115 kg

Optional accessories

• Workplace mat 1840x640 mm
• Workplace mat 1840x940 mm
• Workplace mat 3040x640 mm
• Workplace mat 3040x940 mm
• Clamping tool kit SPW 10
• Clamping tool kit SPW 12
• Cone ejector MSP1 for MK1 to MK3
• Coolant hoses with magnetic base KMS 2
• Cooling lubricant nebulizer MMC1
• Cutting oil spray 400 ml
• Down device Table groove 14 mm / M 12
• Keyless drill chuck DKC13 0-13 mm
• Keyless drill chuck DKC16 0-16 mm
• Morse taper MK2-B16
• OPTIMUM direct quick-action drill chuck MK 2 1 - 13 mm; up to 8000 min¯¹
• OPTIMUM direct quick-action drill chuck MK 2 1 - 16 mm; up to 6000 min¯¹
• Precision quick-action drill chuck 1-10 mm, B16
• Tapping chuck with inserts MK 2; M3 - M12
• Twist drill HSS with Morse taper MT 2
• Twist drill HSS with Morse taper MT 3
• Twist Drill Set 25 pieces, 1 - 13 mm
• Twist Drill Set 41-piece, 6 - 10 mm (0.1 mm rising)
• Universal coolant device 230 V
