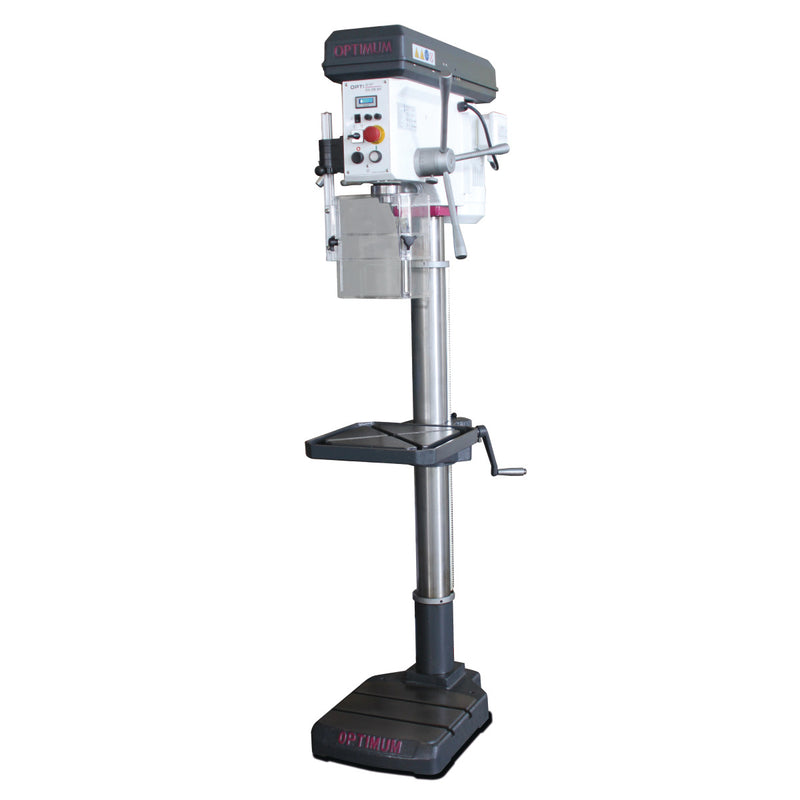

Optimum (3020430) Upright drill OPTIdrill DH 28BV
SKU 3020430
Original price
€4.500,57
Original price
€4.500,57
-
Original price
€4.500,57
Original price
€4.500,57
Current price
€4.275,54
€4.275,54
-
€4.275,54
Current price
€4.275,54
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
- Easy tool change through integrated expeller
- Quillons made of steel
- Digital depth gauge

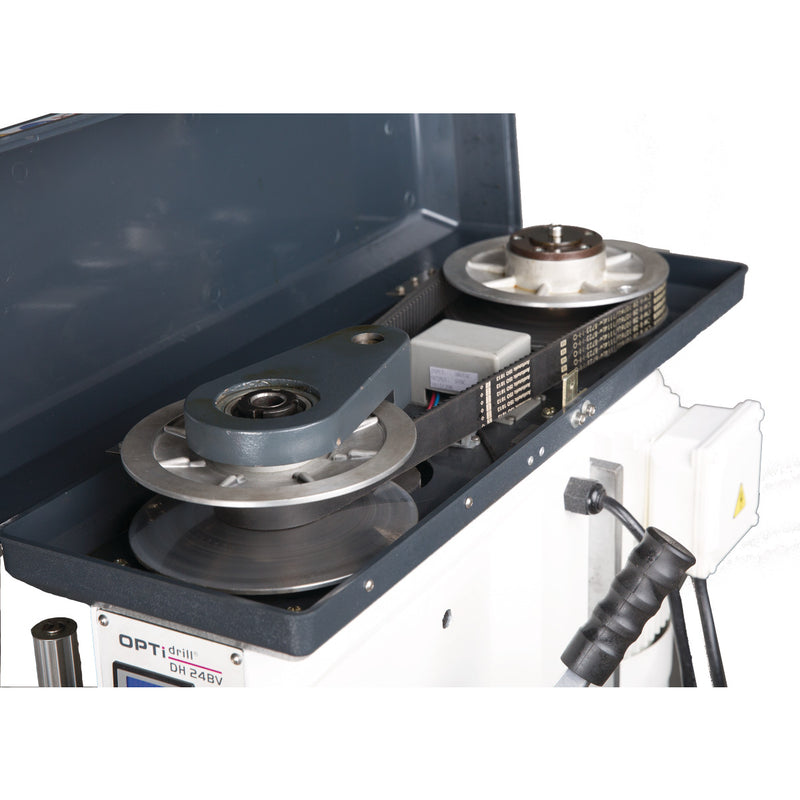

- Countershaft transmission allows a much higher torque
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 755 mm |
| Column diameter | 92 mm |
| Width/depth (product) approx. | 550 mm |
| Height (product) approx. | 1745 mm |
| Net weight approx. | 152 kg |
| Drilling performance | |
| Drilling performance steel (S235JR) | 28 mm |
| Continuous drilling performance steel (S235JR) | 24 mm |
| Drilling table | |
| Drilling table workspace length | 340 mm |
| Drilling table workspace width | 360 mm |
| Drilling table T-groove type | diagonal |
| Drilling table T-groove size | 14 mm |
| Drilling table rotation | 360 ° |
| Max. distance spindle - drilling table | 860 mm |
| Speed range | |
| Speed range | 300 - 4000 min¯¹ |
| Number of gears | 2 Steps |
| Speed control | Manual |
| Electrical Data | |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine base | |
| Max. distance spindle - machine base | 1285 mm |
| Machine base workspace length | 320 mm |
| Machine base workspace width | 320 mm |
| Machine base T-groove size | 14 mm |
| Machine base T-groove number | 2 |
| Machine base T-groove spacing | 120 mm |
| Spindle | |
| Quill stroke | 105 mm |
| Spindle chuck | MT 3 |
| Reach | 200 mm |
| Motor(s) | |
| Spindle motor drive output | 0.85 / 1.50 kW |
| Number of gears spindle motor | 2 Steps |
- Optimum quality keyless chuck (1 - 16 mm)
- Morse cone MK 3 / B16
- T-nuts
- EAN: 4030635020452
- Custom Number: 84592900
- Comprimento: 765 mm
- Altura: 1940 mm
- Largura: 500 mm
- Peso Bruto: 186 kg
- Peso Líquido: 152
Estimated shipping time: 48-72 hours
