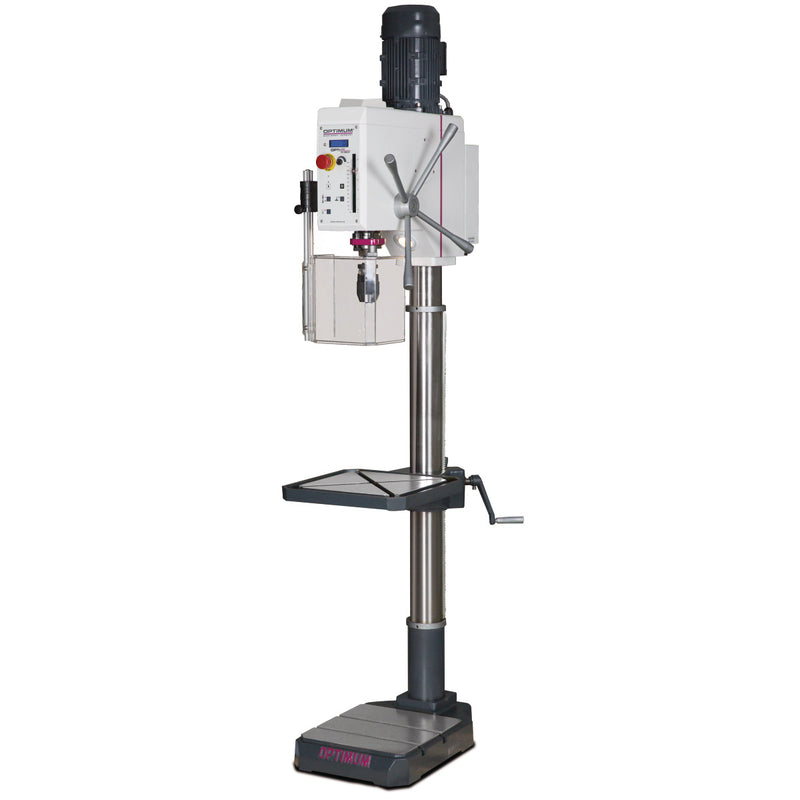

Optimum (3034235) Upright drill OPTIdrill DH 28GSV
SKU 3034235
Original price
€6.076,20
Original price
€6.076,20
-
Original price
€6.076,20
Original price
€6.076,20
Current price
€5.772,39
€5.772,39
-
€5.772,39
Current price
€5.772,39
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:

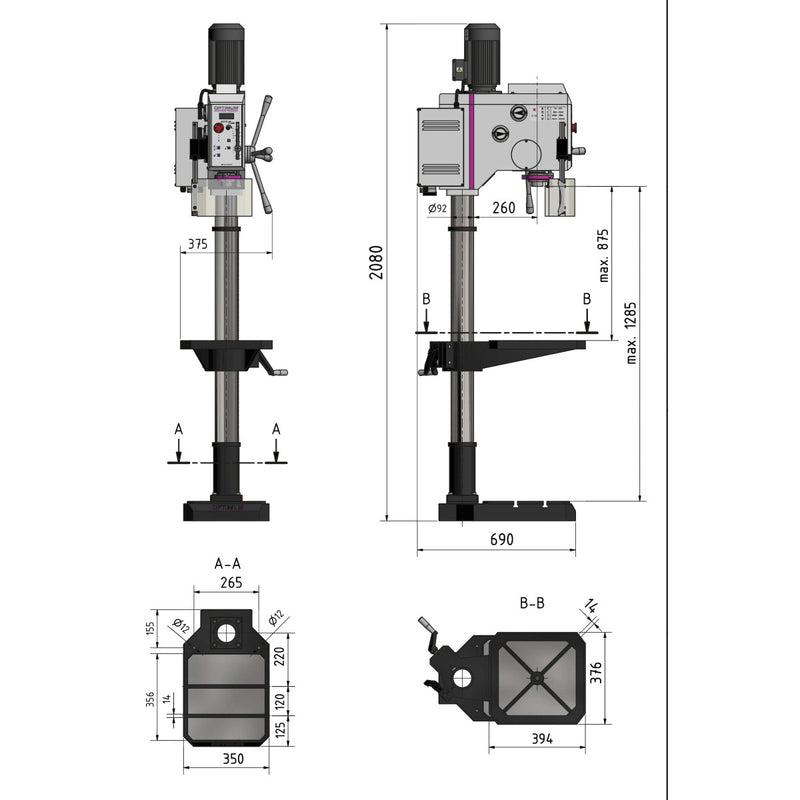

| Dimensions and weights | |
|---|---|
| Length (product) approx. | 690 mm |
| Column diameter | 92 mm |
| Width/depth (product) approx. | 375 mm |
| Height (product) approx. | 2080 mm |
| Net weight approx. | 184 kg |
| Drilling performance | |
| Drilling performance steel (S235JR) | 26 mm |
| Continuous drilling performance steel (S235JR) | 23 mm |
| Thread tapping steel (S235JR) | M 16 x 2 mm |
| Drilling table | |
| Drilling table workspace length | 376 mm |
| Drilling table workspace width | 394 mm |
| Drilling table T-groove type | diagonal |
| Drilling table T-groove size | 14 mm |
| Drilling table T-groove number | 2 |
| Drilling table rotation | 360 ° |
| Drilling table load bearing capacity | 100 kg |
| Max. distance spindle - drilling table | 875 mm |
| Speed range | |
| Speed range | 45 - 3200 min¯¹ |
| Number of gears | 4 Steps |
| Speed control | electronically adjustable |
| Electrical Data | |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine base | |
| Max. distance spindle - machine base | 1285 mm |
| Machine base workspace length | 350 mm |
| Machine base workspace width | 356 mm |
| Machine base T-groove size | 14 mm |
| Machine base T-groove number | 2 |
| Machine base T-groove spacing | 120 mm |
| Standards and certifications | |
| Standard | DIN EN 55011 |
| EMV-Class | C2 |
| Spindle | |
| Quill stroke | 127 mm |
| Spindle chuck | MT 3 |
| Reach | 260 mm |
| Motor(s) | |
| Spindle motor drive output | 1,5 kW |
- Adapter MK3-B16
- EAN: 4030635033179
- Custom Number: 84592900
- Comprimento: 2070 mm
- Altura: 890 mm
- Largura: 480 mm
- Peso Bruto: 230 kg
- Peso Líquido: 175
Estimated shipping time: 48-72 hours
