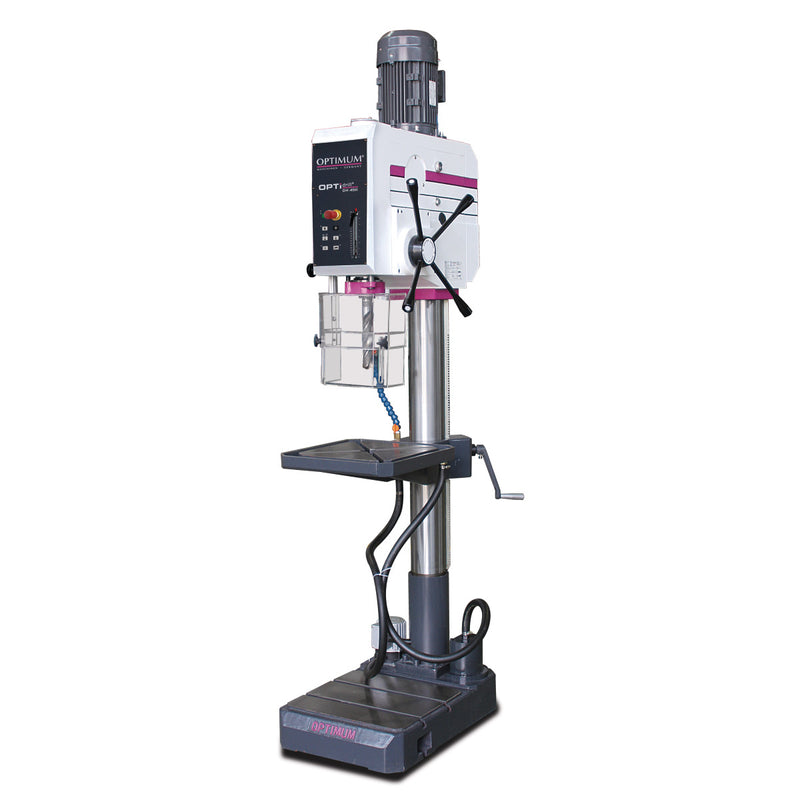

Optimum (3034250) Gear drilling machine OPTIdrill DH 35G
SKU 3034250
Original price
€7.244,70
Original price
€7.244,70
-
Original price
€7.244,70
Original price
€7.244,70
Current price
€6.882,47
€6.882,47
-
€6.882,47
Current price
€6.882,47
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:

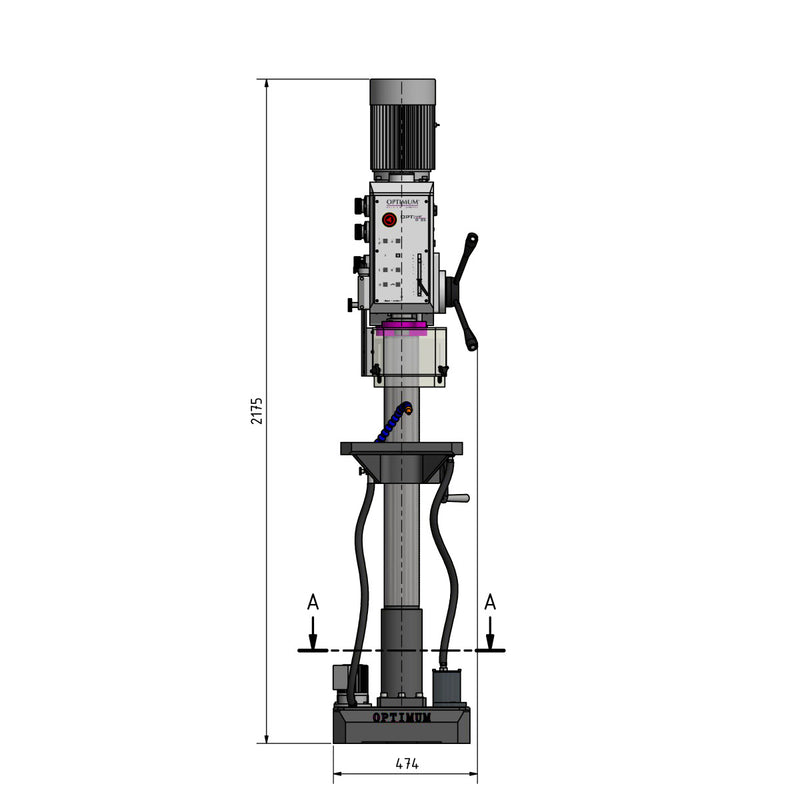

| Dimensions and weights | |
|---|---|
| Length (product) approx. | 860 mm |
| Column diameter | 115 mm |
| Width/depth (product) approx. | 474 mm |
| Height (product) approx. | 2175 mm |
| Net weight approx. | 350 kg |
| Drilling performance | |
| Drilling performance steel (S235JR) | 35 mm |
| Continuous drilling performance steel (S235JR) | 26 mm |
| Thread tapping steel (S235JR) | M 24 |
| Drilling table | |
| Drilling table workspace length | 400 mm |
| Drilling table workspace width | 420 mm |
| Drilling table T-groove type | diagonal |
| Drilling table T-groove size | 14 mm |
| Drilling table T-groove number | 2 |
| Drilling table load bearing capacity | 200 kg |
| Max. distance spindle - drilling table | 800 mm |
| Min. distance spindle - drilling table | 65 mm |
| Speed range | |
| Speed range | 75 - 2000 min¯¹ |
| Number of gears | 8 Steps |
| Electrical Data | |
| Drive motor output | 1,5 / 2,2 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine base | |
| Max. distance spindle - machine base | 1217 mm |
| Machine base workspace length | 420 mm |
| Machine base workspace width | 395 mm |
| Machine base T-groove size | 14 mm |
| Machine base T-groove number | 2 |
| Machine base T-groove spacing | 150 mm |
| Spindle | |
| Quill stroke | 125 mm |
| Spindle chuck | MT 4 |
| Reach | 285 mm |
| Quill feed speed | 0.05 – 0.15 mm/rev |
| Quill feed gears | 3 Steps |
| Motor(s) | |
| Coolant pump drive motor output | 40 W |
- Keyless drill chuck 1 - 16 mm
- Morse taper MK 4/B16
- EAN: 4030635038136
- Custom Number: 84592900
- Comprimento: 2240 mm
- Altura: 990 mm
- Largura: 550 mm
- Peso Bruto: 410 kg
- Peso Líquido: 380
Estimated shipping time: 48-72 hours
