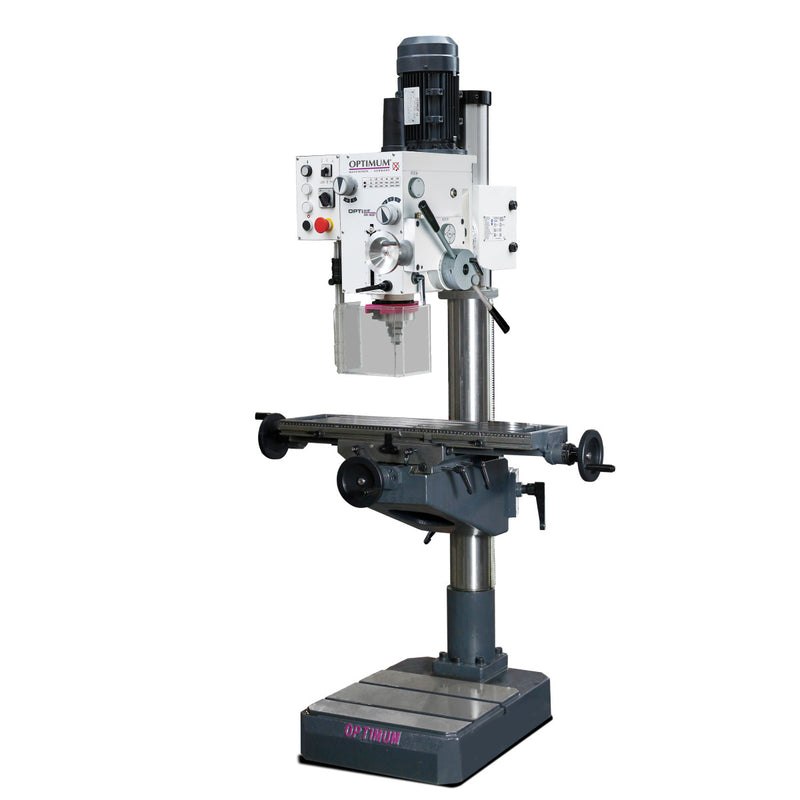

Optimum (3034352) Pillar gear drill with cross table OPTIdrill DH 40CTP
SKU 3034352
Original price
€5.375,10
Original price
€5.375,10
-
Original price
€5.375,10
Original price
€5.375,10
Current price
€5.106,35
€5.106,35
-
€5.106,35
Current price
€5.106,35
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Draw-in rod | M 16 |
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 1060 mm |
| Column diameter | 115 mm |
| Width/depth (product) approx. | 745 mm |
| Height (product) approx. | 2090 mm |
| Net weight approx. | 370 kg |
| Drilling performance | |
| Drilling performance steel (S235JR) | 32 mm |
| Continuous drilling performance steel (S235JR) | 25 mm |
| Thread tapping steel (S235JR) | M 16 |
| Max. shaft milling cutter size | 25 mm |
| Max. sensor head size | 76 mm |

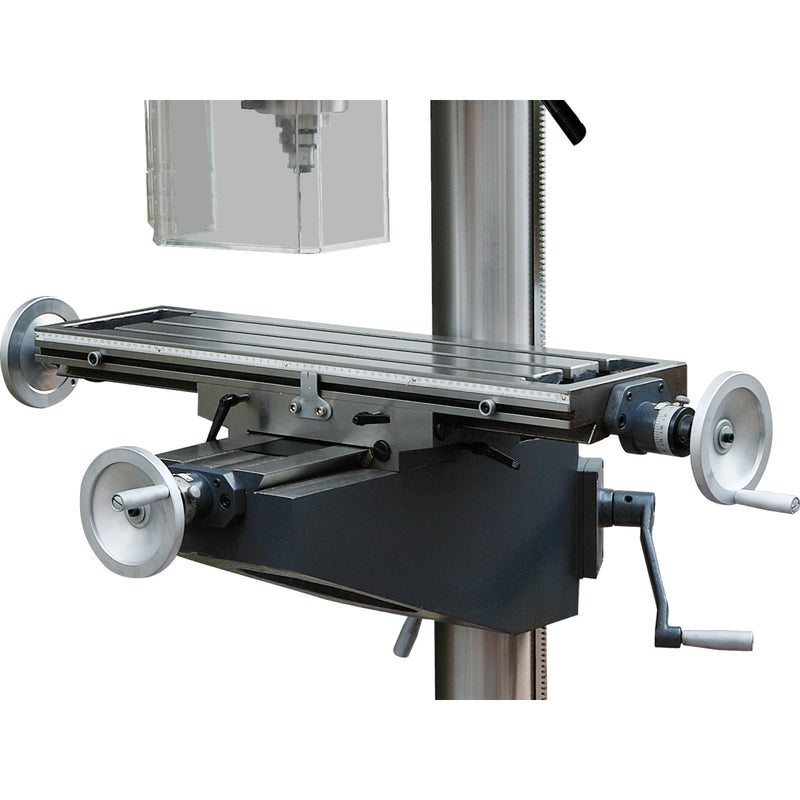

| Drilling table | |
| Drilling table workspace length | 730 mm |
| Drilling table workspace width | 210 mm |
| Drilling table T-groove size | 14 mm |
| Drilling table T-groove number | 3 |
| Drilling table T-groove spacing | 63 mm |
| Drilling table load bearing capacity | 50 kg |
| Max. distance spindle - drilling table | 600 mm |
| Speed range | |
| Speed range | 95 - 3200 min¯¹ |
| Number of gears | 2 x 6 Steps |
| Electrical Data | |
| Drive motor output | 1.1 / 1.5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine base | |
| Max. distance spindle - machine base | 1180 mm |
| Machine base workspace length | 495 mm |
| Machine base workspace width | 375 mm |
| Machine base T-groove size | 14 mm |
| Machine base T-groove number | 2 |
| Machine base T-groove spacing | 230 mm |
| Machine base length | 495 mm |
| Machine base width | 375 mm |
| Spindle | |
| Quill stroke | 120 mm |
| Quill diameter | 75 mm |
| Spindle chuck | MT 4 |
| Reach | 280 mm |
| Drilling head rotation | 360 ° |

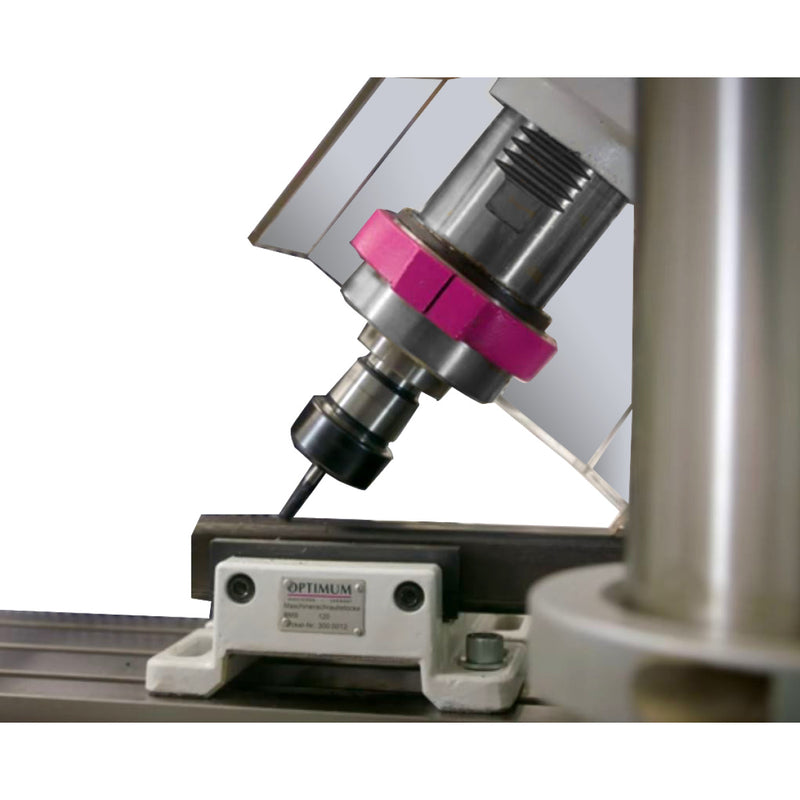

| Drilling head angle | 45 ° |
| Quill feed | automatic |
| Quill feed speed | 0.1 / 0.18 / 0.26 mm/rev |
| Drilling head height adjustment | 260 mm |
| Travel | |
| Travel X axis manual | 480 mm |
| Travel Y axis manual | 180 mm |
| Travel Z axis manual | 560 mm |
- Tooth ring drill chuck 1 - 13 mm / B 18
- T-slot nuts
- Reducing sleeve MK 4 - MK 3
- Holding mandrel MK 4 / B16
- Operating tool
- EAN: 4030635047824
- Custom Number: 84592900
- Comprimento: 950 mm
- Altura: 1890 mm
- Largura: 760 mm
- Peso Bruto: 400 kg
- Peso Líquido: 370
Estimated shipping time: 48-72 hours
