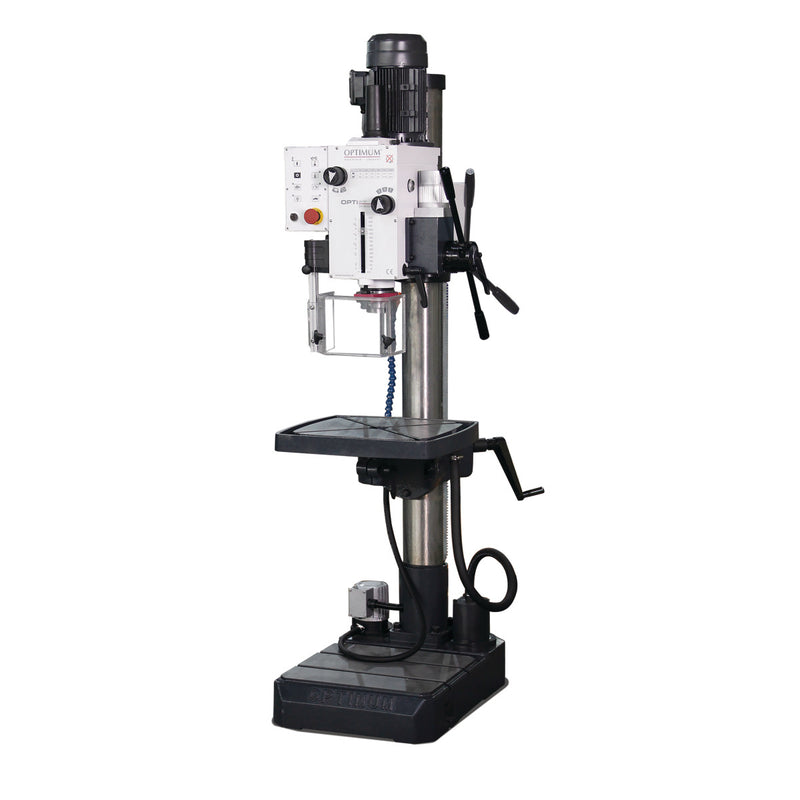

Optimum (3035357) Universal pillar gear drill OPTIdrill DH 40GPE
SKU 3035357
Original price
€5.498,10
Original price
€5.498,10
-
Original price
€5.498,10
Original price
€5.498,10
Current price
€5.223,20
€5.223,20
-
€5.223,20
Current price
€5.223,20
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 595 mm |
| Column diameter | 115 mm |
| Width/depth (product) approx. | 700 mm |
| Height (product) approx. | 2050 mm |
| Net weight approx. | 335 kg |
| Equipment | |
| Work light | LED |
| Drilling performance | |
| Drilling performance steel (S235JR) | 32 mm |
| Continuous drilling performance steel (S235JR) | 28 mm |
| Drilling table | |
| Drilling table workspace length | 500 mm |
| Drilling table workspace width | 460 mm |
| Drilling table T-groove type | diagonal |
| Drilling table T-groove size | 14 mm |
| Drilling table rotation | 360 ° |
| Drilling table angle | 90 ° |
| Max. distance spindle - drilling table | 785 mm |
| Speed range | |
| Speed range | 95 - 3200 min¯¹ |
| Number of gears | 2 x 6 Steps |
| Electrical Data | |
| Total rated value | 1,1 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Machine base | |
| Max. distance spindle - machine base | 1210 mm |
| Machine base workspace length | 420 mm |
| Machine base workspace width | 410 mm |
| Machine base T-groove size | 14 mm |
| Spindle | |
| Quill stroke | 120 mm |
| Quill diameter | 75 mm |
| Spindle chuck | MT 4 |
| Reach | 280 mm |
| Quill feed | automatic |
| Quill feed speed | 130 mm/min |
- Gear rim drill chuck 1-13 mm/B16
- T-nuts
- Adapter MT4-MT3
- arbor MT4/B16
- EAN: 4030635050213
- Custom Number: 84593900
- Comprimento: 1577 mm
- Altura: 844 mm
- Largura: 864 mm
- Peso Bruto: 363 kg
- Peso Líquido: 318
Estimated shipping time: 48-72 hours
