Optimum (3101575) Universal grinding machine OPTIgrind GU 20S (400V)

Name: Optimum (3101575) Universal grinding machine OPTIgrind GU 20S (400V)
Brand: Optimum
SKU: 3101575
Price: 531.67 EUR
Availability: InStock

SKU 3101575

€559,65

€559,65 - €559,65

€559,65

€531,67

€531,67 - €531,67

€531,67

VAT Included

0% VAT for Businesses with an EU VAT Number! Available during checkout.

Robust and stable universal grinding machines with abrasive belt and grinding wheel for a wide range of materials
Heavy, durable industrial design with maintenance-free motor
Housing made of extruded aluminum
Large, heavy mounting flanges and thus high disc concentricity
Sanding attachment with graphite coating; prevents friction and heat
Stop allows quick and easy sanding of workpieces
Tape adjustment without tools - only adjustable with a handle screw
Universal corundum grinding wheel and sanding belt in the standard scope of delivery

Dimensions and weights

Length (product) approx.	501 mm
Width/depth (product) approx.	261 mm
Height (product) approx.	459 mm
Net weight approx.	20,7 kg


Electrical Data
Drive motor output	0,6 kW
Supply voltage	400 V
Mains frequency	50 Hz

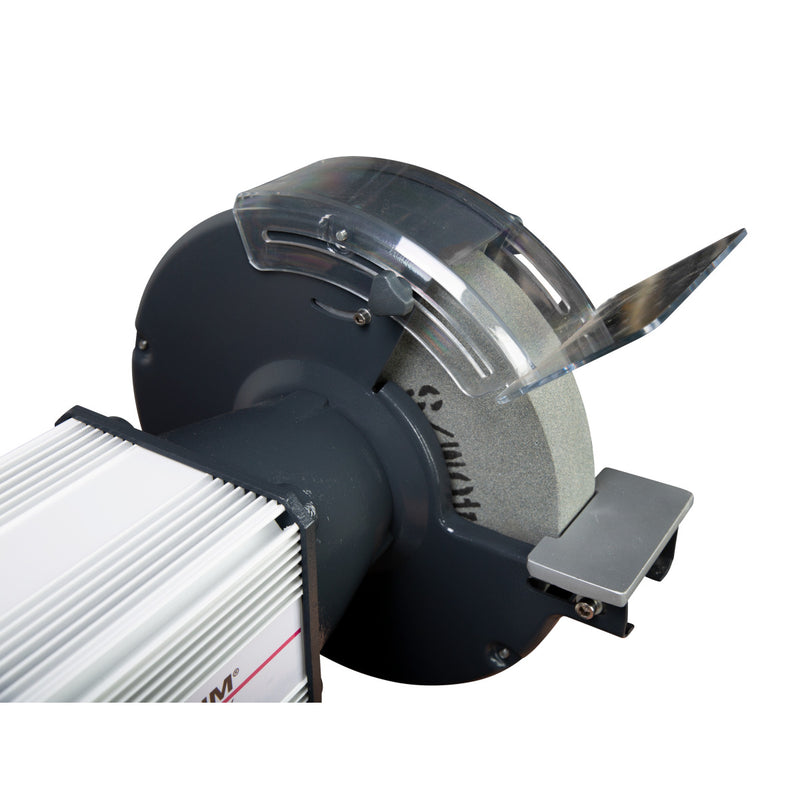

Grinding wheel(s)
Grinding disc external diameter	200 mm
Grinding disc width	30 mm
Grinding disc drill hole	32 mm
Speed	2850 min¯¹

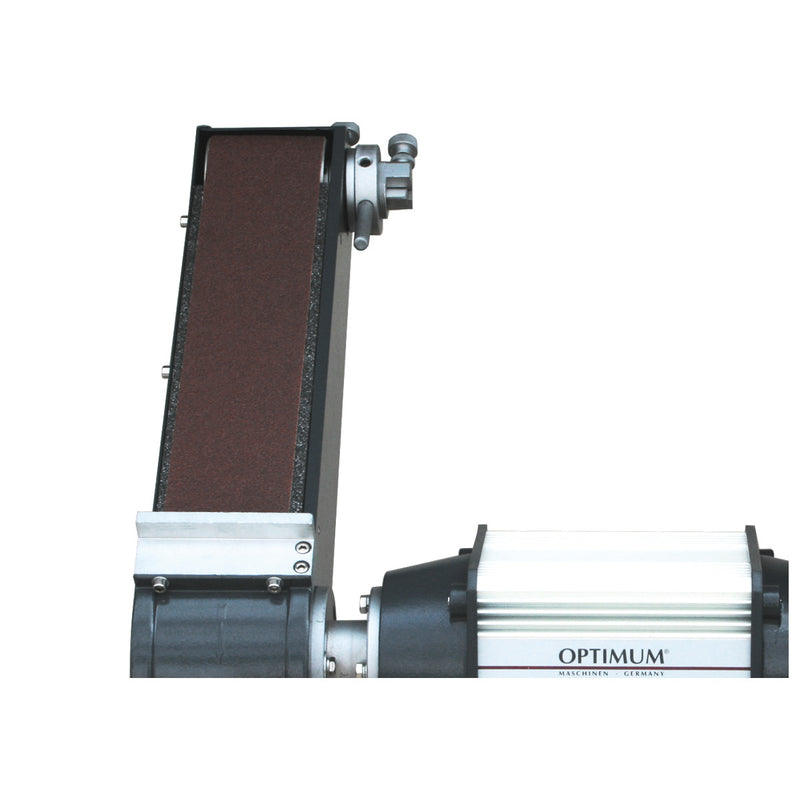

Sanding attachment
Grinding belt length	762 mm
Grinding belt width	75 mm
Grinding attachment swivel range	90 °
Extraction duct nominal width	32 mm
Grinding support length	180 mm
Grinding support width	87 mm

Grinding wheel normal corundum fine K80
Sanding belt normal corundum fine K80

EAN: 4030635028885
Custom Number: 84602990
Comprimento: 665 mm
Altura: 382 mm
Largura: 577 mm
Peso Bruto: 24 kg
Peso Líquido: 20.7
