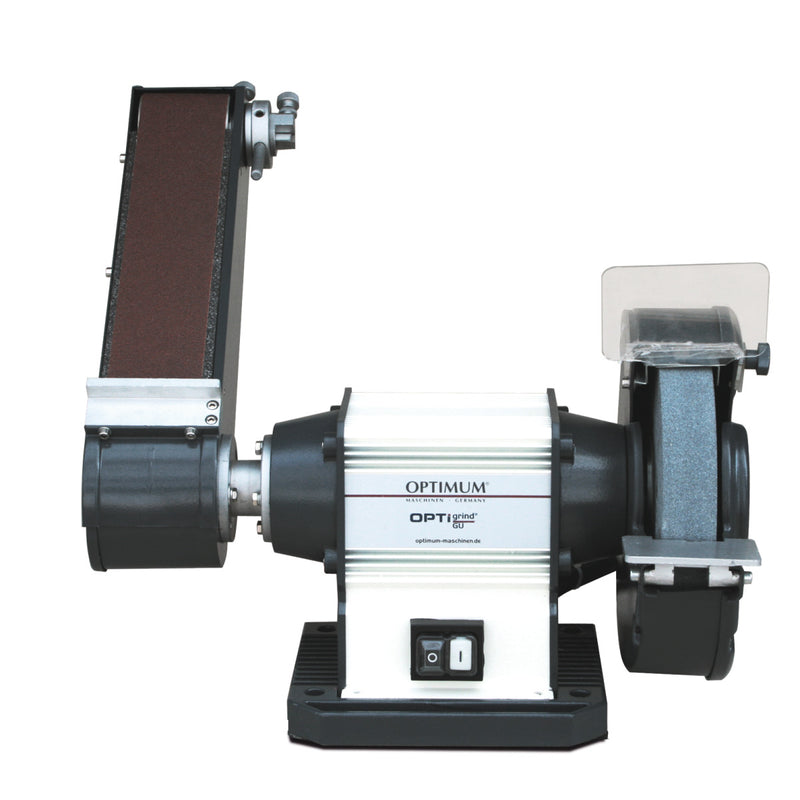

Optimum (3101580) Universal grinding machine OPTIgrind GU 25S

Name: Optimum (3101580) Universal grinding machine OPTIgrind GU 25S
Brand: Optimum
SKU: 3101580
Price: 695.26 EUR
Availability: InStock

SKU 3101580

€731,85

€731,85 - €731,85

€731,85

€695,26

€695,26 - €695,26

€695,26

VAT Included

0% VAT for Businesses with an EU VAT Number! Available during checkout.

Robust and stable universal grinding machines with abrasive belt and grinding wheel for a wide range of materials
Heavy, durable industrial design with maintenance-free motor
Housing made of extruded aluminum
Large, heavy mounting flanges and thus high disc concentricity
Sanding attachment with graphite coating; prevents friction and heat
Stop allows quick and easy sanding of workpieces
Tape adjustment without tools - only adjustable with a handle screw
Universal corundum grinding wheel and sanding belt in the standard scope of delivery

Workpiece support

Stable
Adjustable

Dimensions and weights

Length (product) approx.	514 mm
Width/depth (product) approx.	319 mm
Height (product) approx.	596 mm
Net weight approx.	31.5 kg


Electrical Data
Drive motor output	1,5 kW
Supply voltage	400 V
Mains frequency	50 Hz


Grinding wheel(s)
Grinding disc external diameter	250 mm
Grinding disc width	40 mm
Grinding disc drill hole	32 mm
Speed	2850 min¯¹


Sanding attachment
Grinding belt length	1016 mm
Grinding belt width	75 mm
Grinding attachment swivel range	90 °
Extraction duct nominal width	32 mm
Grinding support length	305 mm
Grinding support width	87 mm

Grinding wheel normal corundum fine K80
Sanding belt normal corundum fine K80

EAN: 4030635028892
Custom Number: 84602990
Comprimento: 665 mm
Altura: 382 mm
Largura: 577 mm
Peso Bruto: 34.5 kg
Peso Líquido: 31.5

View Catalog

Estimated shipping time: 48-72 hours
