Optimum (3338460) Drilling-milling machine OPTImill MB 4P
SKU 3338460
Original price
€10.295,10
Original price
€10.295,10
-
Original price
€10.295,10
Original price
€10.295,10
Current price
€9.780,35
€9.780,35
-
€9.780,35
Current price
€9.780,35
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 1600 mm |
| Width/depth (product) approx. | 930 mm |
| Height (product) approx. | 2110 mm |
| Net weight approx. | 495 kg |
| Equipment | |

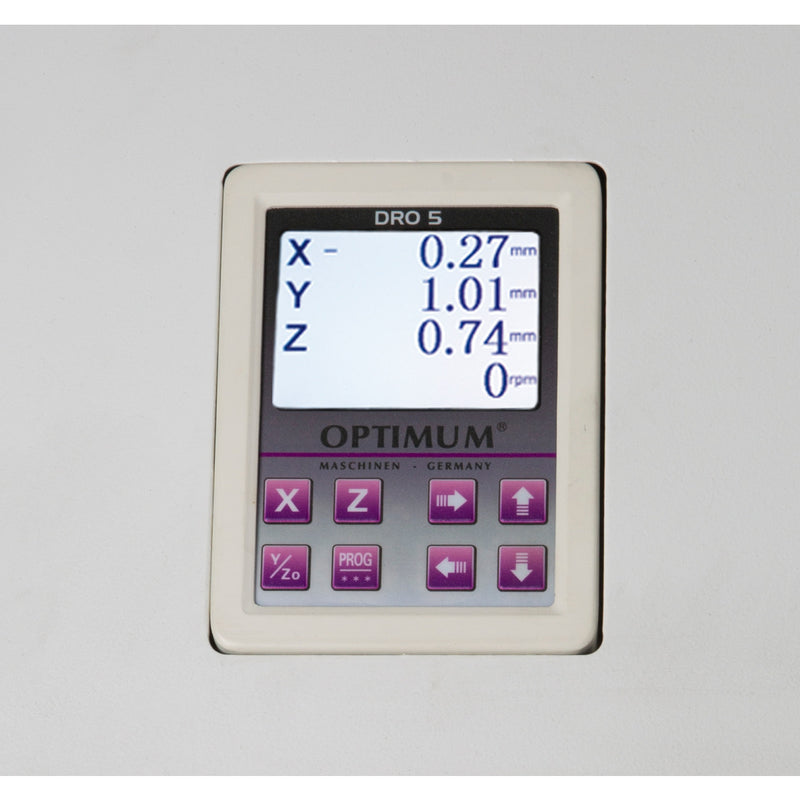

| Digital position indicator | DRO 5 |
| Drilling/milling output | |
| Max. size milling head | 63 mm |
| Max. size shaft milling cutter | 28 mm |
| Drilling performance steel (S235JR) | 32 mm |
| Continuous drilling performance steel (S235JR) | 28 mm |
| Electrical Data | |
| Drive motor output | 1,1 / 1,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Milling table horizontal | |
| Horizontal milling table length | 800 mm |
| Horizontal milling table width | 240 mm |
| Max. clearance vertical spindle - horizontal milling table | 420 mm |
| Horizontal milling table T-groove size | 14 mm |
| Horizontal milling table T-groove number | 3 |
| Horizontal milling table T-groove spacing | 80 mm |
| Cooling lubricant system | |
| Coolant pump(s) drive power | 100 W |
| Standards and certifications | |
| Standard | DIN EN 55011 |
| Travel | |
| Travel X axis manual | 560 mm |
| Travel Y axis manual | 195 mm |
| Travel Z axis manual | 350 mm |

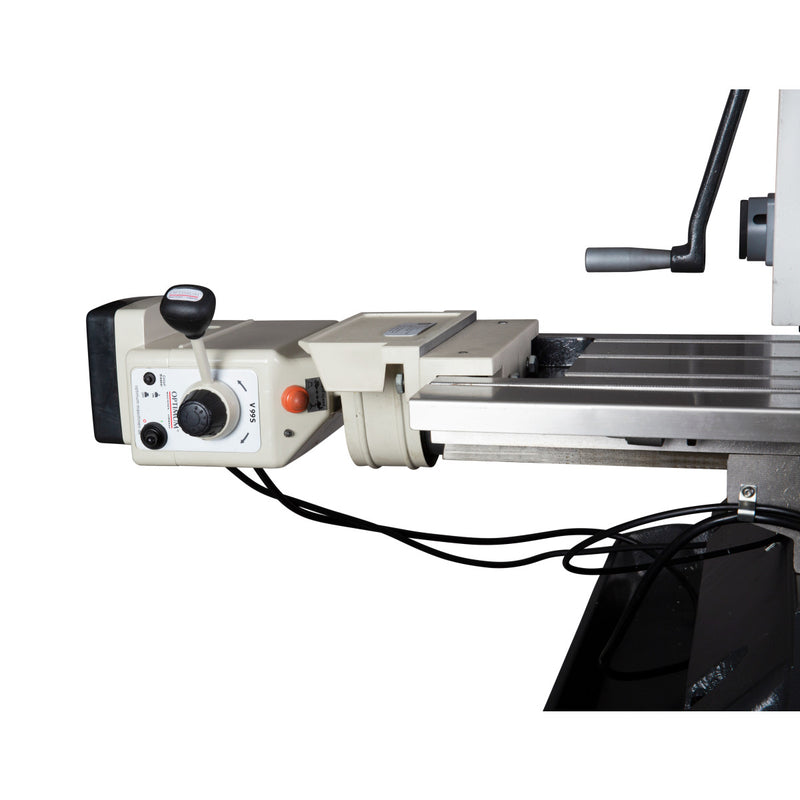

| Travel X axis automatic | 480 mm |

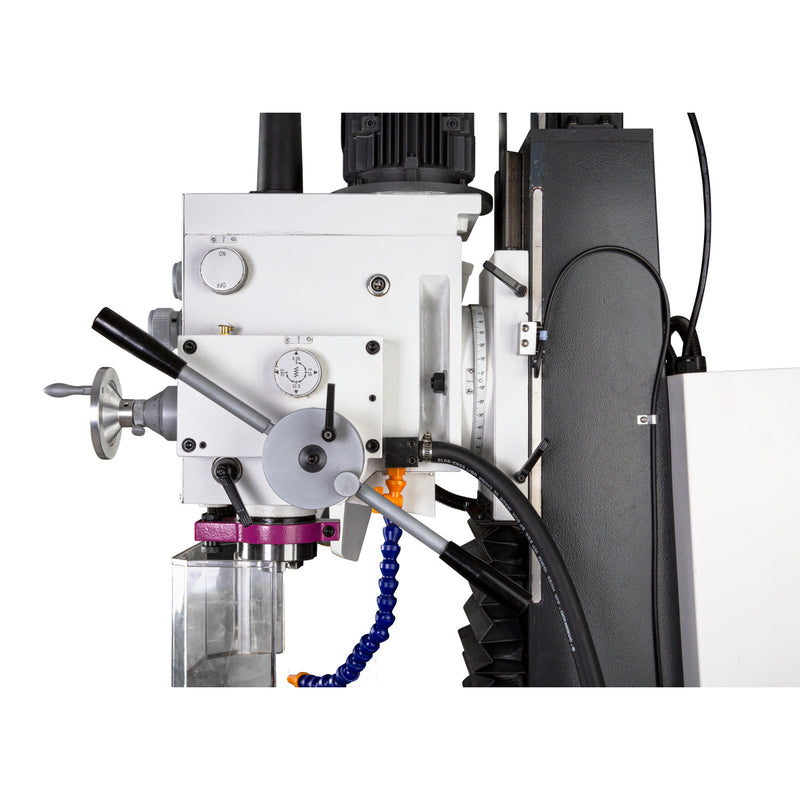

| Vertical spindle | |
| Vertical spindle reach | 258 mm |
| Vertical spindle spindle chuck | MT 4 |
| Vertical spindle speed range | 95 – 3200 min¯¹ |
| Vertical spindle swivel range milling cutter head Z - X plane | ± 45 ° |
| Vertical spindle number of gears | 2 x 6 |
| Vertical spindle quill diameter | 75 mm |
| Vertical spindle tightening bar | M 16 |
| Vertical spindle quill stroke | 120 mm |
- substructure
- Morse cone MK 3
- Adapter MK 3 - MK 4
- Pulling rod M 16
- operating tool
- EAN: 4030635022104
- Custom Number: 84593900
- Comprimento: 1240 mm
- Altura: 2160 mm
- Largura: 950 mm
- Peso Bruto: 500 kg
- Peso Líquido: 400
