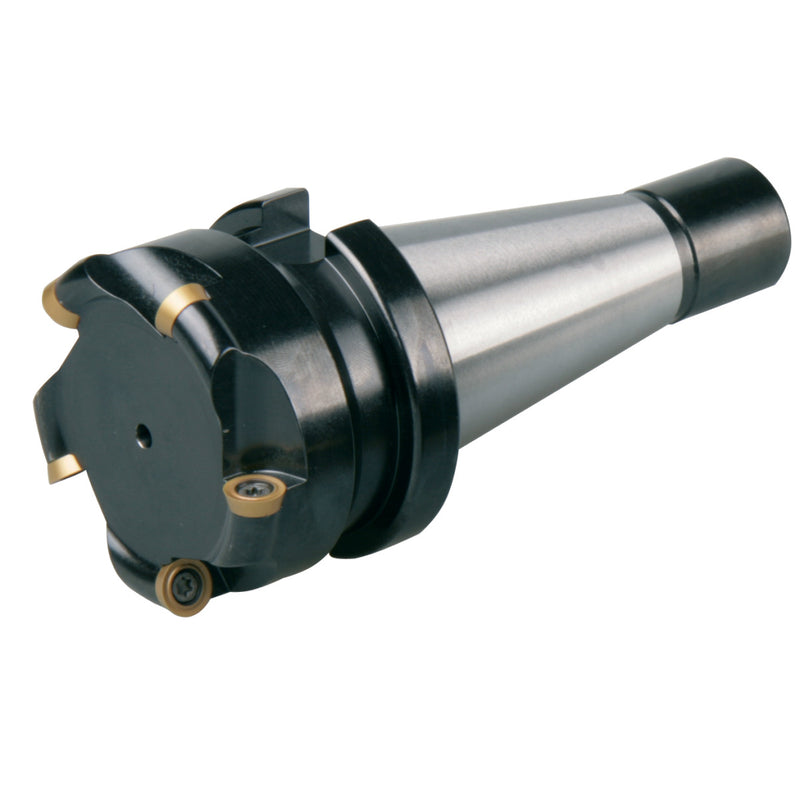

Optimum (3350215) Copy and face milling cutter Shank ISO 30

Name: Optimum (3350215) Copy and face milling cutter Shank ISO 30
Brand: Optimum
SKU: 3350215
Price: 362.24 EUR
Availability: InStock

SKU 3350215

€381,30

€381,30 - €381,30

€381,30

€362,24

€362,24 - €362,24

€362,24

VAT Included

0% VAT for Businesses with an EU VAT Number! Available during checkout.

For face and copy milling
Made of special steel - highly tempered
High axial and radial run-out accuracy
Milling body with uneven pitch for particularly smooth running and even cutting
Base body and clamping shank form a single unit, resulting in a short overhang length and stable clamping
No additional milling cutter arbor is used
Special geometry for milling at high speed
Economical, as the insert can simply be turned further when the cutting edge is blunt (can be used up to twelve times)
Indexable inserts Ø 10 mm

Number of cutting edges	5
Outer diameter	52 mm
Mounting shaft	ISO 30
Indexable inserts	10 mm
ISO designation	RD X 1003 D52/R5

5 inserts RDET 1003 MOSN 8026
Hexalobular socket M6

EAN: 4030635013218
Custom Number: 82077037
Comprimento: 60 mm
Altura: 120 mm
Largura: 60 mm
Peso Bruto: 0.7 kg
Peso Líquido: 0.7

View Catalog

Estimated shipping time: 48-72 hours
