Holzstar (5906016) Slot Mortising Machine LLB 16 PB (230V)

Product Overview:

• Equipment for DIY.

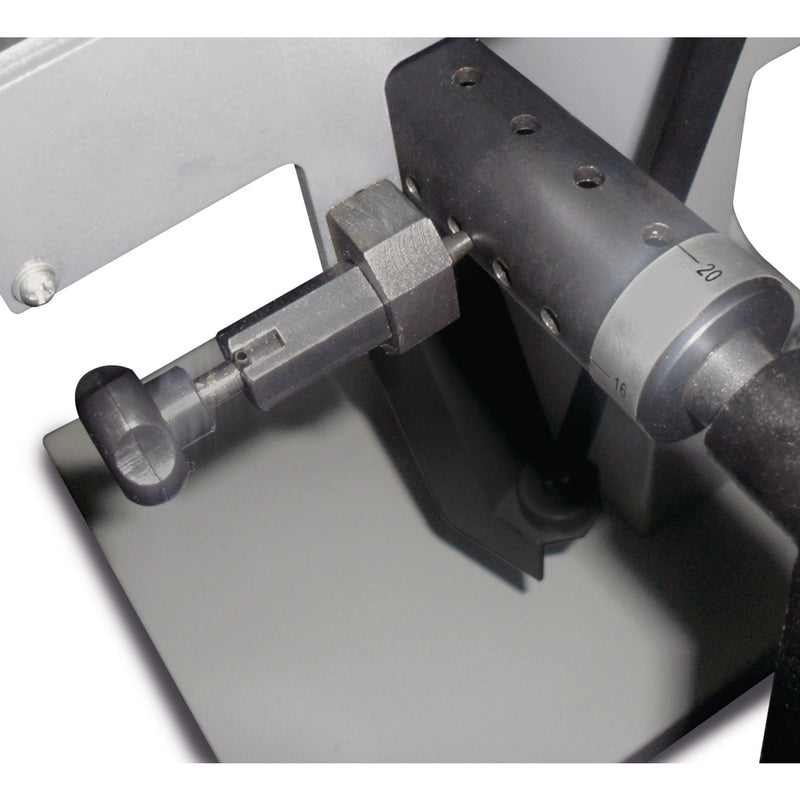

• Serial drilling possible with dowel boring device with ratchet pitch 16/22/25/32 mm.

• Wescott drill chuck 0 - 16 mm standard.

• Right-left rotation.

• Powerful motor.

• Simple one-hand lever operation of the workbench for fast and precise drilling.

• Roller guide enables precise working table operation.

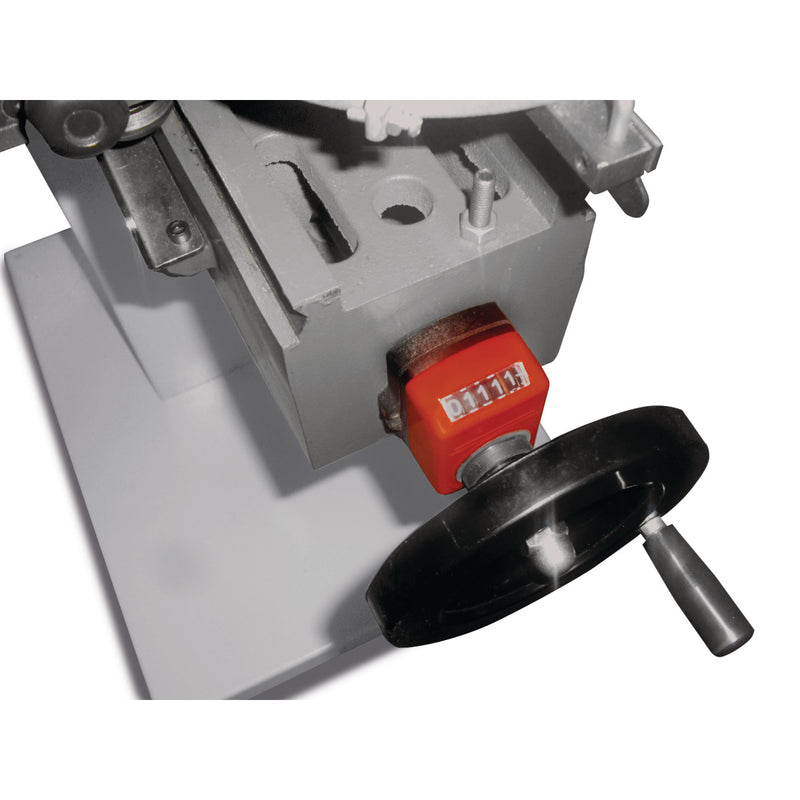

• Convenient, exact table height adjustment with numeric display.

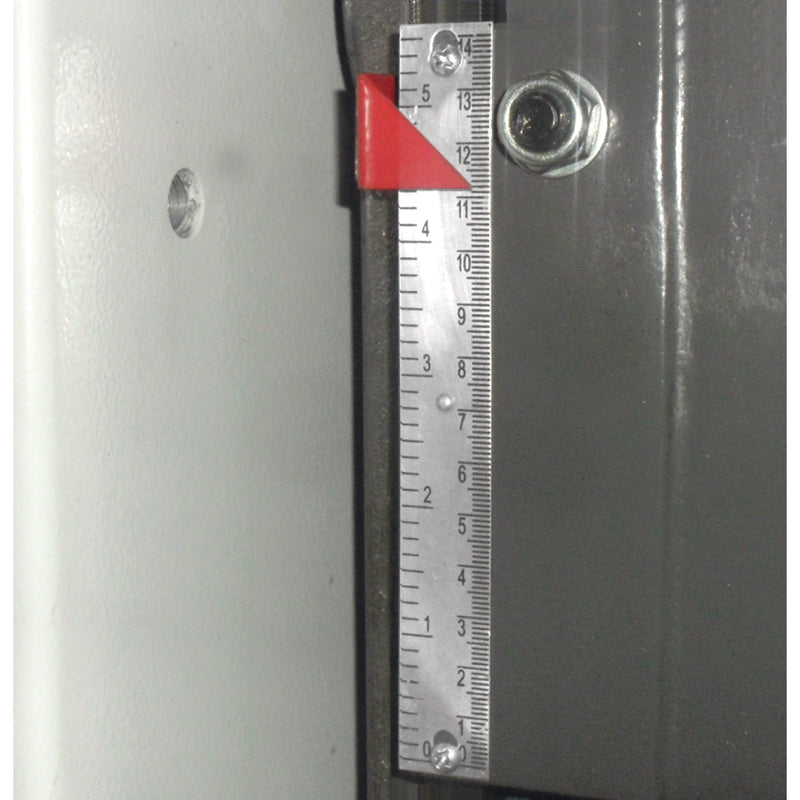

• Adjusted working table height additionally readable by scale.

• An eccentric clamp for different workpiece fixation in scope of delivery.

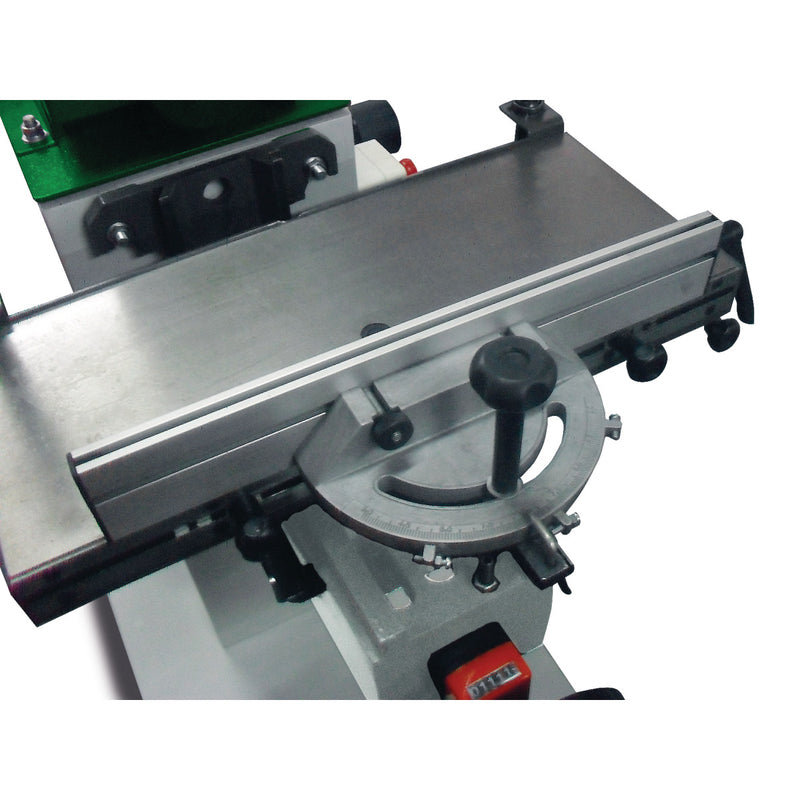

• Angle stop adjustable on both sides by 60°.

• Underfloor equipped with large, lockable tool compartment.

Technical Details:

• Drilling width: 300 mm

• Max. drilling depth at 90°: 140 mm

• Work table height adjustment: 150 mm

• Work table length: 500 mm

• Work table width: 207 mm

• Tool clamping diameter: 0 - 16 mm

• Spindle speed(s): 2850 min¯¹

• Extraction port diameter: 100 mm

• Length (product) approx.: 905 mm

• Width/depth (product) approx.: 710 mm

• Height (product) approx.: 1230 mm

• Net weight approx.: 108 kg

• Supply voltage: 230 V

• Mains frequency: 50 Hz

• Drive motor output: 1,5 kW

Includes:

• Eccentric clamp

• Angle stop ± 60° with ruler

Optional Accessories:

• Table Extensions (LLB 20 PB) 5916020

• Hollow chisel 6.35 mm (1/4") 5916100

• Hollow chisel 8 mm (5/16") 5916101

• Hollow chisel 9.5 mm (3/8") 5916102

• Hollow chisel 12.7 mm (1/2") 5916103

• 5-piece drill bit set, left 5333681

• 5-piece drill bit set, right 5333682

• Universal mobile base UF 230 6190230
