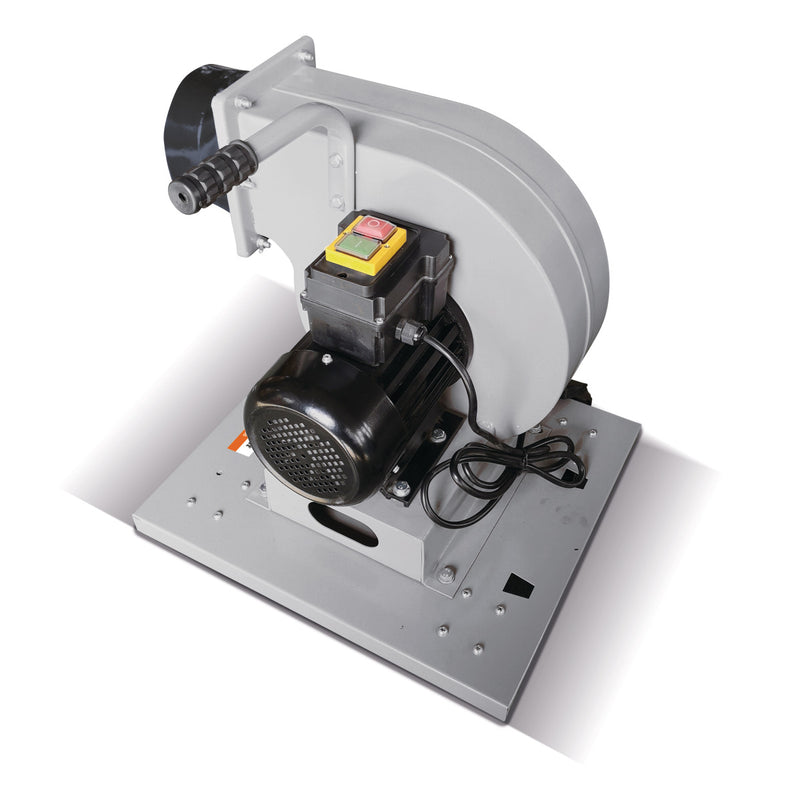

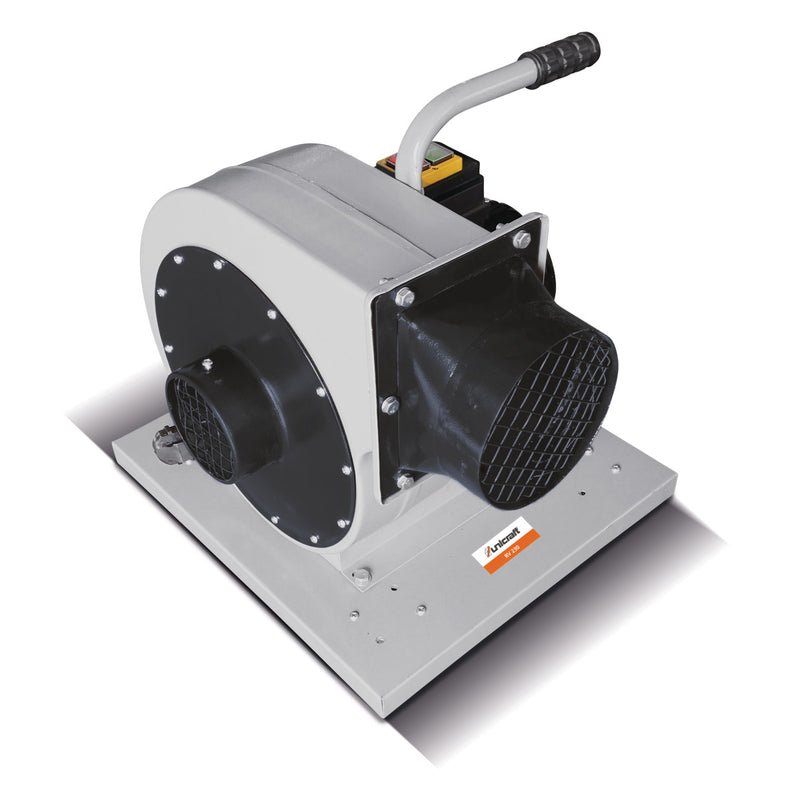

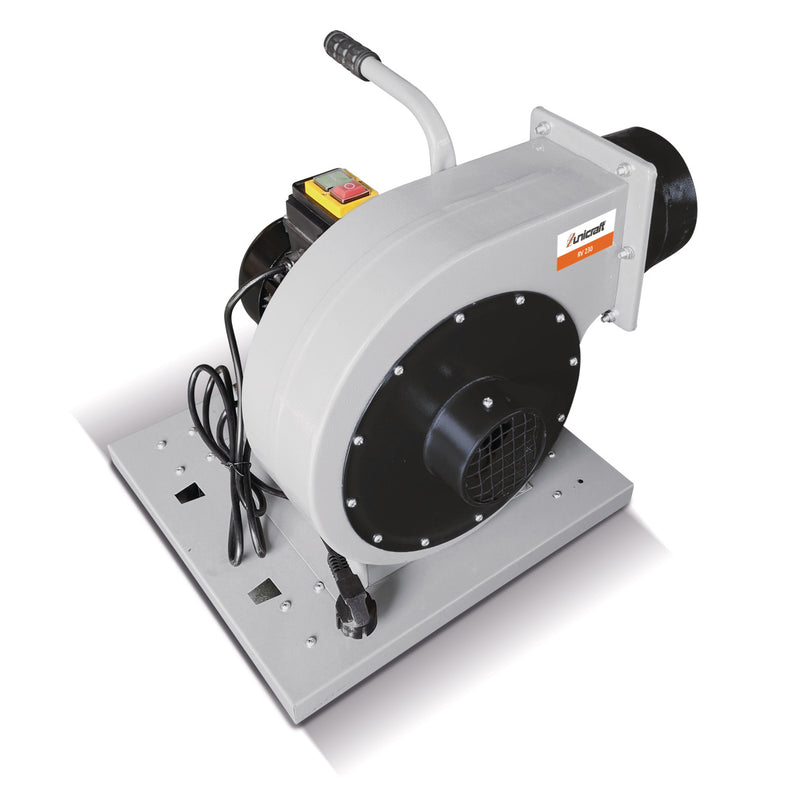

Unicraft (6264230) Centrifugal fan RV 230
SKU 6264230
Original price
€306,27
Original price
€306,27
-
Original price
€306,27
Original price
€306,27
Current price
€290,96
€290,96
-
€290,96
Current price
€290,96
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 475 mm |
| Outlet dimensions | 125 mm |
| Width/depth (product) approx. | 393 mm |
| Diameter intake | 100 mm |
| Height (product) approx. | 421 mm |
| Impeller diameter | 230 mm |
| Net weight approx. | 15 kg |
| Electrical Data | |
| Absorbed power drive motor | 0.75 kW |
| Supply voltage | 230 V |
| Delivery power | 0.55 kW |
| Duty type drive motor | S1 |
| Mains frequency | 50 Hz |
| Protection class drive motor | IP54 |
| Engine efficiency | 73 % |
| Motor speed | 2850 min¯¹ |
| Total current draw | 3.3 A |
| Device data | |
| Max. air flow | 888 m³/h |
| Air speed | 32 m/s |
| Noise emission | |
| Noise level | 80 dB(A) |
- EAN: 4036351295280
- Custom Number: 84145925
- Comprimento: 440 mm
- Altura: 420 mm
- Largura: 410 mm
- Peso Bruto: 16 kg
- Peso Líquido: 15 kg
