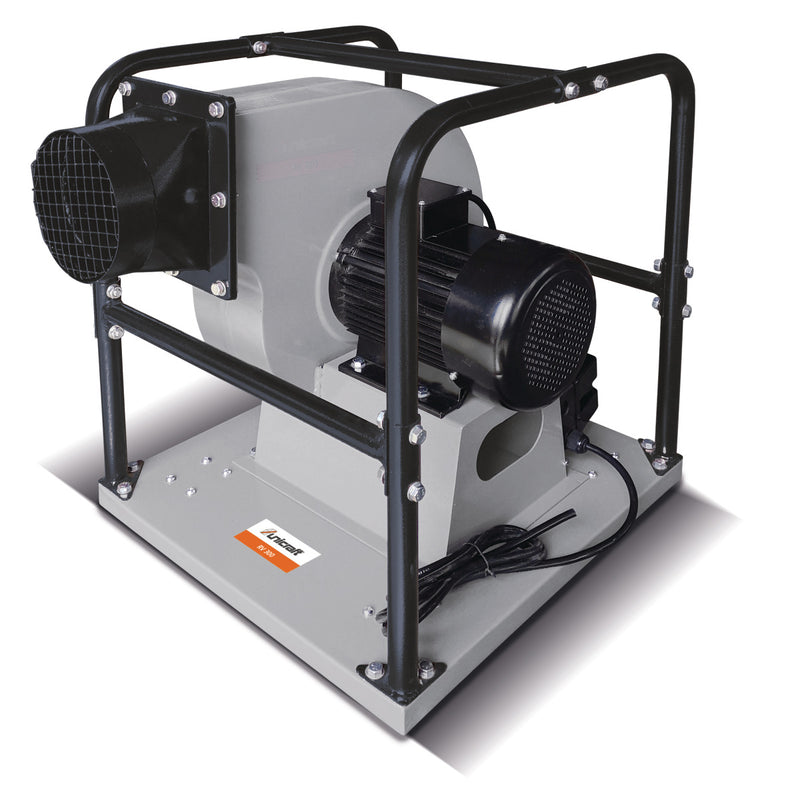

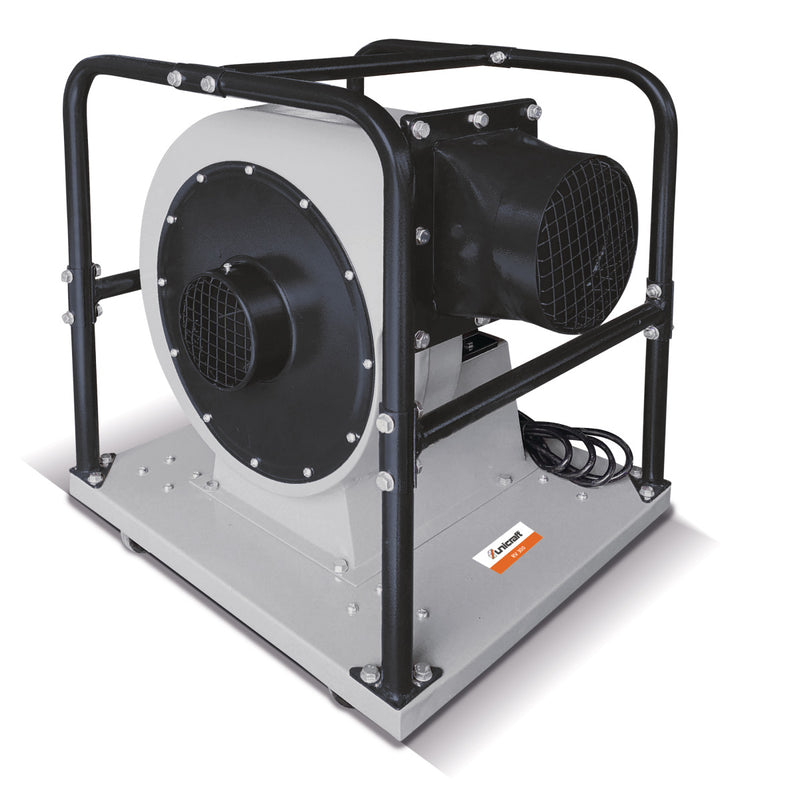

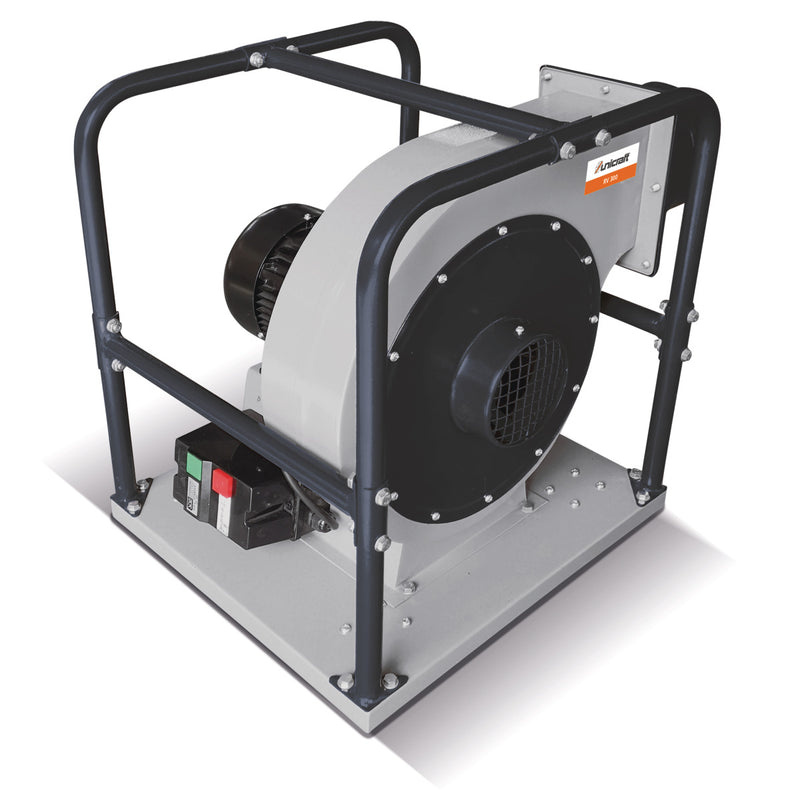

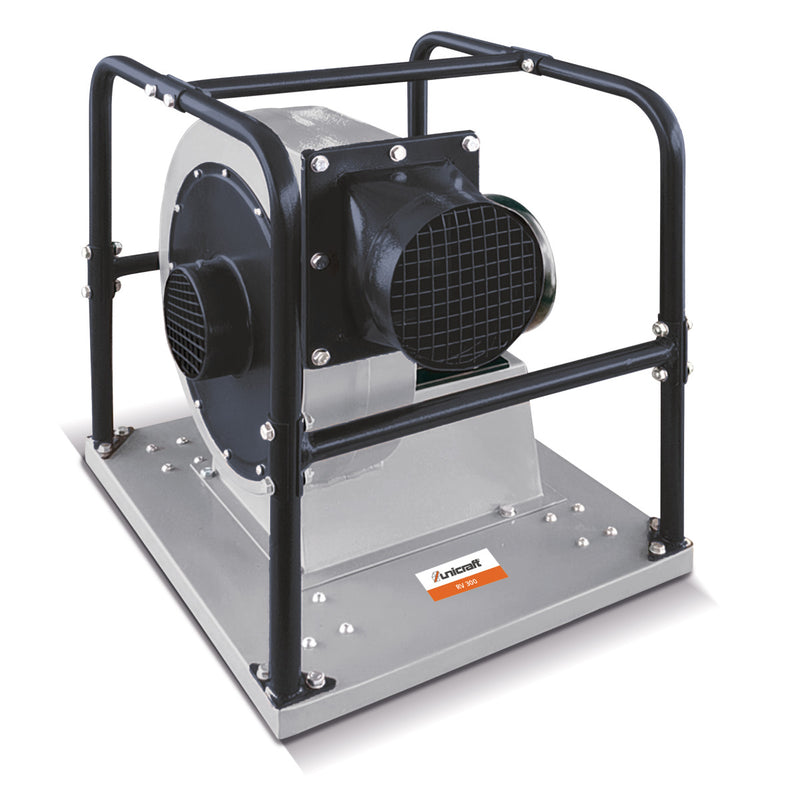

Unicraft (6264300) Centrifugal fan RV 300
SKU 6264300
Original price
€686,34
Original price
€686,34
-
Original price
€686,34
Original price
€686,34
Current price
€652,02
€652,02
-
€652,02
Current price
€652,02
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 600 mm |
| Outlet dimensions | 150 mm |
| Width/depth (product) approx. | 460 mm |
| Diameter intake | 125 mm |
| Height (product) approx. | 595 mm |
| Impeller diameter | 300 mm |
| Net weight approx. | 30 kg |
| Electrical Data | |
| Absorbed power drive motor | 1.5 kW |
| Supply voltage | 230 V |
| Delivery power | 1.1 kW |
| Duty type drive motor | S1 |
| Mains frequency | 50 Hz |
| Protection class drive motor | IP54 |
| Engine efficiency | 73 % |
| Motor speed | 2850 min¯¹ |
| Total current draw | 6.5 A |
| Device data | |
| Max. air flow | 1914 m³/h |
| Air speed | 41 m/s |
| Noise emission | |
| Noise level | 87 dB(A) |
- EAN: 4036351295297
- Custom Number: 84145925
- Comprimento: 560 mm
- Altura: 610 mm
- Largura: 530 mm
- Peso Bruto: 32.5 kg
- Peso Líquido: 30 kg
Estimated shipping time: 48-72 hours
