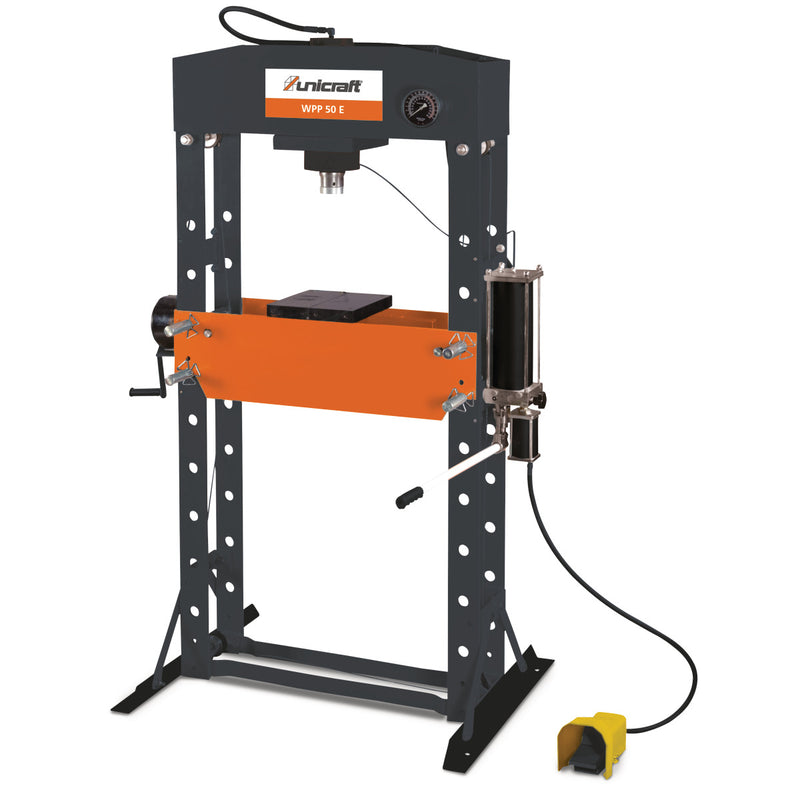

Unicraft (6300050) Hydraulic workshop press WPP 50 E
SKU 6300050
Original price
€3.073,77
Original price
€3.073,77
-
Original price
€3.073,77
Original price
€3.073,77
Current price
€2.920,08
€2.920,08
-
€2.920,08
Current price
€2.920,08
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Pressure force | 50 t |
| Piston stroke | 200 mm |
| Piston travel | 245 mm |
| Piston stroke per pumping operation footpedal | 2.08 mm |
| Piston speed with foot pedal | 1.33 mm/s |
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 1030 mm |
| Width/depth (product) approx. | 800 mm |
| Height (product) approx. | 1877 mm |
| Net weight approx. | 302.5 kg |
| Width/depth of machine feet | 800 mm |
| Frame depth | 207 mm |
| Hole spacing for table height adjustment | 140 mm |
| Clear height max. | 1048 mm |
| Clear height min. | 69 mm |
| Clear width | 730 mm |
| Diameter piston rod | 75 mm |
| Hydraulic system | |
| Hydraulic oil tank capacity | 1.8 l |
| Pneumatic connection | |
| Air consumption approx. | 200 l/min |
| Pneumatic operating pressure | 7.5 ? 8.5 bar |
- EAN: 4036351032915
- Custom Number: 84626190
- Comprimento: 975 mm
- Altura: 211 mm
- Largura: 315 mm
- Peso Bruto: 345 kg
- Peso Líquido: 302.5 kg
Estimated shipping time: 48-72 hours
