Unicraft (6301076) Electro-hydraulic workshop press WPP 75 HMC
SKU 6301076
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Pressure force | 75 t |
| Piston stroke | 250 mm |
| Piston travel | 260 mm |
| Press speed | 7 mm/s |
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 1146 mm |
| Width/depth (product) approx. | 800 mm |
| Height (product) approx. | 1925 mm |
| Net weight approx. | 418 kg |
| Frame depth | 800 mm |
| Hole spacing for table height adjustment | 217 mm |
| Min. installation height | 102 mm |
| Clear height max. | 884 mm |
| Clear height min. | 169 mm |
| Clear width | 800 mm |
| Diameter piston rod | 93 mm |
| Electrical Data | |
| Drive motor output | 1,5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Motor speed | 1400 min¯¹ |
| Hydraulic system | |
| Hydraulic oil tank capacity | 22 l |

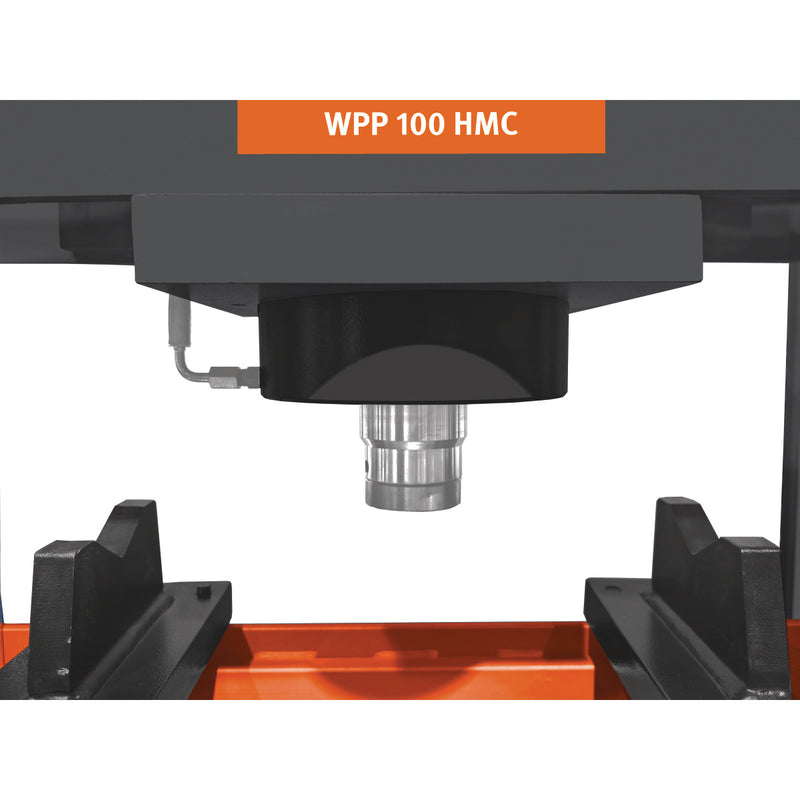

- Two prism blocks for inserting round material
- Supplied without hydraulic oil
- EAN: 4036351345336
- Custom Number: 84626190
- Comprimento: 1090 mm
- Altura: 2040 mm
- Largura: 325 mm
- Peso Bruto: 463 kg
- Peso Líquido: 418 kg
