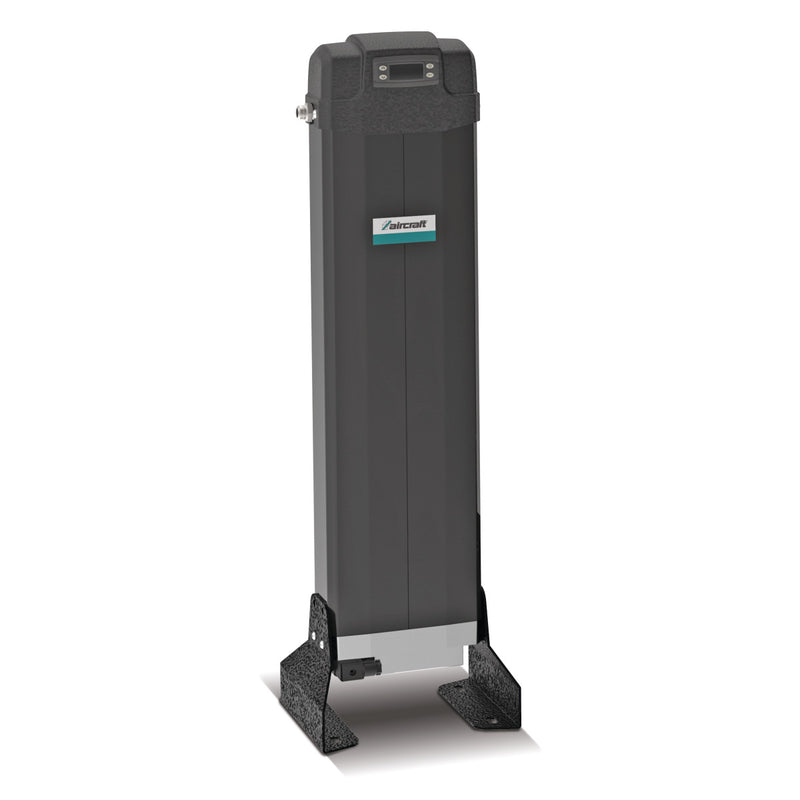

(2048502) Adsorption dryer AAD 15
SKU 2048502
Original price
€1.782,27
Original price
€1.782,27
-
Original price
€1.782,27
Original price
€1.782,27
Current price
€1.693,16
€1.693,16
-
€1.693,16
Current price
€1.693,16
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
- Reliable drying of compressed air
- Electronic control with power display
- Display of cycle duration and cycle phase (drying / regeneration)
- Simple operation of the control system
- Easy to maintain
- Housing made of anodised aluminium
- Low noise emission of maximum 75 dB(A)
- Flexible connection options on the left or right side of the housing
| Air flow m³/h | 15 m³/h |
| Maximum pressure | 14 bar |
| Min. operating pressure | 4 bar |
| Air connection | G ? " |
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 238 mm |
| Width/depth (product) approx. | 212 mm |
| Height (product) approx. | 823 mm |
| Net weight approx. | 16 kg |
| Electrical Data | |
| Supply voltage | 230 V |
| Mains frequency | 50 ? 60 Hz |
| Reference conditions as per DIN ISO 7183 | |
| Pressure dew point tpd | -40 °C |
- EAN: 4036351309444
- Custom Number: 84193900
- Comprimento: 850 mm
- Altura: 270 mm
- Largura: 270 mm
- Peso Bruto: 18 kg
- Peso Líquido: 16 kg
Estimated shipping time: 48-72 hours
