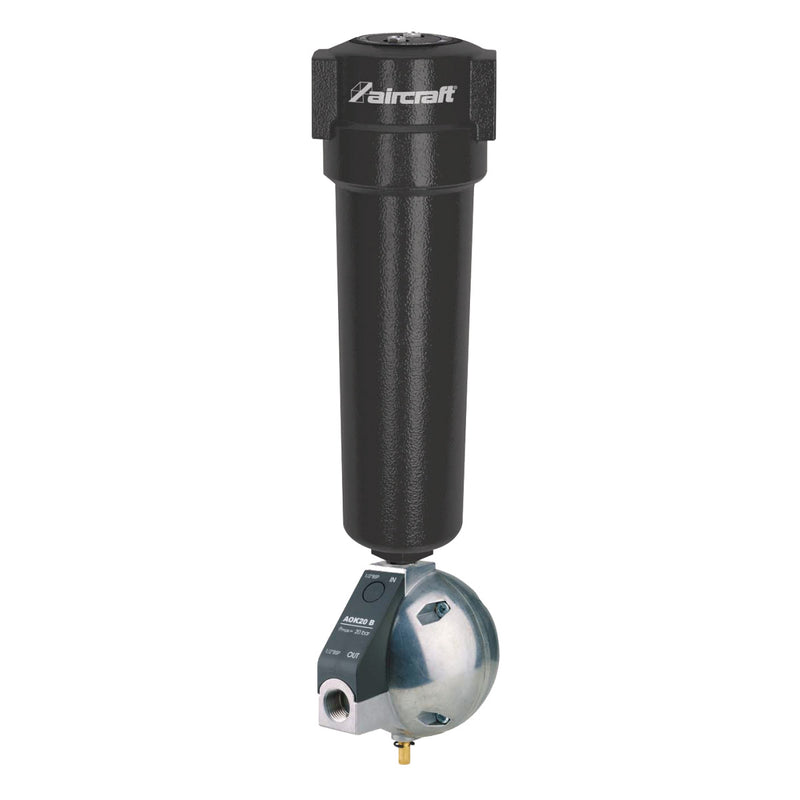

(2053012) Cyclone separator ACKL 0155B

Name: (2053012) Cyclone separator ACKL 0155B
Brand: Aircraft
SKU: 2053012
Price: 213.54 EUR
Availability: InStock

SKU 2053012

€224,78

€224,78 - €224,78

€224,78

€213,54

€213,54 - €213,54

€213,54

VAT Included

0% VAT for Businesses with an EU VAT Number! Available during checkout.

For highly efficient separation of large quantities of condensate from compressed air and vacuum systems
Filter housing made of aluminum and anodized inside
Separation of condensate (water, oil) and dirt particles by centrifugal acceleration of the compressed air
The condensate drain with float valve is used to separate the condensate from the water separator
Electronic condensate drain can be retrofitted

Dimensions and weights
Volume flow m³/h	155 test
Volume flow l/min	2557 l/min
Volume flow measured at operating pressure	7 bar
Max. operating pressure	16 bar
Air connection	1/2 "
Min. operating temperature	1.5 °C
Max. operating temperature	65 °C


Width/depth (product) approx.	88 mm
Height (product) approx.	247 mm

Estimated shipping time: 48-72 hours
