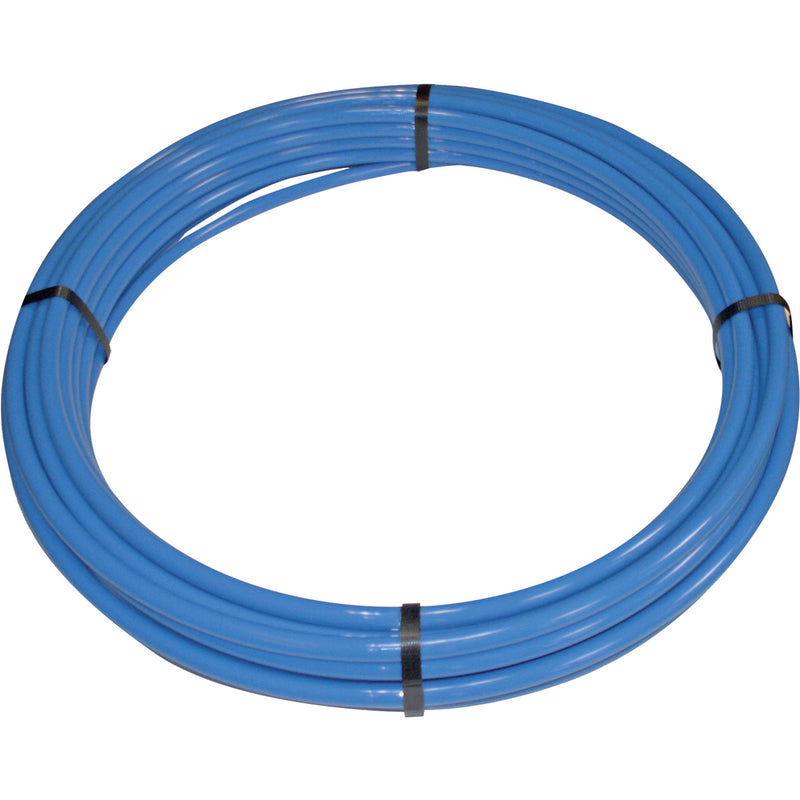

(215221725) Plastic pipe soft 22, roll 25 m
SKU 215221725
Original price
€209,10
Original price
€209,10
-
Original price
€209,10
Original price
€209,10
Current price
€198,65
€198,65
-
€198,65
Current price
€198,65
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
Room amenities:
- Very smooth inner surfaces, better flow
- well proven for years
- pressure and temperature resistant
- vibration and impact resistant
- resistant to corrosion and aging
- low weight
Room amenities:
operating temperatur
- with continuous load: -60 ° C to +100 ° C (air)
Physical Properties
- Density, at 20 ° C: 1.04 g / cm
- linear expansion coefficient: 15 · 10-5 l / K
- Melting point: approx. + 160 ° C to + 170 ° C
| Outer diameter of the pipe | 22 mm |
| Inner diameter of the pipe | 18 mm |
| Wall thickness | 2.0 mm |
| Max. operating pressure | 14 bar |
| Min. bending radius | 140 mm |
| Physical properties | |
|---|---|
| Material | Polyamide |
| Specific weight - Density | 1.04 g/cm³ |
| Min. operating temperature | -60 °C |
| Max. operating temperature | 100 °C |
| Expansion coefficient | 15 · 10-5 l/K |
| Melting point | approx. +160 to +170 °C |
- EAN: 4036351034810
- Custom Number: 39172390
- Comprimento: 800 mm
- Altura: 820 mm
- Largura: 220 mm
- Peso Bruto: 3.36 kg
- Peso Líquido: 3.36 kg
Estimated shipping time: 48-72 hours
