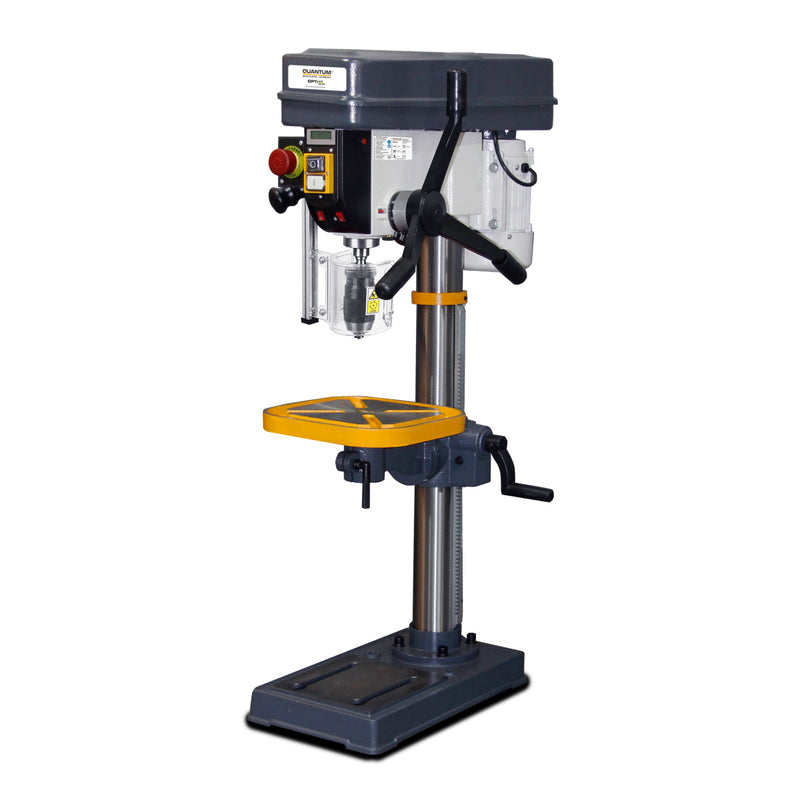

Optimum (3182080) Bench Drill OPTIdrill DQ 22V

Description

• User-friendly safety switch, IP 54-rated
• Long, ergonomic quill lever with handles
• Drilling depth stop

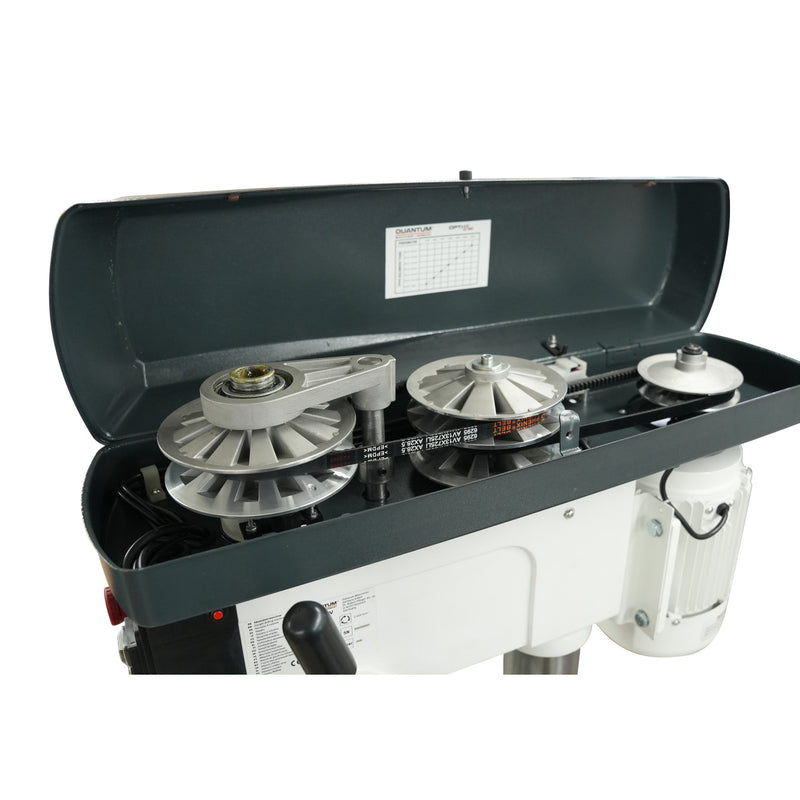

• V-belt guard with safety switch
• Guaranteed concentricity ? 0.02 mm, measured in the drill spindle li>
• Drill spindle with precision ball bearings
• High-quality quick-action drill chuck
• DQ 31BV Large, height-adjustable chuck guard
• The worktable can be adjusted from +45° to -45°

Technical data

Dimensions and weights

• Length (product) approx.: 620 mm
• Column diameter: 80 mm
• Width/depth (product) approx.: 320 mm
• Height (product) approx.: 1000 mm
• Net weight approx.: 55 kg

Drilling performance

• Drilling performance steel (S235JR): 20 mm
• Continuous drilling performance steel (S235JR): 18 mm

Drilling table

• Drilling table workspace length: 290 mm
• Drilling table workspace width: 290 mm
• Drilling table T-groove type: diagonal
• Drilling table T-groove size: 16 mm
• Drilling table T-groove number: 2
• Drilling table rotation: 360 °
• Drilling table angle: 45 °
• Max. distance spindle - drilling table: 410 mm

Speed range

• Speed range: 550 - 2500 min¯¹
• Speed control: mechanical

Electrical Data

• Drive motor output: 0.55 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz

Machine base

• Max. distance spindle - machine base: 600 mm
• Machine base workspace length: 460 mm
• Machine base workspace width: 270 mm

Spindle

• Quill stroke: 85 mm
• Spindle chuck: MT 3
• Reach: 176 mm

Transport info

• EAN: 4030635053870
• Customs number: 84592900
• Height: 300 mm
• Width: 650 mm
• Gross weight: 45.4 kg
• Net weight: 44.4 kg
