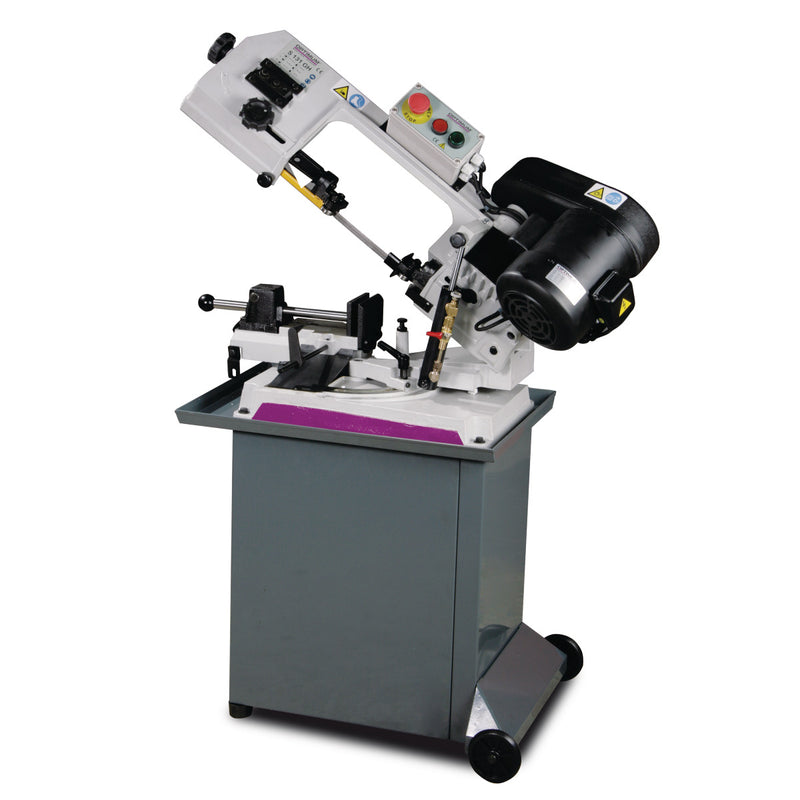

Optimum (3300131) Metal band saw OPTIsaw S 131GH

Description

• Circuit breaker for the belt cover and the saw band cover in low-voltage version
• Separate emergency stop impact switch
• Low-voltage electronics 24 V
• Silent run
• Mobile machine base

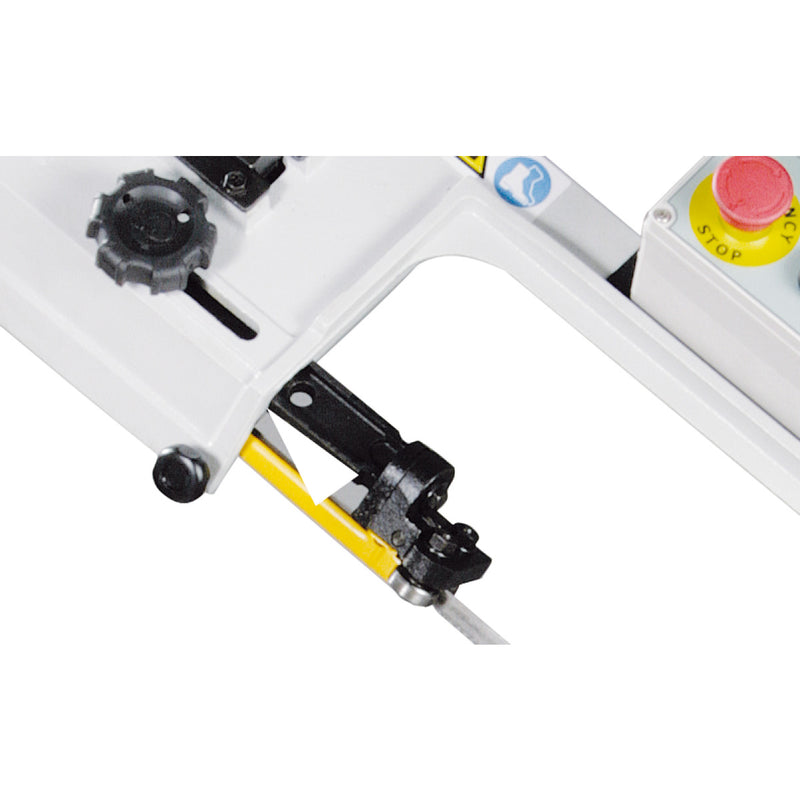

• Ball bearing saw band guide
• Three speed levels for a wide range of materials
• Micro switch for automatic limit switch

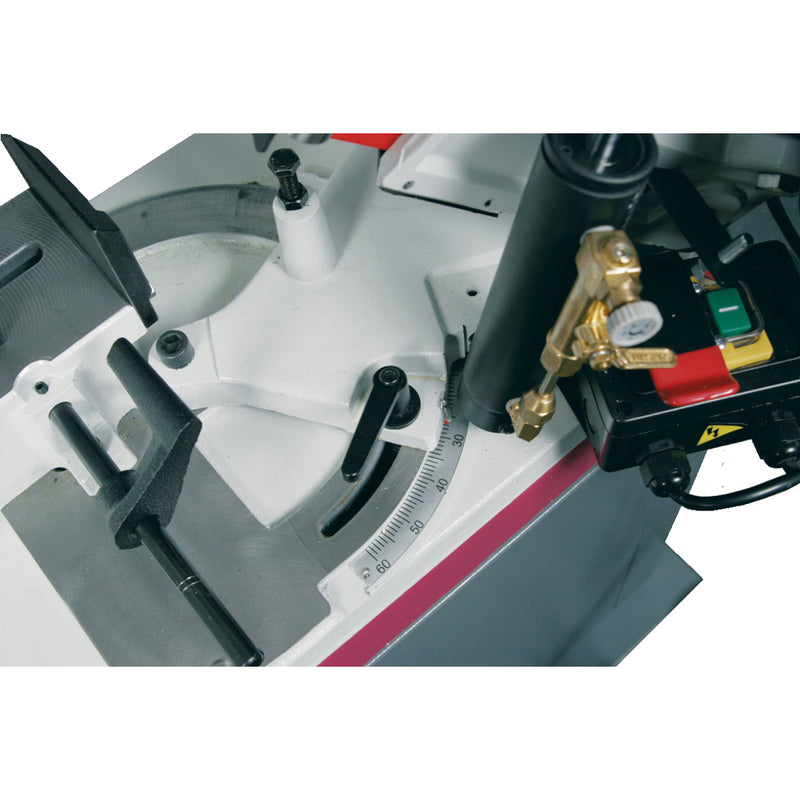

• Easy to read scale for angle adjustment
• As standard with high-quality bi-metal saw band
• Saw band tension adjustable on the front side via handwheel
• Adjustable material stop for serial work
• Quick-action vice for fast workpiece clamping
• With a powerful belt drive

Technical data

Dimensions and weights

• Length (product) approx.: 965 mm
• Width/depth (product) approx.: 498 mm
• Height (product) approx.: 978 mm
• Net weight approx.: 78 kg
• Max. length (product) approx.: 1085 mm
• Max. height (product) approx.: 1300 mm

Electrical data

• Drive motor power: 1,1 kW
• Supply voltage: 230 V
• Mains frequency: 50 Hz

Machine data

• Saw blade speed(s): 22 / 31 / 55 m/min
• Saw blade length: 1638 mm
• Saw blade width: 13 mm
• Saw blade thickness: 0,65 mm
• Cutting angle up to: -45 - 60 °

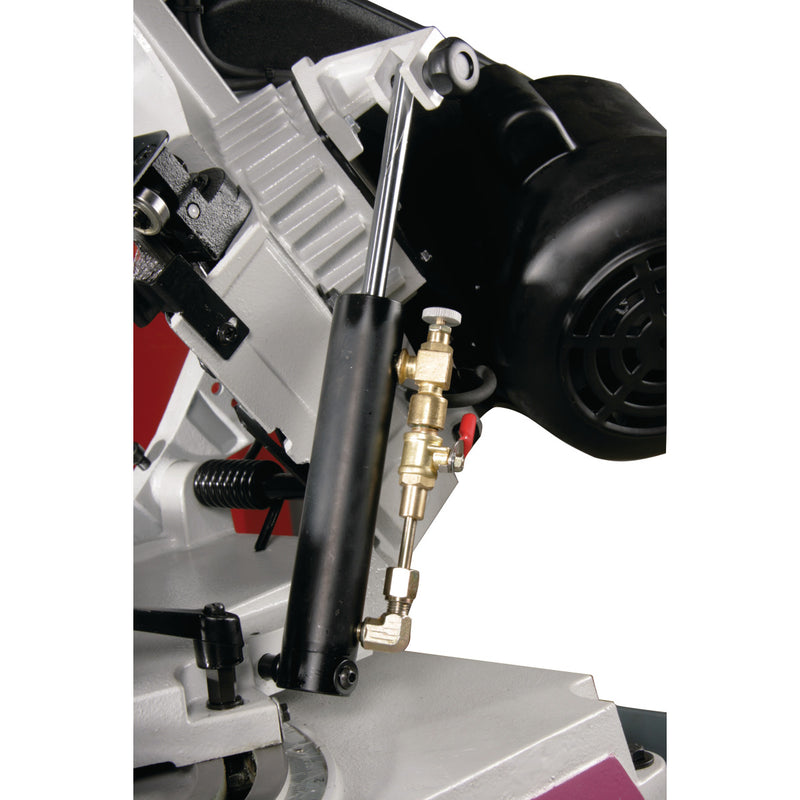

• Feed: infinitely variable
• Saw arm lift: Manual

Cutting ranges

• Cutting range 0° round (solid material): 128 mm
• Cutting range 0° square (solid material): 128 mm
• Cutting range 0° flat rectangular (solid material): 160x145 mm
• Cutting range -60° round (solid material): 55 mm
• Cutting range -60° square (solid material): 55 mm
• Cutting range -60° horizontal rectangular (solid material): 120x55 mm
• Cutting range 45° round (solid material): 90 mm
• Cutting range 45° square (solid material): 85 mm
• Cutting range 45° horizontal rectangular (solid material): 85x95 mm
• Cutting range explanation: The cutting range was determined using aluminium. It may vary with different materials and may be smaller in certain circumstances (not the cutting capacity).

Delivery content

• Material stop
• Bi-metal saw band
• Machine base

Transport info

• EAN: 4030635013959
• Customs number: 84615019
• Length: 1040 mm
• Height: 560 mm
• Width: 470 mm
• Gross weight: 82.5 kg
• Net weight: 78 kg

Optional accessories

• Workplace mat 1840x640 mm
• Workplace mat 1840x940 mm
• Workplace mat 3040x640 mm
• Workplace mat 3040x940 mm
• Saw band HSS Bi-Metal M 42, 1638x13x0.65 mm, 10 - 14 ZpZ, 0 °
• Saw band HSS Bi-Metal M 42, 1638x13x0.65 mm, 6 - 10 ZpZ, 0 °
• Saw band HSS bi-metal M 42, 1638x13x0.65 mm, 6 ZpZ, 10 °
• Saw band HSS Bi-Metal M 42, 1638x13x0.65 mm, 8 - 12 ZpZ, 0 °
• Sawband set for metal band saw HSS 1,638x13x0.65 mm
