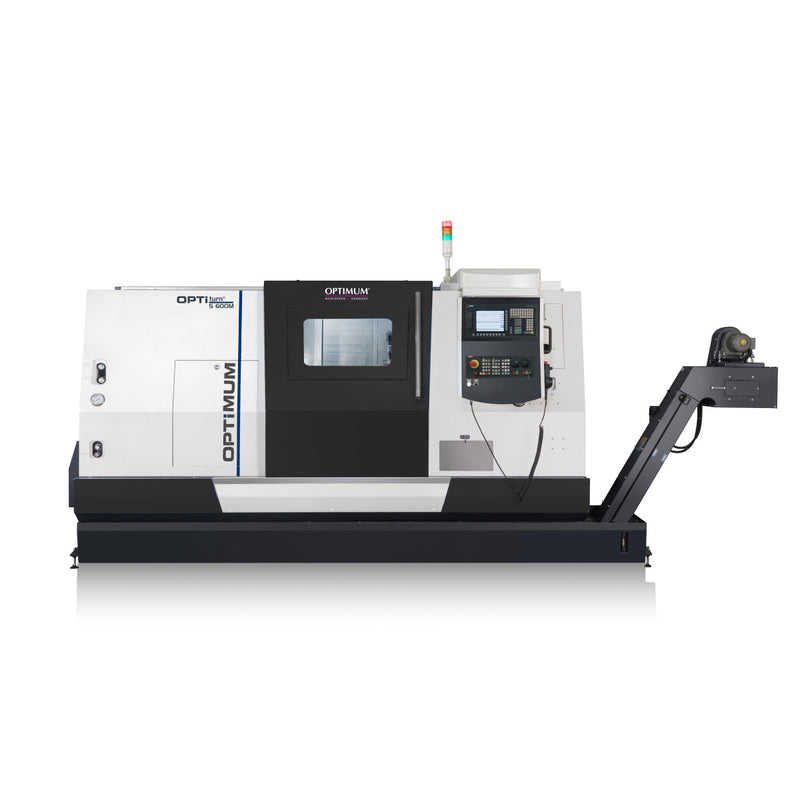

Optimum (3515185) CNC Lathe OPTIturn S 600M

Description

• Heavy-duty design
• Compact design
• Renishaw measuring arm for manual tool measurement

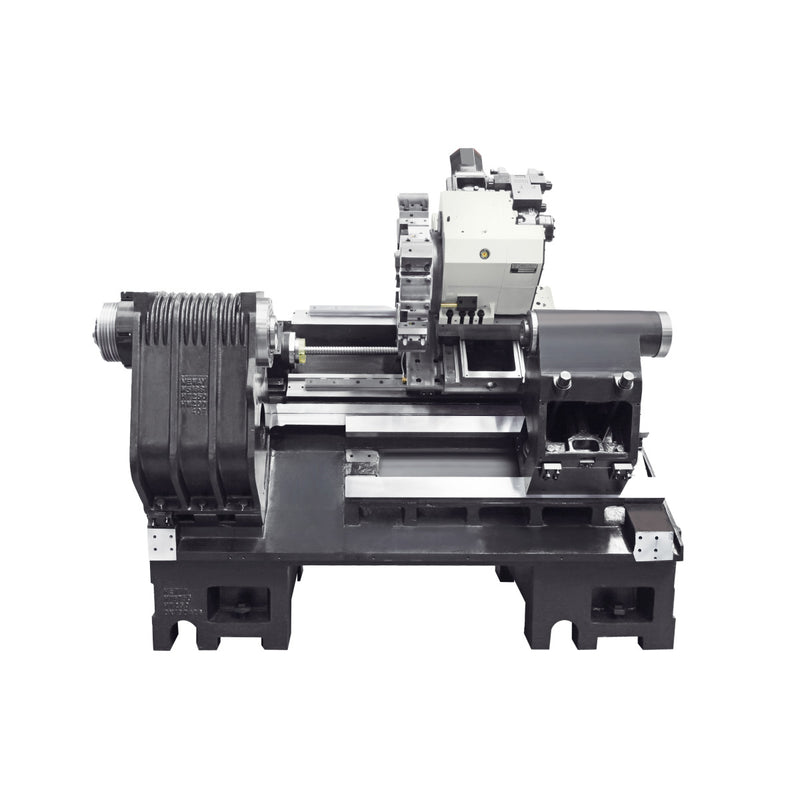

• The entire bed design has many reinforcing ribs optimized by finite element analysis, ensuring high rigidity, better heat dissipation (thermal symmetry) and more accurate machining
• Ball screw with improved accuracy, rigidity and heat resistance.
• Siemens servomotors in all axes
• All servo motors with integrated encoder for maximum accuracy
• The motor is located on the side of the machine and prevents heat transfer and vibrations caused by the motor.

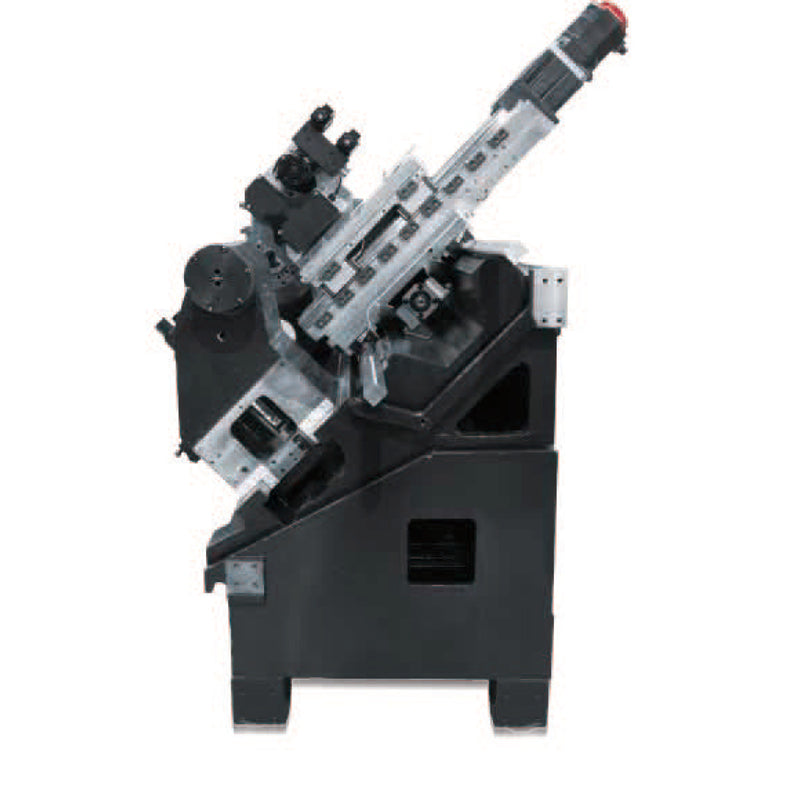

• 45° inclined bed design for particularly large machining diameters
• Better unhindered chip flow into the chip tray
• Hydraulic three-jaw lathe chuck Ø 200 mm
• Sauter VDI 40 tool changer with 8 tool positions and driven tool

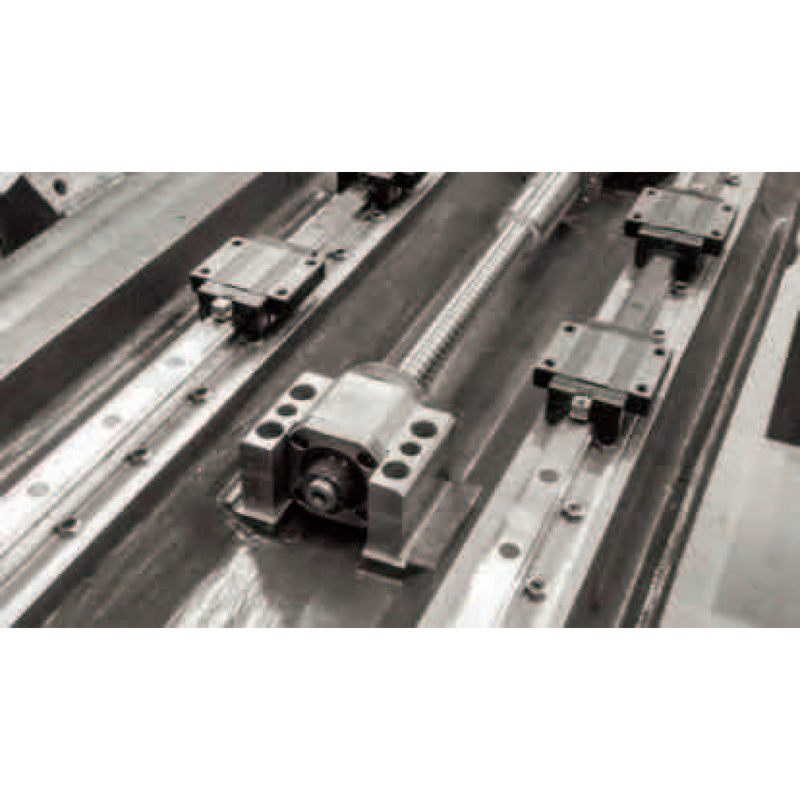

• Hardened and precision-ground ball screws for high rapid traverse speeds in all axes
• Dimensionally stable linear guides ensure a long service life thanks to maximum static and dynamic rigidity
• Device for manual tool measurement
• Tailstock with hydraulic quill
• Heat exchanger
• Portable, electronic handwheel with enabling switch and emergency stop switch makes it much easier to run in programs
• Belt-type chip conveyor ensures efficient chip removal
• Work light for complete illumination of the work area
• Coolant device with cleaning gun
• RJ45 , power interface

Technical data

Dimensions and weights

• Length (product) approx.: 4570 mm
• Width/depth (product) approx.: 1845 mm
• Height (product) approx.: 1955 mm
• Net weight approx.: 4200 kg

Work areas

• Lathe chuck diameter: 320 mm
• Turning length: 475 mm
• Swing diameter above machine bed: 570 mm
• Swing diameter above planing slide: 400 mm

C axis (factory option)

• Angular accuracy C-axis (option ex works): 51 "
• Repeat accuracy C-axis (option ex works): 20 "

Motor torque

• X axis motor torque: 11 Nm
• Z axis motor torque: 11 Nm

Speed range

• Speed range: 30 - 4000 min¯¹

Fast motion speed

• Rapid traverse Speed X-axis: 24 m/min
• Rapid traverse Speed Z-axis: 30 m/min

Electrical Data

• Supply voltage: 400 V
• Mains frequency: 50 Hz

Precision

• Repetition accuracy: ± 0.002
• Positioning accuracy: ± 0,004 mm

Hydraulic system

• Hydraulic system motor output: 2.2 kW
• Hydraulic system tank capacity: 36 l

Cooling lubricant system

• Cooling lubricant system coolant pump output: 0.55 kW
• Cooling lubricant system tank capacity: 300 l

Machine data

• Chuck passage diameter: 51 mm
• Angled bed: 45 °

Spindle

• Spindle chuck: DIN ISO 702-1 No. 6
• Spindle hydraulic lathe chuck: 200 mm
• Spindle taper: A2-6
• Main spindle bore: 65 mm

Tailstock

• Tailstock chuck: MT 5
• Tailstock quill stroke: 100 mm
• Tailstock quill diameter: 100 mm
• Tailstock quill stroke actuation: hydraulic

Travel

• Travelxaxis: 235 mm
• Travel Z axis: 530 mm

Vertical spindle

• Vertical spindle drive motor output continuous operation S1: 11 kW
• Verticle spindle drive motor output S6-30 % operation: 22 kW
• Vertical spindle drive motor torque: 70 Nm
• Vertical spindle drive motor torque S6-30 % operation: 140 Nm

Feed force

• Feed force X-axis: 8.4 kN
• Feed force Z-axis: 5.6 kN

Turret

• Tool changer type: Servo VDI 40 - DIN5480
• Tool changer number of tool slots: 12
• Tool changer drive motor output: 4.82 kW
• Tool changer max. permissible speed at tool coupling: 6000 min¯¹
• Tool changer max. tool torque: 20 Nm

Electrical connections

• Total rated value: 40 kVA

Delivery content

• 2 pieces Axial tool holder driven tools
• Radial tool holder driven tools
• 3 pieces B1 tool holder
• B3 Tool holder
• C1 Tool holder
• Collet E2 Ø 20mm
• Collet E2 Ø 25mm
• Collet E2 Ø 32 mm
• ER 32 collet set ( 6 , 8 , 10 , 12 , 16 , 20 mm)

Transport info

• EAN: 4030635048319
• Customs number: 84581180
• Length: 4930 mm
• Height: 2180 mm
• Width: 2220 mm
• Gross weight: 4700 kg
• Net weight: 4200 kg

Optional accessories

• Workplace mat 1840x640 mm
• Workplace mat 1840x940 mm
• Workplace mat 3040x640 mm
• Workplace mat 3040x940 mm
• Hard jaws 250 mm
• Soft jaws 250 mm
• Software DXF reader for SIEMENS SINUMERIK control systems
• Starter kit VDI 40
• Turning tool set 25 mm 6-piece
• Block jaw set hard for four-jaw lathe chuck Ø 300 mm
• Block jaw set soft for four-jaw lathe chuck Ø 300 mm
• Four-jaw lathe chuck hydraulic Ø 250 mm including cylinder
• Four-jaw lathe chuck hydraulic Ø 250 mm including cylinder
• Hard jaws 200 mm 4 pieces
• Hard jaws 250 mm 4 pieces
• Soft jaws 200 mm 4 pieces
• Soft jaws 250 mm 4 pieces
• Three-jaw lathe chuck Ø 250 mm including cylinder

Equipment options

• Oil separator
• Parts catcher
• Preparation Bar feeder interface
• Spindle bore 102 mm with 3,000 rpm, 250 mm lathe chuck
• Spindle bore 62 mm with 4,500 rpm, 200 mm lathe chuck
• Tool holder VDI40 axially driven
• Tool holder VDI40 radially driven
• Tool holder VDI40 radially reset
• Werkzeuginnenkühlung External unit 10 bar
• Werkzeuginnenkühlung External unit 20 bar
