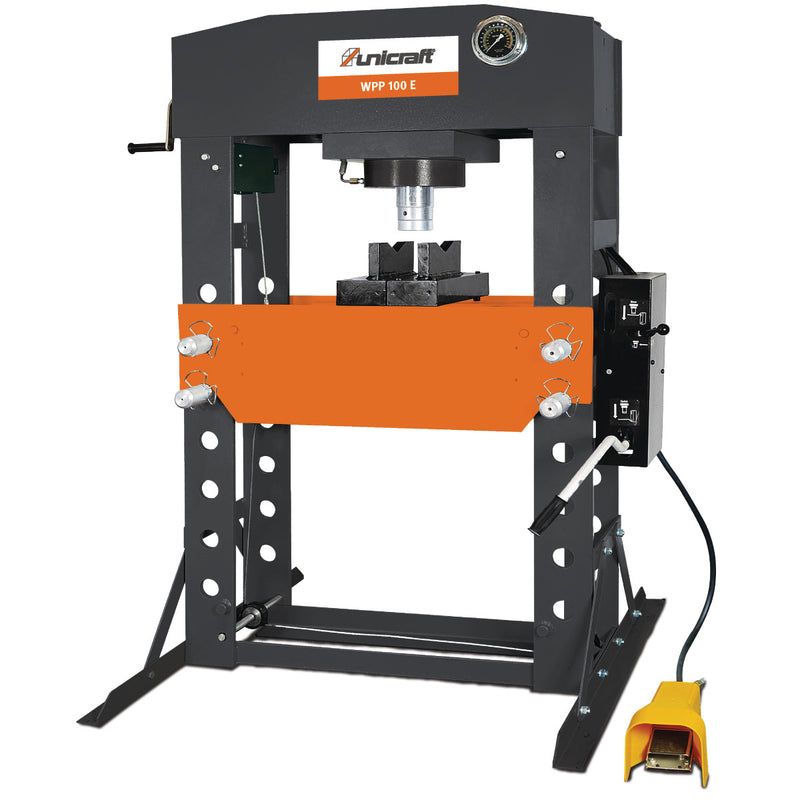

Unicraft (6300101) Hydraulic workshop press WPP 100 E
SKU 6300101
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Pressure force | 100 t |
| Piston stroke | 300 mm |
| Piston travel | 254 mm |
| Piston stroke per pumping operation footpedal | 5.85 mm |
| Piston speed with foot pedal | 3.33 mm/s |
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 1199 mm |
| Width/depth (product) approx. | 990 mm |
| Height (product) approx. | 1848 mm |
| Net weight approx. | 666 kg |
| Width/depth of machine feet | 990 mm |
| Frame depth | 268 mm |
| Hole spacing for table height adjustment | 140 mm |
| Clear height max. | 813 mm |
| Clear height min. | 113 mm |
| Clear width | 787 mm |
| Diameter piston rod | 96 mm |
| Hydraulic system | |
| Hydraulic oil tank capacity | 4.95 l |
| Pneumatic connection | |
| Air consumption approx. | 200 l/min |
| Pneumatic operating pressure from to | 7.5 - 8.5 bar |
- Prism block set
- EAN: 4036351344995
- Custom Number: 84626190
- Comprimento: 1150 mm
- Altura: 2110 mm
- Largura: 390 mm
- Peso Bruto: 762 kg
- Peso Líquido: 666 kg
Request a quote
Estimated shipping time: 48-72 hours
