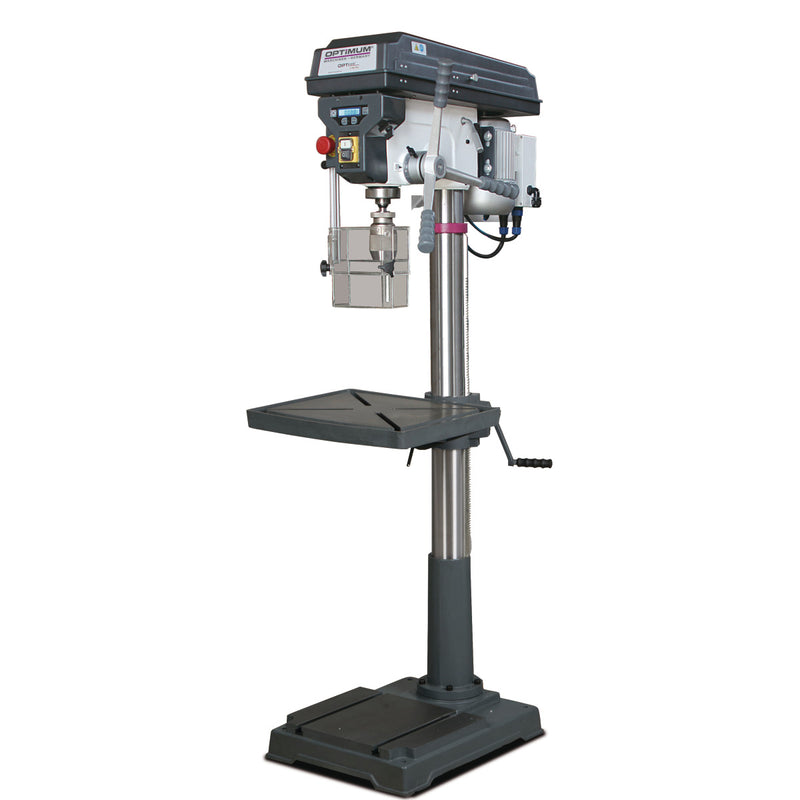

Optimum (3003040) Upright Drill OPTIdrill D 33Pro

Description

• Industrial engine
• Easy to use safety switch according to IP 54

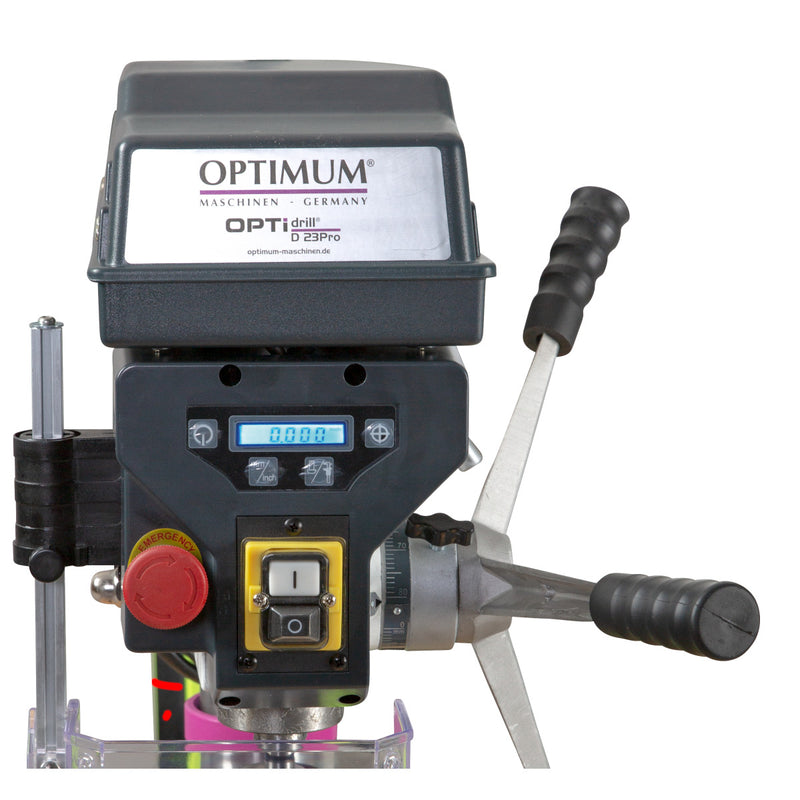

• Digital drilling depth and speed indicator integrated in the housing
• Separate emergency stop impact switch
• Precision Spindle bore
• Safety electronics in 24 V DC
• Guaranteed concentricity measured less than 0.02 mm in the drill quill
• Drill spindle with precision ball bearings
• High quality keyless chuck
• Digital depth gauge

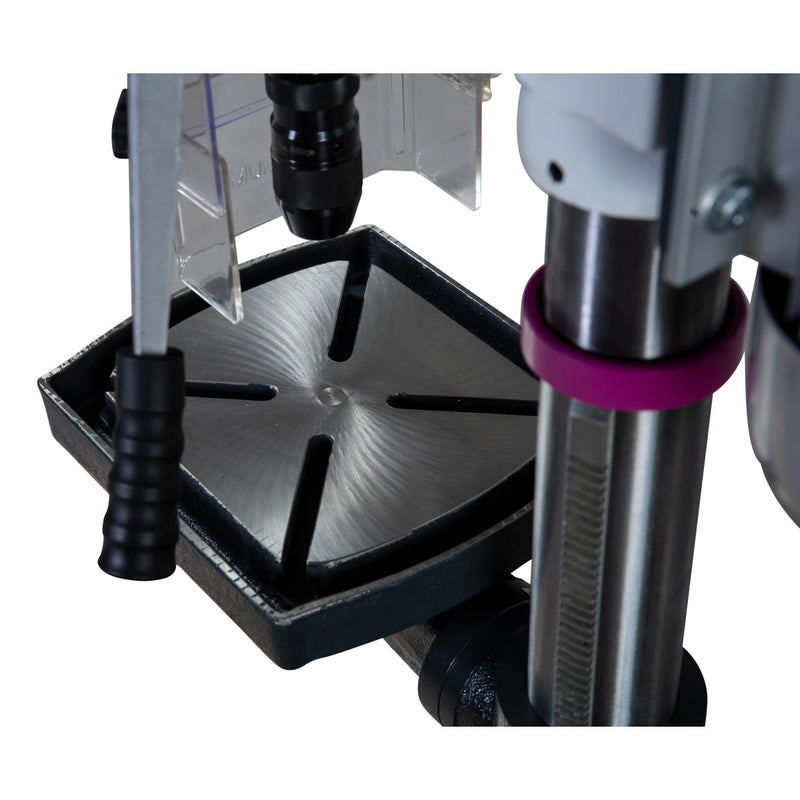

• Precision machined, stable drill table with diagonal T-slots and circumferential cooling water channel

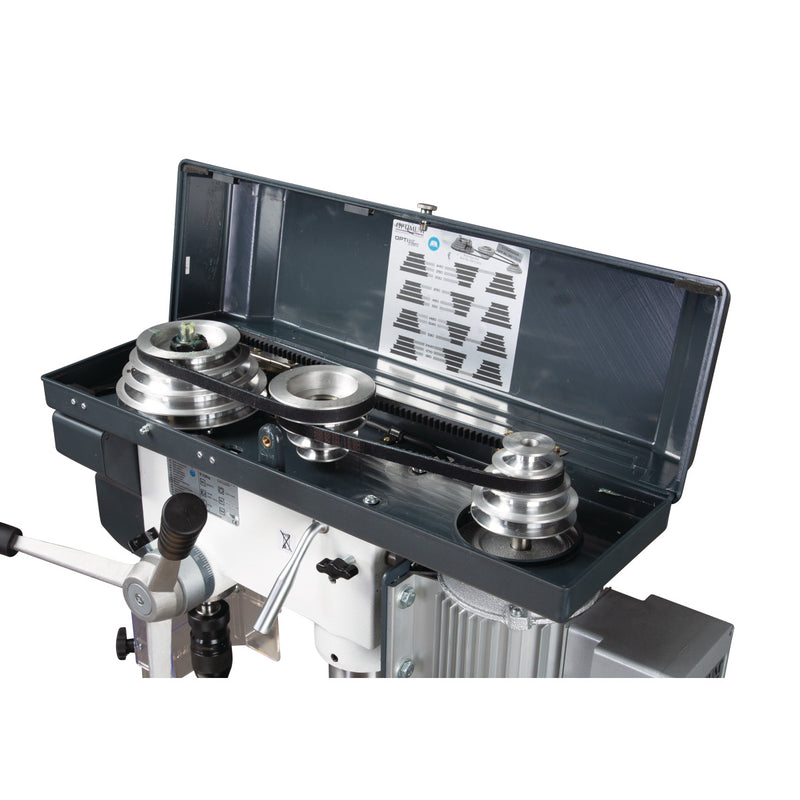

• V-belt cover with safety switch
• One piece cast aluminum die-cast quill lever with softgrip handles
• Large, height-adjustable protective screen with safety switch
• Heavy version of the entire machine

Technical data

Dimensions and weights

• Length (product) approx.: 915 mm
• Column diameter: 92 mm
• Width/depth (product) approx.: 450 mm
• Height (product) approx.: 1705 mm
• Net weight approx.: 137 kg

Drilling performance

• Drilling performance steel (S235JR): 30 mm
• Continuous drilling performance steel (S235JR): 25 mm

Drilling table

• Drilling table workspace length: 475 mm
• Drilling table workspace width: 425 mm
• Drilling table T-groove size: 14 mm
• Drilling table rotation: 360 °
• Drilling table angle: 45 °
• Max. distance spindle - drilling table: 695 mm

Speed range

• Speed range: 120 - 1810 min¯¹
• Number of gears: 9

Electrical Data

• Drive motor output: 1,1 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz

Machine base

• Max. distance spindle - machine base: 1180 mm
• Machine base workspace length: 410 mm
• Machine base workspace width: 325 mm
• Machine base T-groove size: 16 mm
• Machine base T-groove number: 2
• Machine base T-groove spacing: 250 mm

Spindle

• Quill stroke: 120 mm
• Spindle chuck: MT 4
• Reach: 254 mm

Delivery content

• Keyless drill chuck 1 - 16 mm
• Morse taper MK 4/B16
• T-slots

Transport info

• EAN: 4030635038303
• Customs number: 84592900
• Length: 1480 mm
• Height: 300 mm
• Width: 650 mm
• Gross weight: 145 kg
• Net weight: 137 kg

Optional accessories

• Workplace mat 1840x640 mm
• Workplace mat 1840x940 mm
• Workplace mat 3040x640 mm
• Workplace mat 3040x940 mm
• Cutting oil spray 400 ml
• Twist drill HSS with Morse taper MT 3
