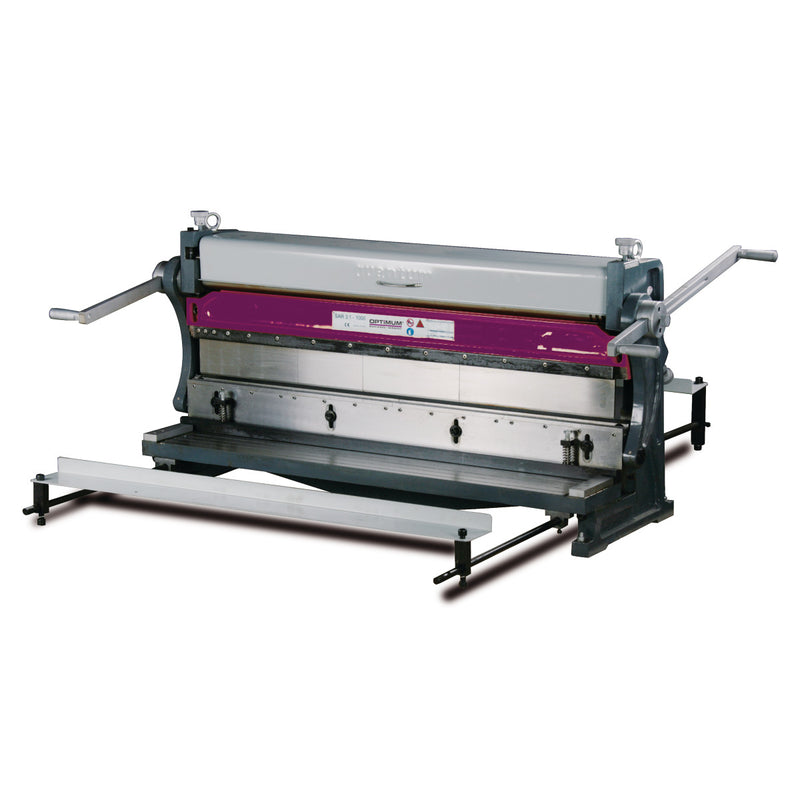

Optimum (3242100) Combined bending and cutting machine SAR 1000
SKU 3242100
Original price
€3.560,85
Original price
€3.560,85
-
Original price
€3.560,85
Original price
€3.560,85
Current price
€3.382,81
€3.382,81
-
€3.382,81
Current price
€3.382,81
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
Turn around
- Adjustment screws for the material thickness with scaling

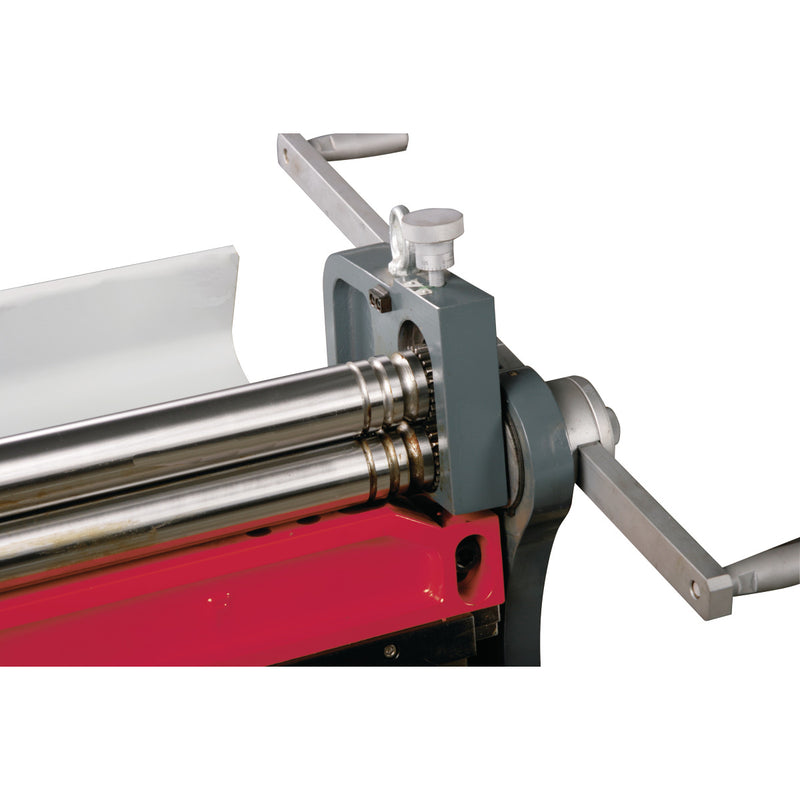

- Ground bending rolls with wire-laying grooves on the lower and front rolls
folding

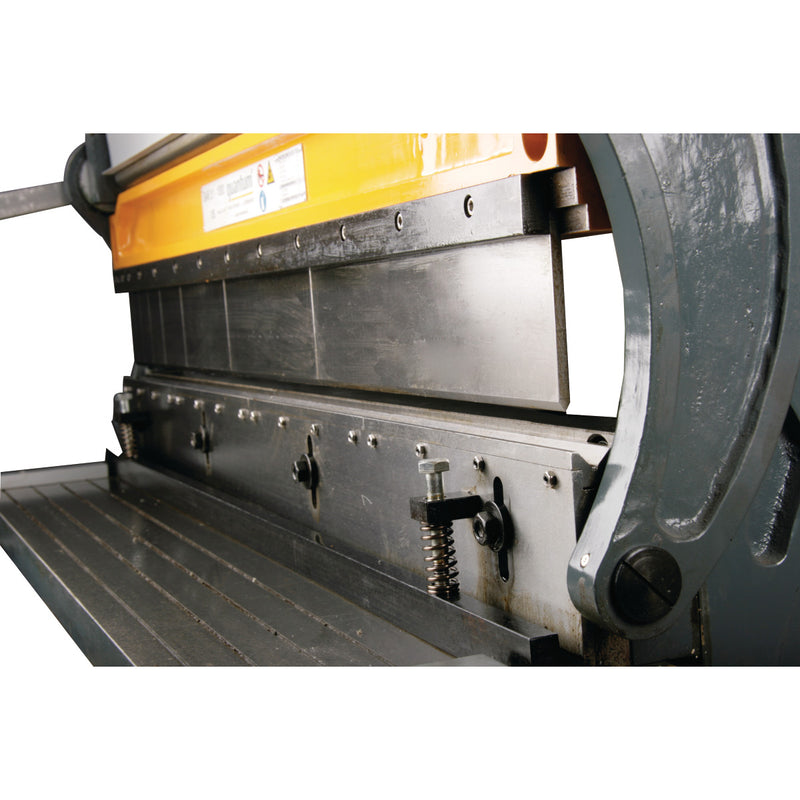

- High quality folding cheeks
- Feather-down device
- Segment split edge rail 40/50/65/100/180/255/380 mm for cassette bending
To cut
- Clean and burr-free cutting by upper and lower blades made of quality steel
| Max material width | 700 mm |
| Max. bending performance plate rolling in steel 400 N/mm² | 1 mm |
| Max. bending performance plate rolling stainless steel | 0.5 mm |
| Max. bending performance plate rolling aluminium/copper | 1.5 mm |
| Max. bending performance plate rolling brass | 1 mm |
| Max. bending performance plate rolling gold/silver/tin | 1.5 mm |
| Min. bending diameter plate rolling | 48 mm |
| Max. bending diameter plate rolling | unlimited |
| Plate rolling roller diameter | 48 mm |
| Max. sheet thickness swivel bending with restricted material width | 2.5 mm |
| Max. sheet thickness swivel bending steel 400 N/mm² | to 1 mm |
| Max. sheet thickness swivel bending aluminium/copper | to 1.5 mm |
| Segmentation | 7 |
| Max. cutting capacity | 1 mm |
| Dimensions and weights | |
|---|---|
| Net weight approx. | 290 kg |
- Adjustable backgauge
- Front material pad
- Tool
- EAN: 4030635007033
- Custom Number: 84623900
- Comprimento: 1440 mm
- Altura: 835 mm
- Largura: 570 mm
- Peso Bruto: 308 kg
- Peso Líquido: 270
Estimated shipping time: 48-72 hours
