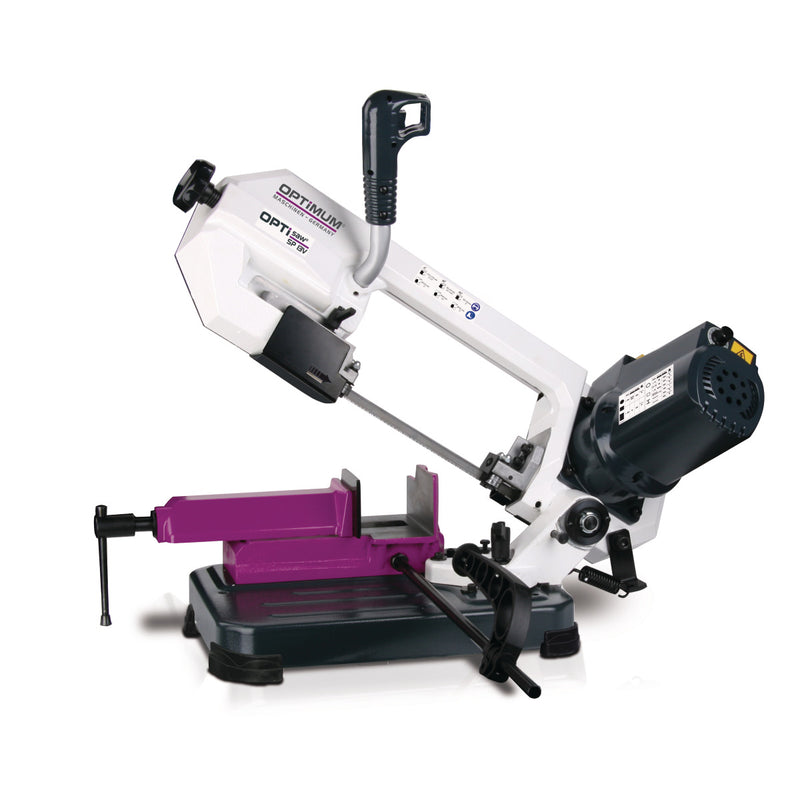

Optimum (3300075) Miter band saw OPTIsaw SP 13V
SKU 3300075
Original price
€859,77
Original price
€859,77
-
Original price
€859,77
Original price
€859,77
Current price
€816,78
€816,78
-
€816,78
Current price
€816,78
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
SP 11V

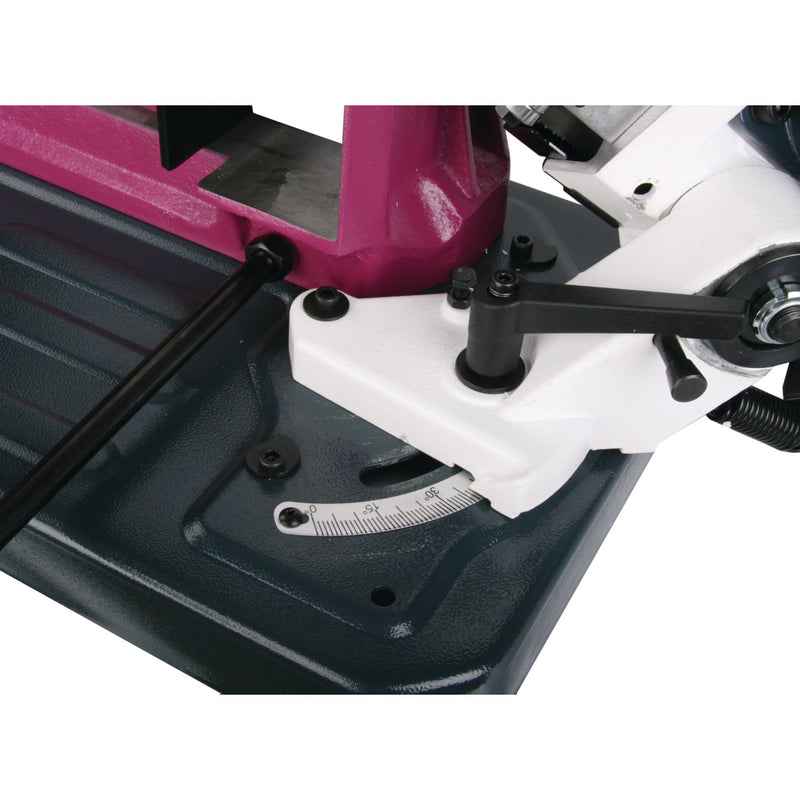

- Saw bar can be swiveled from 0 ° to + 45 ° to allow angled saw cuts
SP 13V
- Saw bar can be swiveled from 0 ° to + 60 ° to allow angled saw cuts
The metal band saw (frequency converter) complies with the standard DIN EN 55011: Class C2
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 720 mm |
| Width/depth (product) approx. | 300 mm |
| Height (product) approx. | 420 mm |
| Net weight approx. | 19,5 kg |
| Max. width/depth (product) approx.. | 650 mm |
| Height max. (product) approx. | 680 mm |
| Electrical Data | |
| Drive motor output | 1 kW |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Machine data | |
| Saw band speed(s) | 30 – 80 m/min |
| Saw band length | 1440 mm |
| Saw band width | 13 mm |
| Saw band thickness | 0,65 mm |
| Cutting angle from to | 0 - 60 ° |
| Cutting ranges | |
| Cutting range 0° round (solid material) | 125 mm |
| Cutting range 0° square (solid material) | 125 mm |
| Cutting range 0° rectangular lying (solid material) | 125 x 125 mm |
| Cutting range 0° rectangular horizontal vertical section | 125 x 125 mm |
| Cutting range +45° round (full material) | 85 mm |
| Cutting range +45° square (solid material) | 85 mm |
| Cutting range +45° rectangular horiz. (solid material) | 85 x 85 mm |
| Cutting range +60° round (solid material) | 45 mm |
| Cutting range +60° square (solid material) | 45 mm |
| Cutting range +60° rectangular horiz. (solid material) | 45 x 50 mm |
| Explanation Cutting range | The cutting range was determined with aluminum. It may vary when using different materials and may be smaller under certain circumstances (not cutting capacity). |
- Bi-metal saw band
- material stop
- EAN: 4030635026744
- Custom Number: 84615019
- Comprimento: 446 mm
- Altura: 375 mm
- Largura: 724 mm
- Peso Bruto: 23 kg
- Peso Líquido: 21
Estimated shipping time: 48-72 hours
