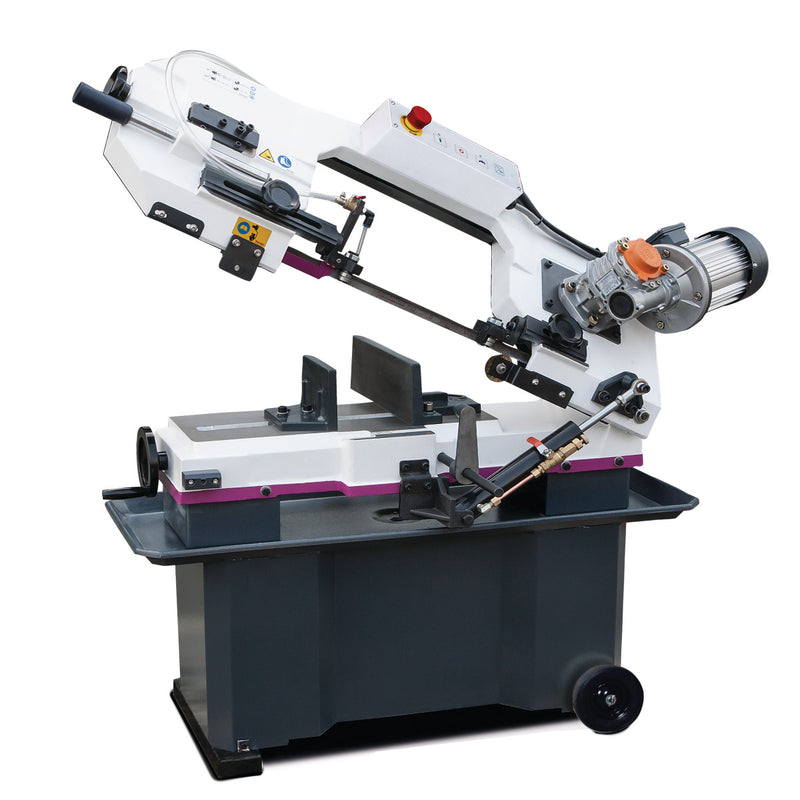

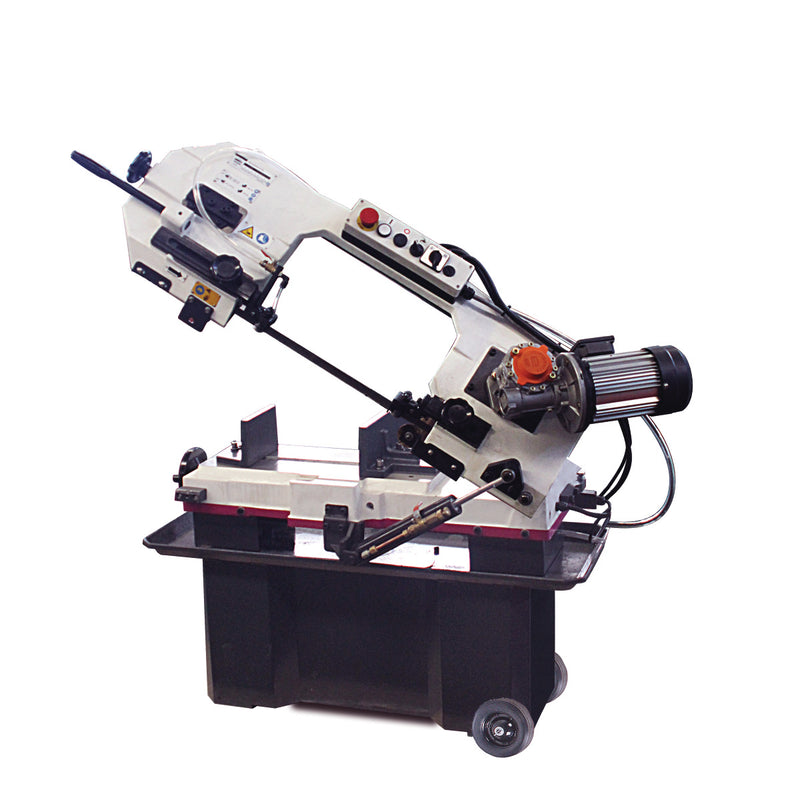

Optimum (3300200) Gear metal band saw OPTIsaw SD 200G
SKU 3300200
Original price
€2.386,20
Original price
€2.386,20
-
Original price
€2.386,20
Original price
€2.386,20
Current price
€2.266,89
€2.266,89
-
€2.266,89
Current price
€2.266,89
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 1295 mm |
| Width without material stop approx. | 475 mm |
| Width with material stop approx. | 535 mm |
| Height lower end position approx. | 790 mm |
| Height upper end position approx. | 1200 mm |
| Net weight approx. | 130 kg |
| Work table height | 530 mm |
| Equipment | |
| Coolant pump | ✔ |
| Electrical Data | |
| Drive motor output | 0.55 / 0.75 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Engine power coolant pump | 0,1 kW |
| Machine data | |
| Saw band speed(s) | 44 / 88 m/min |
| Saw band length | 2360 mm |
| Saw band width | 19 mm |
| Saw band thickness | 0,9 mm |
| Cutting angle from to | 0 - 45 ° |
| Feed | infinitely variable |
| Lifting the saw bow | Manual |
| Cutting ranges | |
| Cutting range 0° round (solid material) | 180 mm |
| Cutting range 0° square (solid material) | 180 mm |
| Cutting range 0° rectangular upright (solid material) | 180 x 240 / 50 x 300 mm |
| Cutting range +45° round (full material) | 110 mm |
| Cutting range +45° square (solid material) | 150 mm |
| Cutting range +45° rectangular upright (solid material) | 110 x 170 mm |
| Explanation Cutting range | Cutting range determined on the basis of the saw bow weight with aluminum. May vary when using different materials and may be smaller under certain circumstances (not cutting capacity). |
- Material stop
- Bi-metal saw band
- Machine base
- EAN: 4030635040719
- Custom Number: 84615019
- Comprimento: 1300 mm
- Altura: 880 mm
- Largura: 580 mm
- Peso Bruto: 150 kg
- Peso Líquido: 130
Estimated shipping time: 48-72 hours
