Optimum (3300210) Metal band saw OPTIsaw S 210G
SKU 3300210
Original price
€2.988,90
Original price
€2.988,90
-
Original price
€2.988,90
Original price
€2.988,90
Current price
€2.839,46
€2.839,46
-
€2.839,46
Current price
€2.839,46
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:

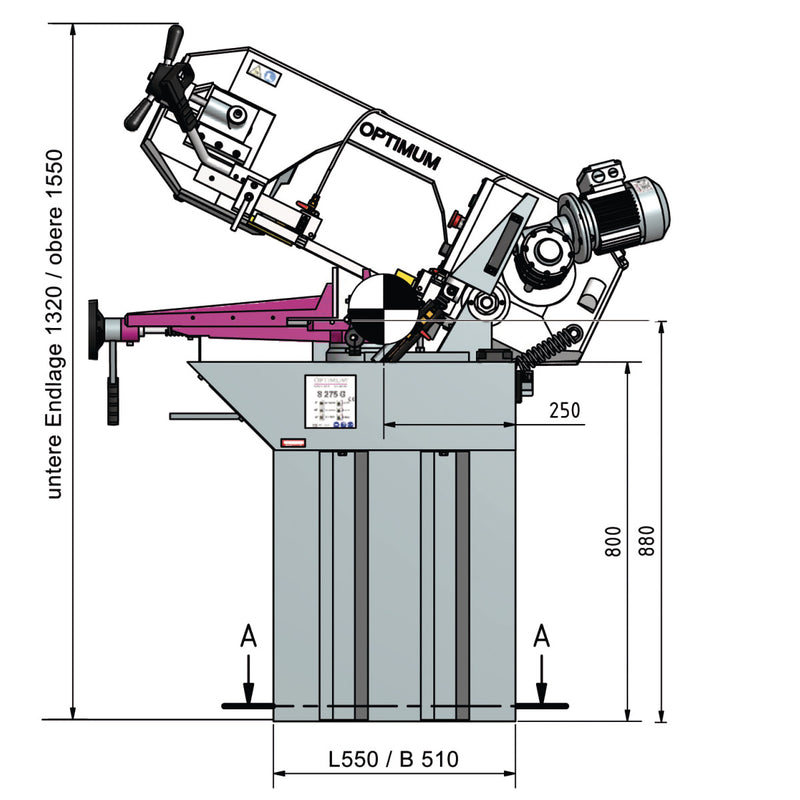

| Dimensions and weights | |
|---|---|
| Length open vise approx. | 1310 mm |
| Length closed vise approx. | 1200 mm |
| Width without material stop approx. | 685 mm |
| Width with material stop approx. | 985 mm |
| Height lower end position approx. | 1320 mm |
| Height upper end position approx. | 1550 mm |
| Net weight approx. | 152 kg |
| Electrical Data | |
| Drive motor output | 0.75 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Engine power coolant pump | 0,090 kW |
| Machine data | |
| Saw band speed(s) | 40 / 80 m/min |
| Saw band length | 2080 mm |
| Saw band width | 20 mm |
| Saw band thickness | 0,9 mm |
| Cutting angle from to | 0 - 45 ° |
| Feed | infinitely variable |
| Lifting the saw bow | Manual |
| Cutting ranges | |
| Cutting range 0° round (solid material) | 170 mm |
| Cutting range 0° square (solid material) | 140 mm |
| Cutting range 0° rectangular lying (solid material) | 140 x 190 mm |
| Cutting range +45° round (full material) | 125 mm |
| Cutting range +45° square (solid material) | 125 mm |
| Cutting range +45° rectangular horiz. (solid material) | 95 x 140 mm |
| Explanation Cutting range | Cutting range determined on the basis of the saw bow weight with aluminum. May vary when using different materials and may be smaller under certain circumstances (not cutting capacity). |
- material stop
- Bi-metal saw band
- substructure
- Coolant pump
- EAN: 4030635004407
- Custom Number: 84615019
- Comprimento: 1300 mm
- Altura: 880 mm
- Largura: 580 mm
- Peso Bruto: 162 kg
- Peso Líquido: 152
Estimated shipping time: 48-72 hours
