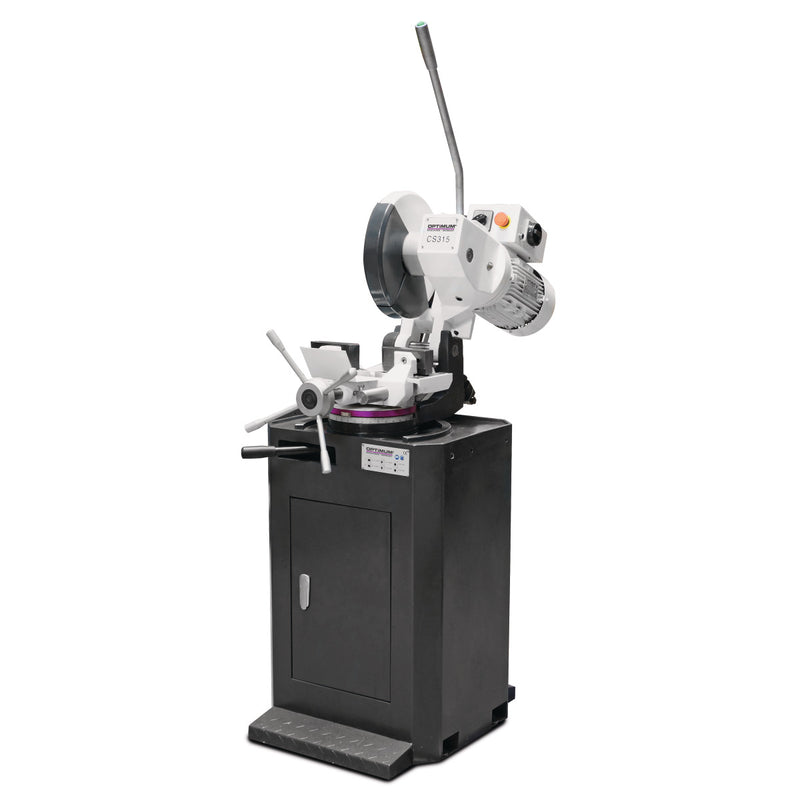

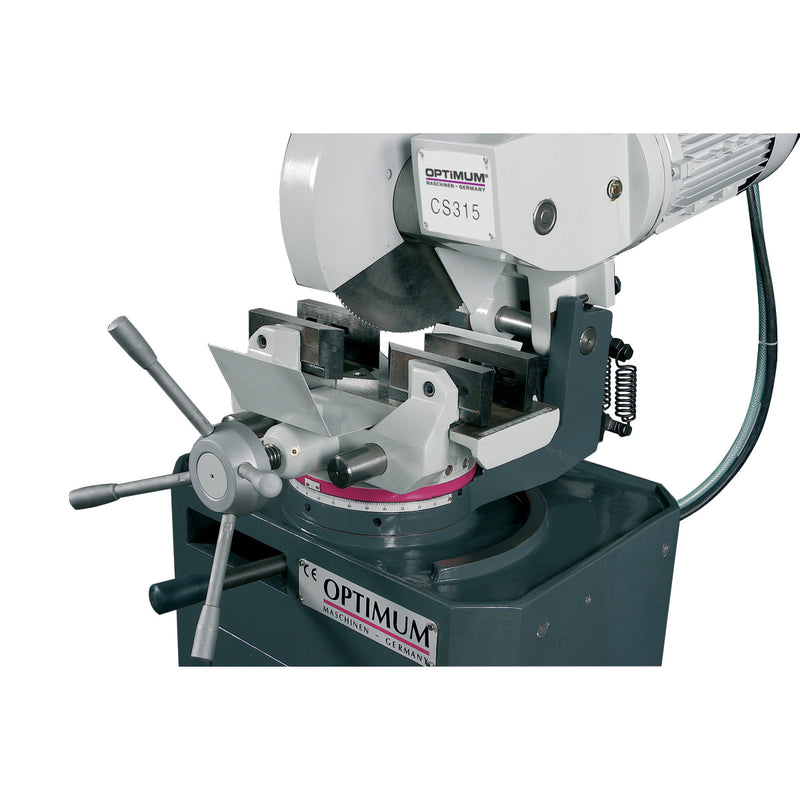

Optimum (3302300) Manual metal-cutting circular saw OPTIsaw CS 315
SKU 3302300
Original price
€3.505,50
Original price
€3.505,50
-
Original price
€3.505,50
Original price
€3.505,50
Current price
€3.330,23
€3.330,23
-
€3.330,23
Current price
€3.330,23
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
- CS 275 - 460 x 515 x 775 mm and
- CS 315 - 546 x 620 x 801 mm
| Saw blade speed(s) | 19/38 min¯¹ |
| Saw blade diameter | 315 mm |
| Saw blade bore | 40 mm |
| Saw blade thickness | 2.5 mm |
| Miter angle | -90 – +90 ° |
| Feed | Manual |
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 560 mm |
| Width/depth (product) approx. | 902 mm |
| Height (product) approx. | 1765 mm |
| Net weight approx. | 235 kg |
| Electrical Data | |
| Drive motor output | 0.75;1.5 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Cutting capacity | |
| Cutting capacity 0° (round) solid material | 85 mm |
| Cutting capacity 0° (square) solid material | 85 mm |
| Cutting capacity 0° (rectangle) solid material | 70 x 130 mm |
| Cutting capacity +45° (round) solid material | 85 mm |
| Cutting capacity +45° (square) solid material | 85 |
| Cutting capacity +45° (rectangle) solid material | 70 x 90 mm |

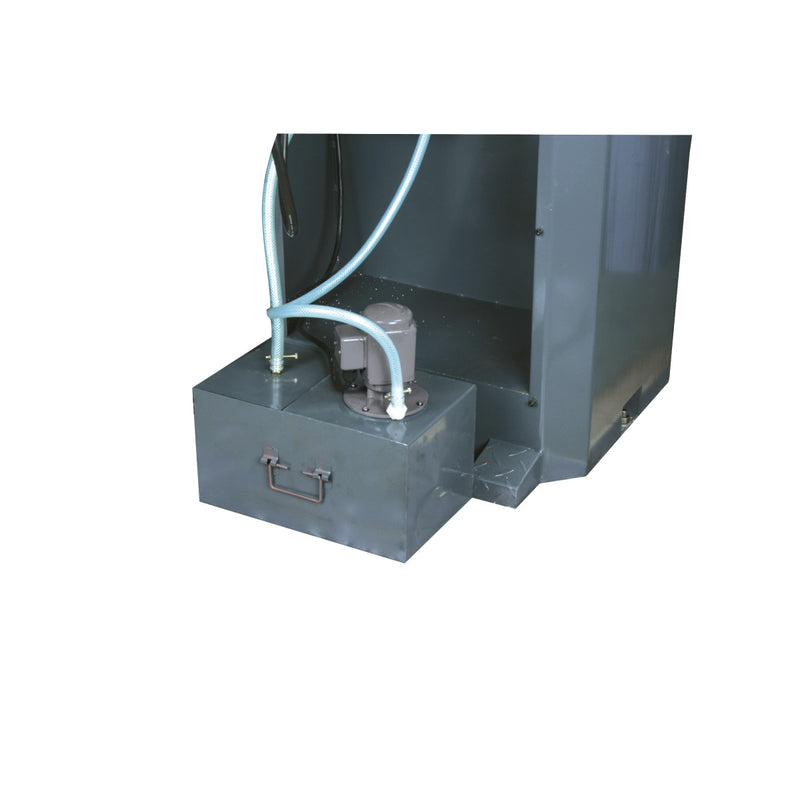

- Coolant system
- substructure
- EAN: 4030635009051
- Custom Number: 84615011
- Comprimento: 1000 mm
- Altura: 1550 mm
- Largura: 630 mm
- Peso Bruto: 260 kg
- Peso Líquido: 230
Estimated shipping time: 48-72 hours
