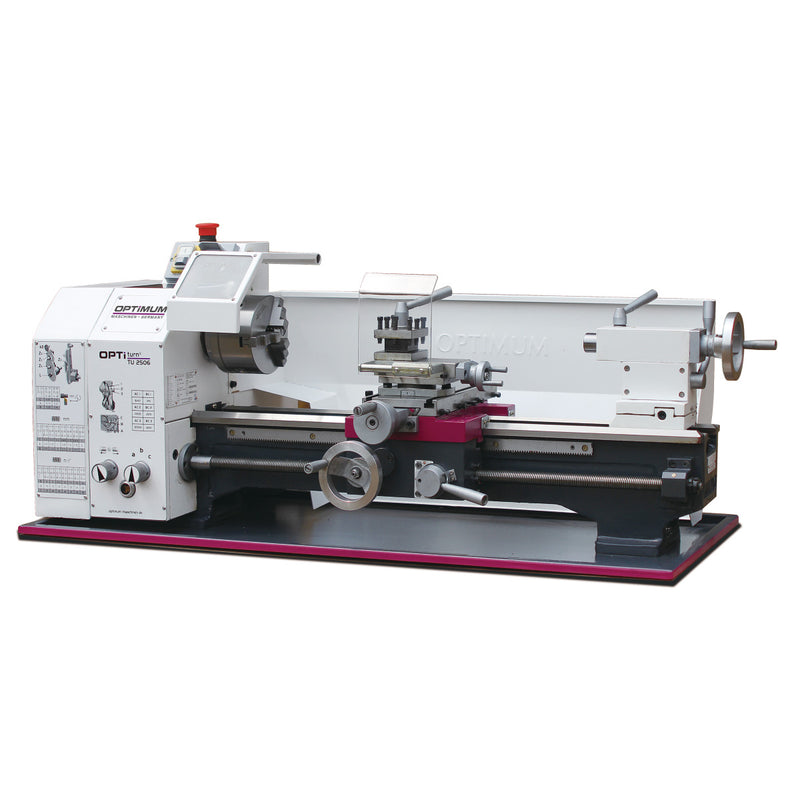

Optimum (3425003) Center lathe OPTIturn TU 2506 (400 V)
SKU 3425003
Original price
€2.829,00
Original price
€2.829,00
-
Original price
€2.829,00
Original price
€2.829,00
Current price
€2.687,55
€2.687,55
-
€2.687,55
Current price
€2.687,55
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
| Dimensions and weights | |
|---|---|
| Length (product) approx. | 1250 mm |
| Width/depth (product) approx. | 585 mm |
| Height (product) approx. | 475 mm |
| Net weight approx. | 138 kg |
| Work areas | |
| Max. height | 125 mm |
| Max. width | 550 mm |
| Swing diameter above machine bed | 246 mm |
| Swing diameter above planing slide | 149 mm |

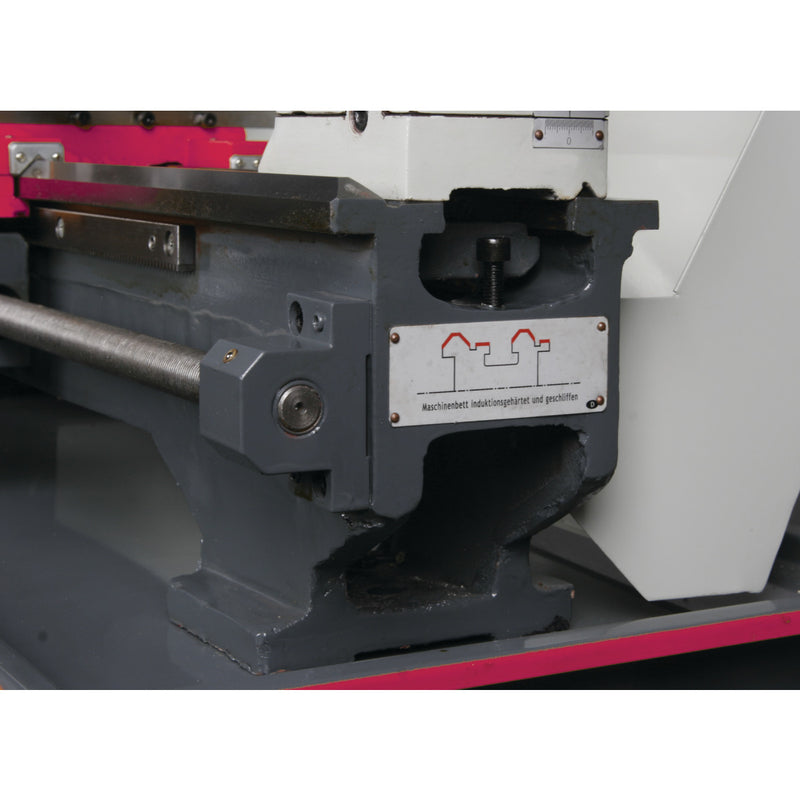

| Bed width | 134 mm |
| Speed range | |
| Number of gears | 6 Steps |
| Speed range | 125 – 2000 min¯¹ |
| Electrical Data | |
| Drive motor output | 0,75 kW |
| Supply voltage | 400 V |
| Mains frequency | 50 Hz |
| Spindle | |
| Spindle chuck | short taper |
| Spindle bore | 26 mm |
| Tool holder max. chuck height | 12 mm |
| Spindle cone | MT 4 |

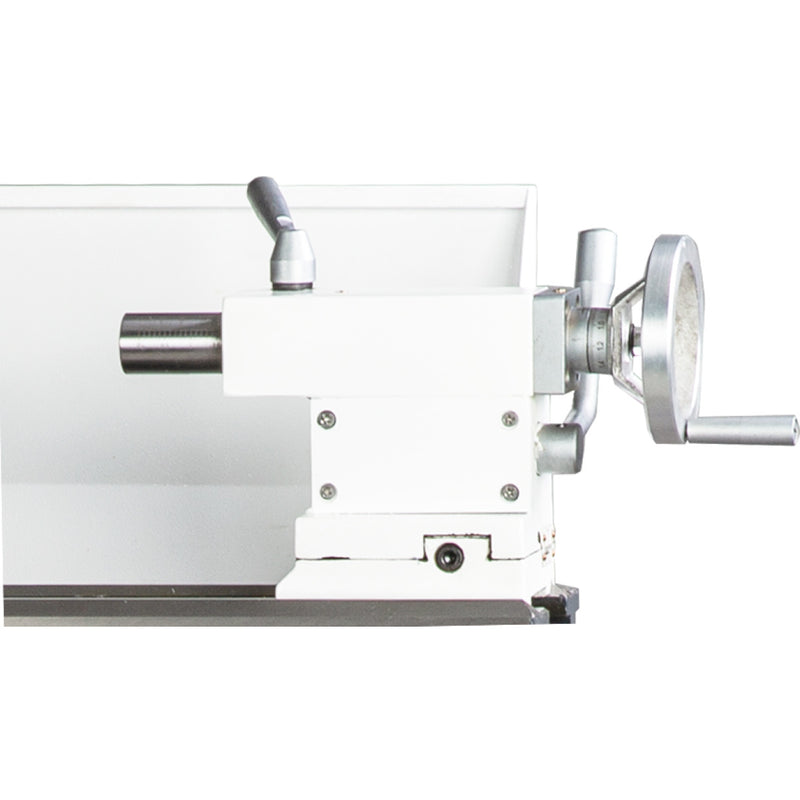

| Tailstock | |
| Tailstock chuck | MK 2 |
| Tailstock quill stroke | 65 mm |
| Tailstock quill diameter | 30 mm |
| Pitches | |
| Metric pitch | 0,2 – 4 mm/rev |
| Number of metric pitches | 21 |
| Imperial pitch | 56 – 8 Gg/1" |
| Number of imperial pitches | 21 |
| Travel | |
| Travel upper slide | 70 mm |
| Travel cross slide | 110 mm |
| Travel carriage saddle | 550 mm |
| Feed | |
| Longitudinal feed range | 0,07 – 0,4 mm/rev |
| Number of longitudinal feeds | 6 |
- Three-jaw lathe chuck Ø 125 mm, centrically exciting
- Fixed centering point MK 2 and MK 4
- Quadruple tool holder 12 mm
- HSS lathe tool
- Bulkhead
- Chip pan
- Change gear set
- Operating tool
- EAN: 4030635006210
- Custom Number: 84581900
- Comprimento: 1200 mm
- Altura: 580 mm
- Largura: 560 mm
- Peso Bruto: 156 kg
- Peso Líquido: 138
Estimated shipping time: 48-72 hours
