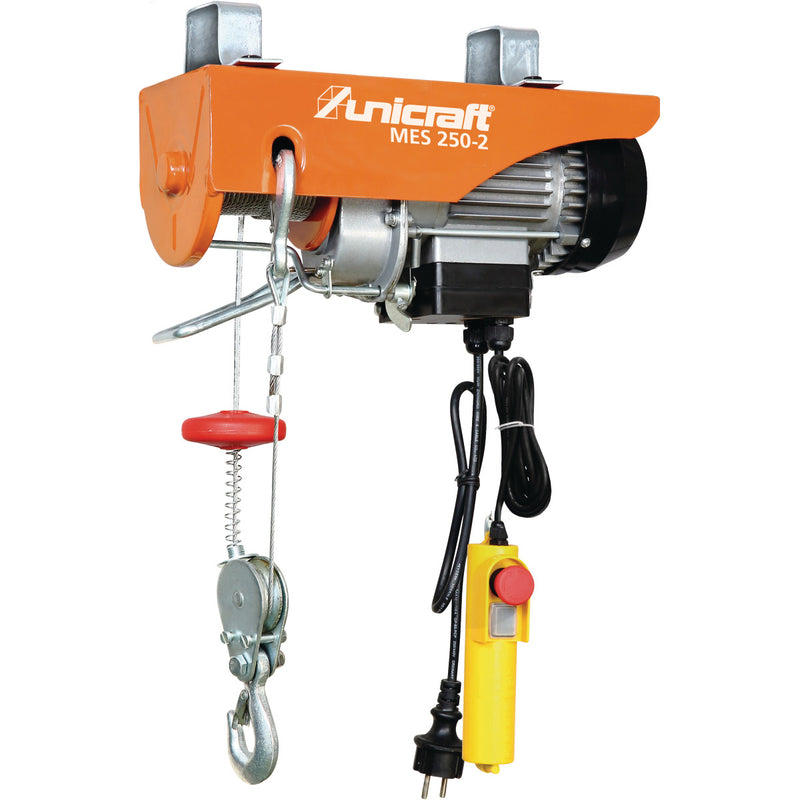

Unicraft (6198225) Mini electric cables MES 250-2
SKU 6198225
Original price
€158,67
Original price
€158,67
-
Original price
€158,67
Original price
€158,67
Current price
€150,74
€150,74
-
€150,74
Current price
€150,74
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
Note: The standard version of the electric wire rope hoist is equipped with a special clamp mounting system with a special profile for mounting on edge tubes. Accessories are required for mounting on round tubes.
| Lifting force without deflection pulley | 125 kg |
| Control unit cable length | 1.5 m |
| Lifting force with deflection pulley | 250 kg |
| Stroke without deflection pulley | 12 m |
| Stroke with deflection pulley | 6 m |
| Max. lifting speed without deflection pulley | 8 m/min |
| Max. lifting speed with deflection pulley | 4 m/min |
| Dimensions and weights | |
|---|---|
| Net weight approx. | 11 kg |
| Cable diameter | 3.0 mm |
| Inside dimensions of fastening clamps | 46 x 46 mm |
| Electrical Data | |
| Degree of protection | IP 54 |
| Supply voltage | 230 V |
| Mains frequency | 50 Hz |
| Drive motor output | 0.5 kW |
- EAN: 4036351214847
- Custom Number: 84253100
- Comprimento: 358 mm
- Altura: 237 mm
- Largura: 145 mm
- Peso Bruto: 11.25 kg
- Peso Líquido: 11 kg
Estimated shipping time: 48-72 hours
