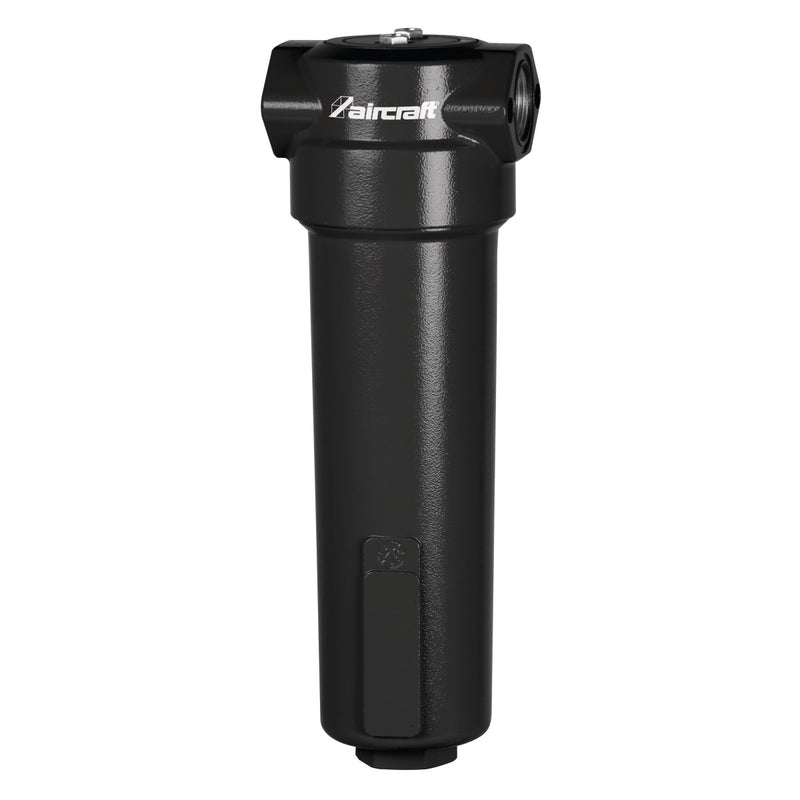

(2053438) Nanofilters ANF 0335
SKU 2053438
Original price
€312,17
Original price
€312,17
-
Original price
€312,17
Original price
€312,17
Current price
€296,57
€296,57
-
€296,57
Current price
€296,57
VAT Included
0% VAT for Businesses with an EU VAT Number! Available during checkout.
Product Overview:
- Compressed air filters are used for highly efficient removal of solid particles, water, oil, aerosols, hydrocarbons, odors and vapors from compressed air systems.
- To achieve the required quality of compressed air, filters that gradually remove all types of solid and liquid contaminants from the compressed air must be installed in the compressed air line
- Your advantages through better quality compressed air:
- Safe filtration of both liquids such as water and aerosols as well as particles, dust and gases
- Better working and production conditions
- Optimum protection of connected tools and machines
- Improved product quality through reduction of rejects
- Protection of the compressed air system against contamination
- Increase of productivity by reduction of instant maintenance
- for separating solid contaminants up to 0.01?m
- Residual oil aerosol content up to 0.01 mg / m³ at 20 ° C and 1 bar
- Operating temperature 1.5 to 65 ° C
- absolute compressed air quality according to ISO 8573-1
- for safe separation of condensate and particles
- complete with filter element and float valve
| Volume flow m³/h | 335 test |
| Volume flow l/min | 5580 l/min |
| Volume flow measured at operating pressure | 7 bar |
| Air connection | 1 " |
| Dimensions and weights | |
|---|---|
| Width/depth (product) approx. | 125 mm |
| Height (product) approx. | 363 mm |
| Technical data | |
| Particle size | 0,01 ?m |
| Residual oil aerosol content | 0,01 mg/m³ |
- EAN: 9006248016682
- Custom Number: 84149000
- Comprimento: 510 mm
- Altura: 130 mm
- Largura: 140 mm
- Peso Bruto: 2.8 kg
- Peso Líquido: 2.8 kg
