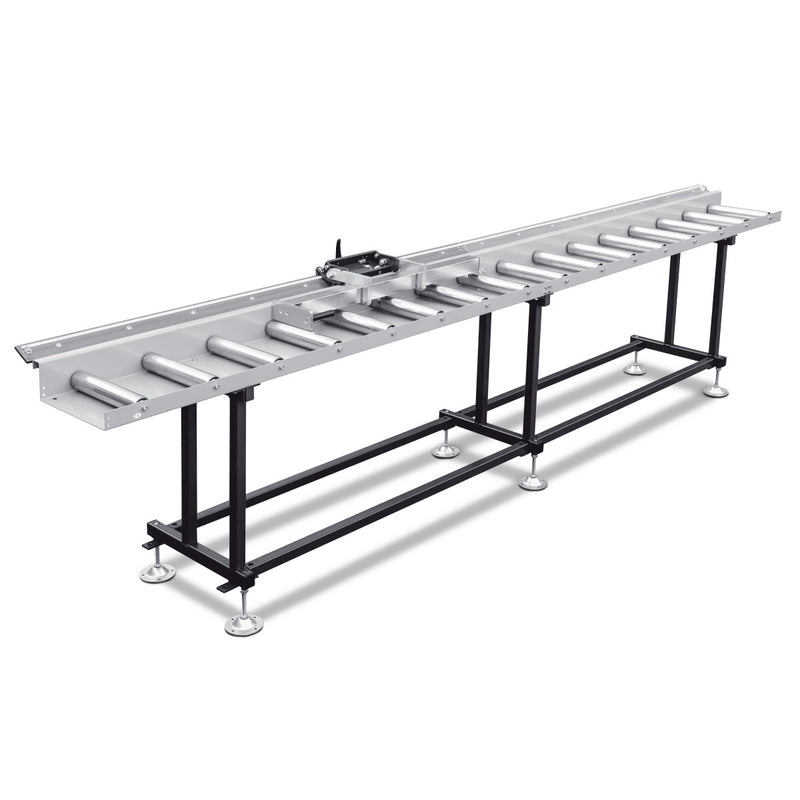

Roller And Gauge System Metallkraft

Product Overview:

• Stable U-shaped closed construction made of 3 mm sheet steel profile .
• Support rollers made of galvanized steel .
• All roller conveyors of the MRB standard series also available with plastic rollers .
• Supported rollers ball-bearing .
• The maximum measuring length is the length of the track minus the stop length 400 mm .
• Precision flat steel guide attached to the rear of the roller conveyor .
• Sturdy, 6-way ball-bearing material stop trolley, easy-moving, manually movable and lockable .
• Stopper with reading magnifying glass facilitates reading on the mm scale .
• Robust stop arm attached to the stop truck, adjustable to the tool (0 point) .
• Quality Made in Germany .

Working height up to 1020 mm possible with optional foot plates.

By request:

• Working height from 1020 mm can be extended from the factory .
• Also with 500 mm web width .
• More information available on catalog (download bellow).
