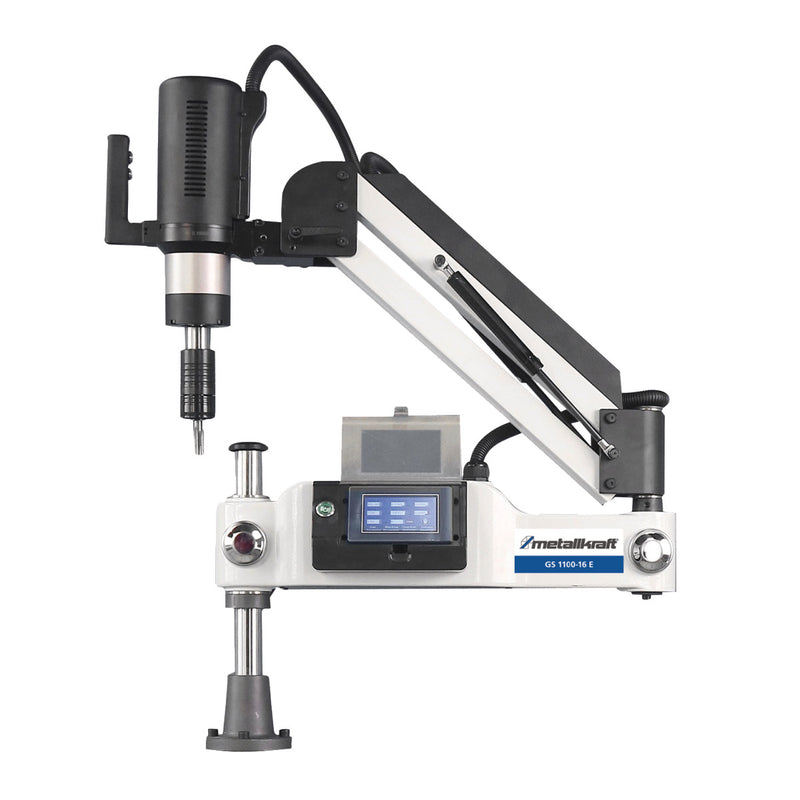

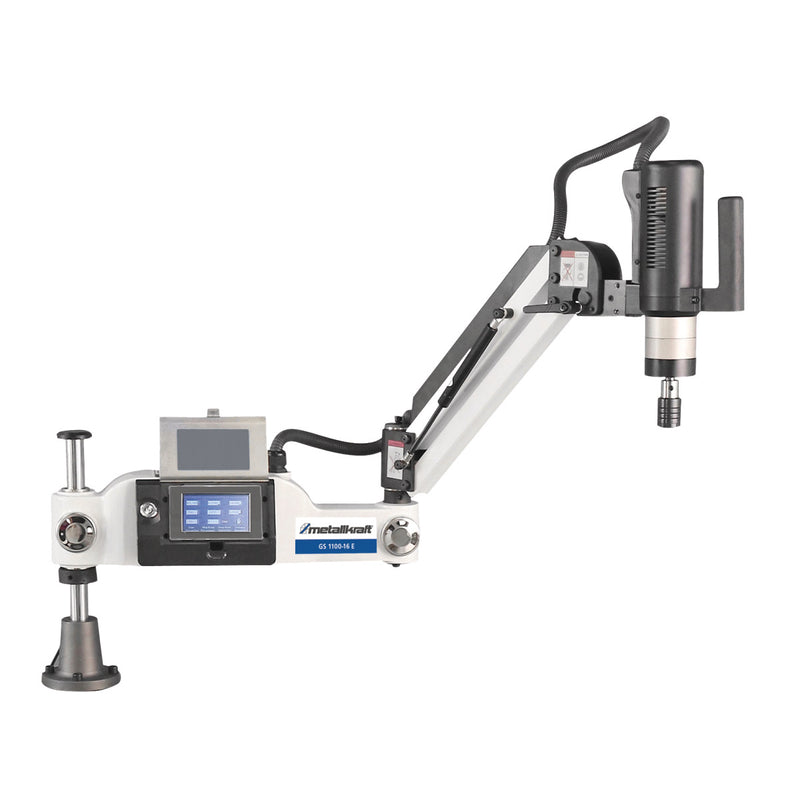

Electric Threading Machine Metallkraft (GS 1100-16 E)
Electric Threading Machine Metallkraft (GS 1100-16 E)
Electric Threading Machine Metallkraft (GS 1100-16 E)
Electric Threading Machine Metallkraft (GS 1100-16 E)

Electric Threading Machine Metallkraft (GS 1100-16 E)

SKU 4450116
€1.529,81
€1.529,81 - €1.529,81
€1.529,81
€1.223,85
€1.223,85 - €1.223,85
€1.223,85

VAT Included

0% VAT for Businesses with an EU VAT Number! Available during checkout.

Product Overview:

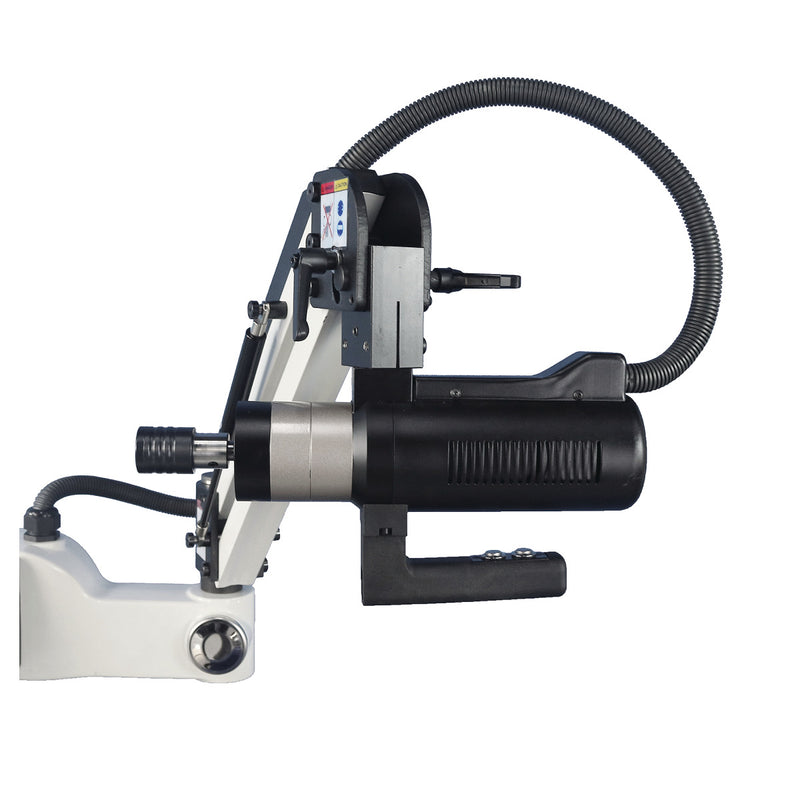

  • Machine head can be swiveled from 0 to 90 degrees.
  • Quick-change insert with slip clutch for safe thread cutting without risk of breakage.
  • Right/left rotation selectable on the machine head.

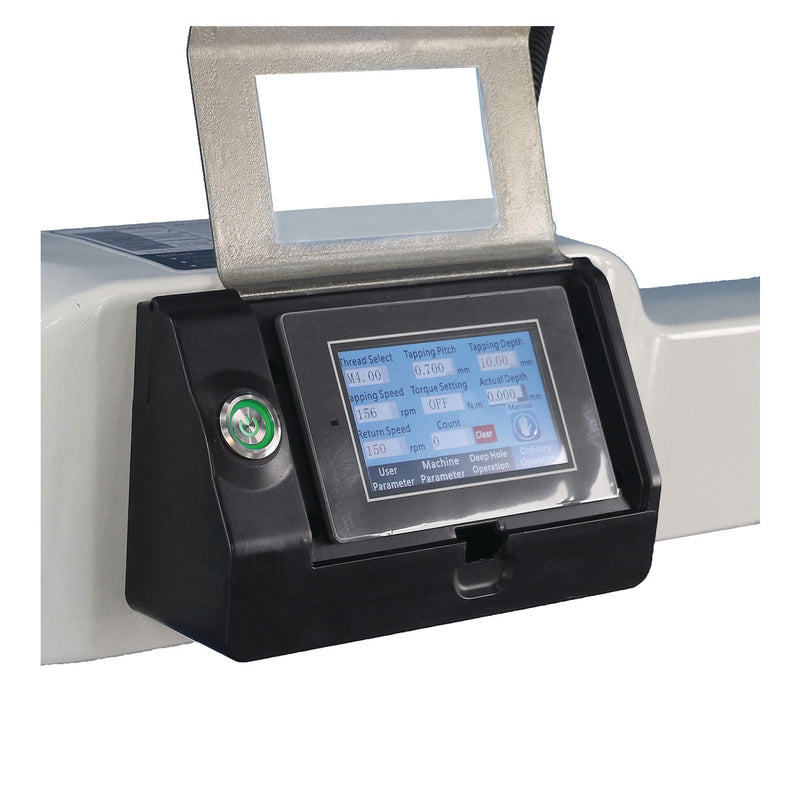

  • Adjustment of thread size, speed, pitch and cutting depth via touchscreen on the swivel arm.
  • User-friendly touchscreen operation in ten languages (German, English, French, Dutch, Polish, Portuguese, Spanish, Czech, Turkish, Russian).
  • Manual mode: After reaching the set cutting depth, the spindle stops automatically, forward and reverse must be activated manually.
  • Automatic mode: Once the set cutting depth has been reached, the machine automatically switches from forward to reverse - ideal for tapping multiple blind holes.
  • Substructure with clamping table and chassis available as accessories.



Tapped holes at 400 N/mm² M3 – M16
Max. speed 312 min¯¹
Sound pressure level Lp 59 dB(A)
Cutting direction right/link
Drive system electrical
Cantilever radius 1100 mm
Angle adjustment 0 – 90 °


Dimensions and weights
Length (product) approx. 930 mm
Width/depth (product) approx. 60 mm
Height (product) approx. 520 mm
Net weight approx. 25 kg


Electrical Data
Drive motor output 0,6 kW
Supply voltage 230 V
Mains frequency 50 Hz
  • 1 tapping chuck each GT12 M3, M4, M5-6, M8, M10, M12, M14, M16.
  • EAN: 4036351307099.
  • Custom Number: 84597000.
  • Comprimento: 690 mm.
  • Altura: 230 mm.
  • Largura: 610 mm.
  • Peso Bruto: 30 kg.
  • Peso Líquido: 25 kg.
Chuck adapter GT12 – B16
Chuck adapter GT12 – B16
Art. no.: 4460085
45.00 € + IVA
Chuck adapter GT24 – B18
Chuck adapter GT24 – B18
Art. no.: 4460086
45.00 € + IVA
Cutting oil spray 400 ml
Cutting oil spray 400 ml
New
Art. no.: 3872100
5.69 € + IVA
Magnet foot MF-GS1
Magnet foot MF-GS1
Art. no.: 4460010
Upon Request
Mounting for tapping chuck suitable for all GS -12 and GS -16
Illustration shows holder for thread cutting chuck suitable for all GS -12 and GS -16
Art. no.: 4460081
33.90 € + IVA
Substructure with clamping table for tapping attachments
Substructure with clamping table for tapping attachments
Art. no.: 4460006
939.00 € + IVA
Substructure with clamping table for threading machines
Substructure with clamping table for threading machines
Art. no.: 4460005
945.00 € + IVA
Tapping chuck GT12, M10
Picture shows tapping chuck GT24, M20
Art. no.: 4460054
22.50 € + IVA
Tapping chuck GT12, M12
Picture shows tapping chuck GT24, M20
Art. no.: 4460055
22.50 € + IVA
Tapping chuck GT12, M14
Picture shows tapping chuck GT24, M20
Art. no.: 4460056
22.50 € + IVA
Tapping chuck GT12, M16
Picture shows tapping chuck GT24, M20
Art. no.: 4460057
22.50 € + IVA
Tapping chuck GT12, M3
Picture shows tapping chuck GT24, M20
Art. no.: 4460050
22.50 € + IVA
Tapping chuck GT12, M4
Picture shows tapping chuck GT24, M20
Art. no.: 4460051
22.50 € + IVA
Tapping chuck GT12, M5-6
Picture shows tapping chuck GT24, M20
Art. no.: 4460052
22.50 € + IVA
Tapping chuck GT12, M8
Picture shows tapping chuck GT24, M20
Art. no.: 4460053
22.50 € + IVA
Threading Die Holder GT12 M10
Threading Die Holder GT12 M10
New
Art. no.: 4460090
56.50 € + IVA
Threading Die Holder GT12 M12-16
Threading Die Holder GT12 M12-16
New
Art. no.: 4460091
69.90 € + IVA
Threading Die Holder GT12 M3-6
Threading Die Holder GT12 M3-6
New
Art. no.: 4460088
45.00 € + IVA
Threading Die Holder GT12 M8
Threading Die Holder GT12 M8
New
Art. no.: 4460089
56.50 € + IVA
Threading Die Holder GT24 M12-16
Threading Die Holder GT24 M12-16
New
Art. no.: 4460094
85.00 € + IVA
Threading Die Holder GT24 M18-20
Threading Die Holder GT24 M18-20
New
Art. no.: 4460095
85.00 € + IVA
Threading Die Holder GT24 M22-24
Threading Die Holder GT24 M22-24
New
Art. no.: 4460096
99.90 € + IVA
Threading Die Holder GT24 M27-36
Threading Die Holder GT24 M27-36
New
Art. no.: 4460097
115.00 € + IVA
Threading Die Holder GT24 M3-6
Threading Die Holder GT24 M3-6
New
Art. no.: 4460092
56.50 € + IVA
Threading Die Holder GT24 M8
Threading Die Holder GT24 M8
New
Art. no.: 4460093
69.90 € + IVA
Threading Die Holder GT24-M10
Threading Die Holder GT24-M10
Art. no.: 4460087
69.90 € + IVA
.
  • More information available on catalog (download bellow).
    •
