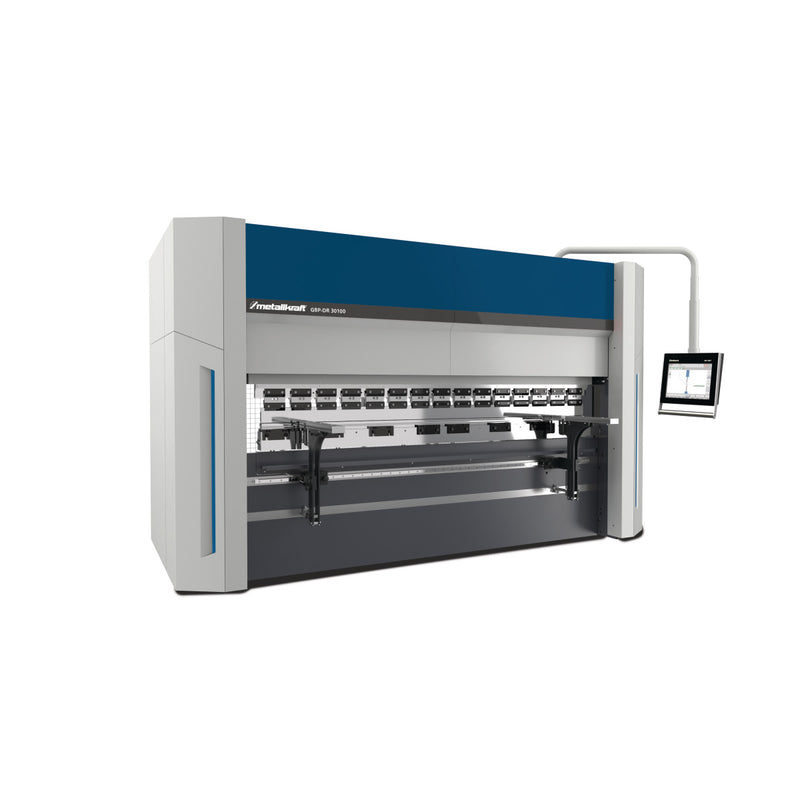

Electric Cnc Press Brake With Belt Drive Metallkraft

Product Overview:

• Purely electric drive via servo motors, belts and pulleys reduces energy consumption and noise pollution.
• Very high pressing speed with 20mm/s.
• No maintenance and leakage of hydraulics - no hydraulic oil required.
• Machine body as dimensionally stable, closed O-frame - no springing up.
• 2D-CNC graphic control Delem DA-58T control with large 15" touch screen, ergonomically mounted on swivel arm.
• Offline software Profile-T Lite.
• Y1, Y2, X and R axes CNC controlled.
• Motorized backgauge driven by zero-backlash ball screws and solid guides.
• Two backgauge fingers manually adjustable in longitudinal direction on linear rail.
• Safety laser Nuova DSP-AP moving with the upper beam.
• Safety PLC Nuova MCS.
• Motorized CNC control automatically calculated by the CNC.
• Promecam/Amada tooling system.
• Quick upper die clamping with lateral die removal.
• Simple die clamping via clamping plates.
• Complete set of sectioned dies.
• Slightly cranked upper die 85° with 104mm height.
• Quadruple die 85° with V-openings 16, 22, 35 and 50mm.
• Two quick adjustable front support arms on linear rails.
• High quality electronic components.
• LED work area illumination.
• Mobile double foot pedal.

• Various CNC controls (e.g.: Delem DA-66T or Delem DA-69T).
• 4-, 5-, or 6-axis backgauge systems.
• Additional backgauge fingers.
• Hydraulic or pneumatic tool clamping.
• More information available on catalog (download bellow).
