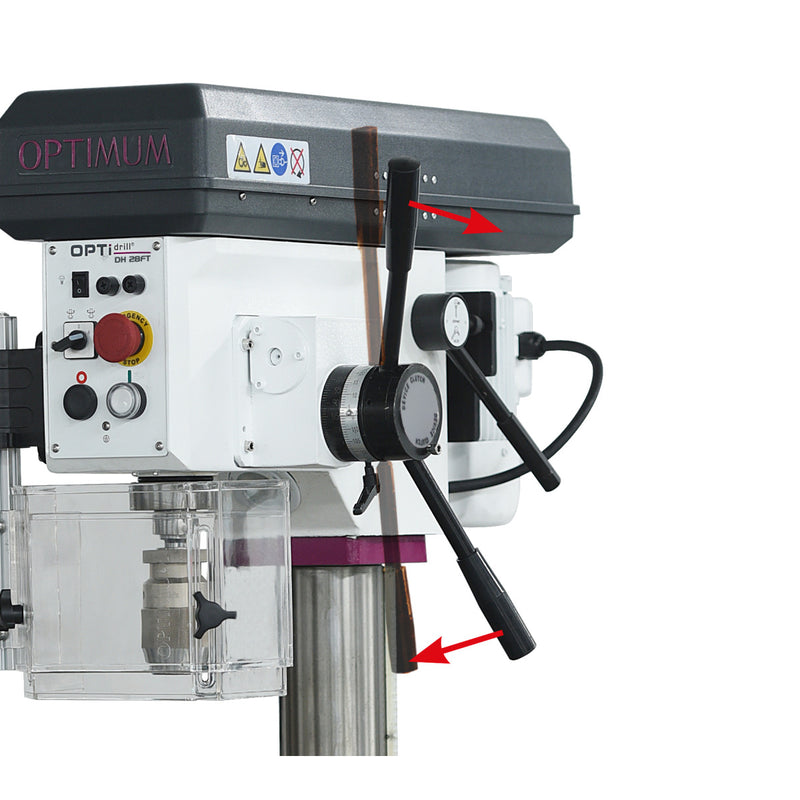

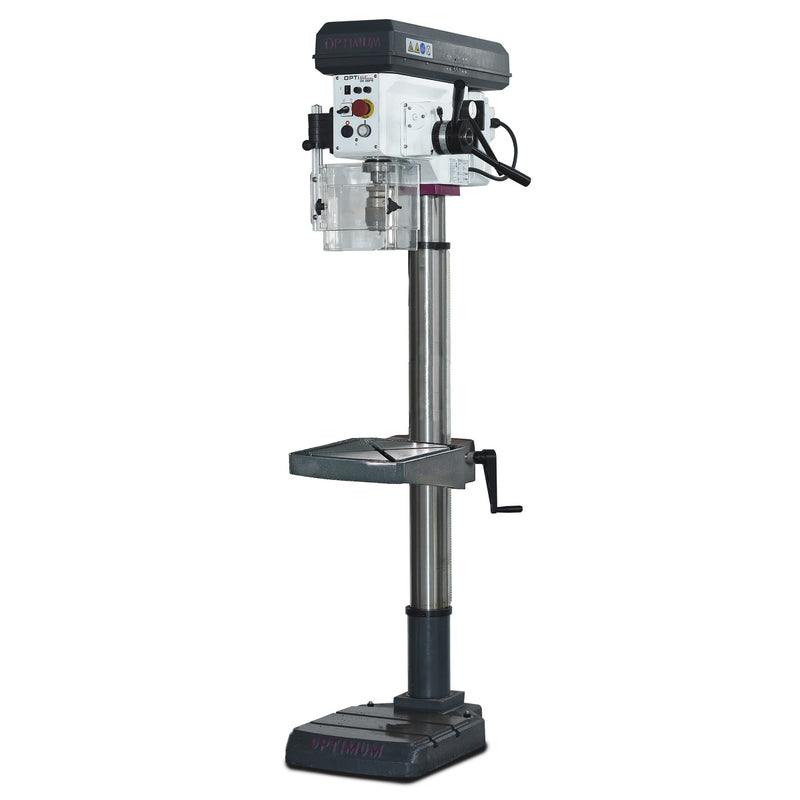

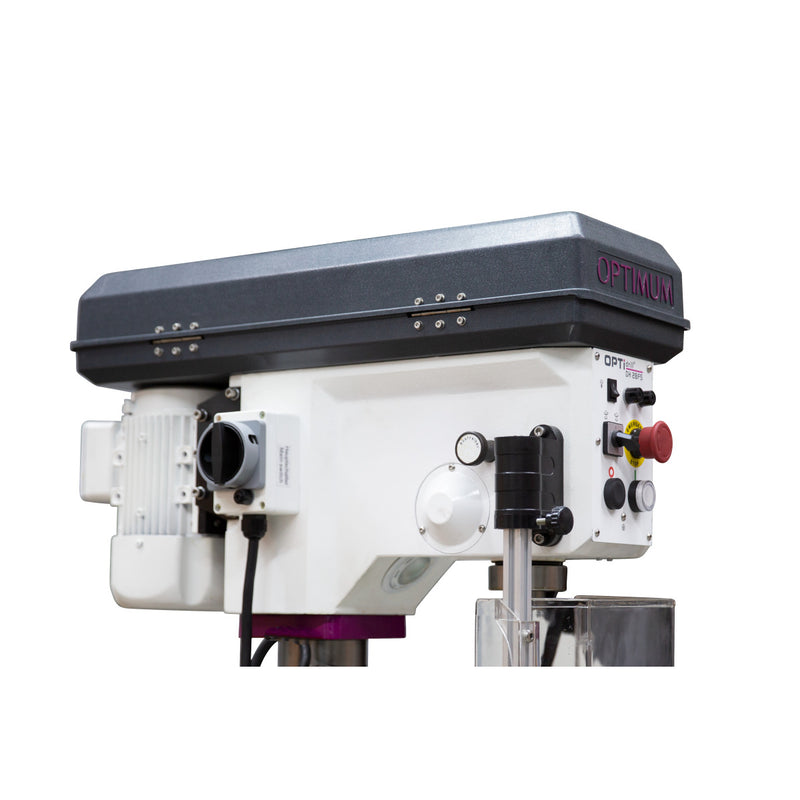

Optimum (3020284) Upright Drill OPTIdrill DH 28FS

Description

• Powerful brushless drive with particularly smooth running and high performance with almost constant torque over the entire speed range

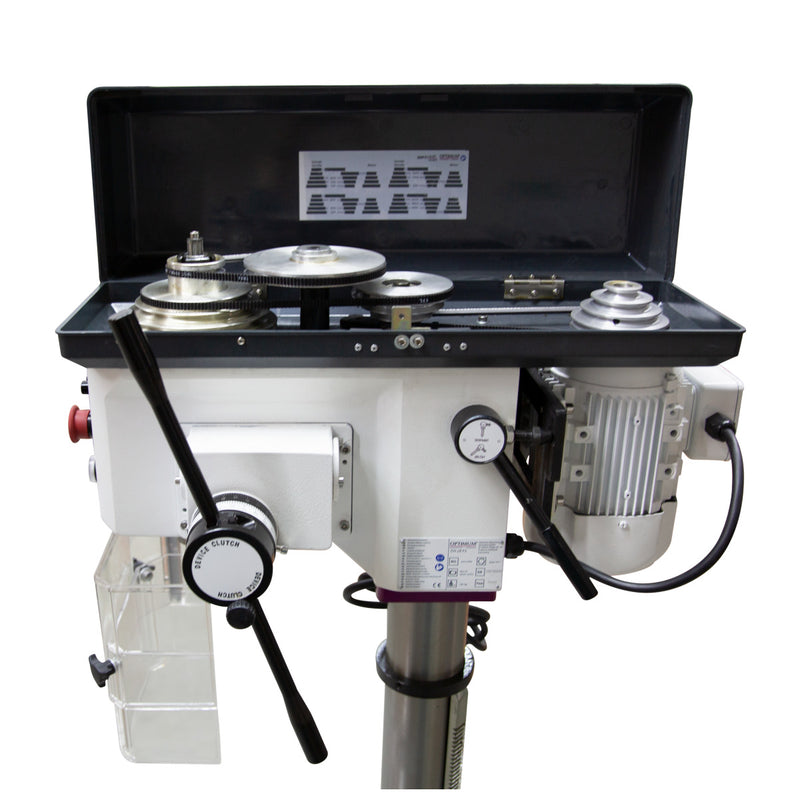

• Best power transmission thanks to aluminum pulleys in conjunction with toothed GATES quality V-belt
• Smooth running thanks to ground multi-tooth driver
• Guaranteed concentricity of less than 0.015 mm measured in the drill sleeve
• Separate emergency stop switch
• High-quality OPTIMUM quick-action drill chuck as standard
• Large, height-adjustable protective screen with safety switch for maximum user protection
• Drilling depth stop
• V-belt cover with safety switch
• V-belt tensioning device
• Right/left rotation
• Machine light integrated in the drill head
• Precisely machined, stable drill table with 2 diagonal T-slots, 360° rotatable and all-round cooling water channel
• Thick-walled cast column for high force absorption and stability
• Solid base plate, large dimensions and heavily ribbed on the back

Technical data

Dimensions and weights

• Length (product) approx.: 715 mm
• Column diameter: 92 mm
• Width/depth (product) approx.: 450 mm
• Height (product) approx.: 1720 mm
• Net weight approx.: 146 kg

Drilling performance

• Drilling performance in steel (S235JR): 28 mm
• Continuous drilling performance in steel (S235JR): 24 mm

Drilling table

• Drilling table workspace length: 340 mm
• Drilling table workspace width: 360 mm
• Drilling table T-slot type: diagonal
• Drilling table T-slot size: 14 mm
• Number of T-slots in drilling table: 2
• Drilling table rotation: 360 °
• Max. distance spindle - drilling table: 928 mm

Speed range

• Speed range: 120 - 3000 min¯¹
• Number of speeds: 12 passos

Electrical data

• Drive motor power: 0,85 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz

Machine base

• Max. distance spindle - machine base: 1279 mm
• Machine base workspace length: 320 mm
• Machine base workspace width: 320 mm
• Machine base T-slot size: 14 mm
• Number of T-slots in machine base: 2
• Machine base T-slot spacing: 120 mm

Spindle

• Milling head travel: 105 mm
• Spindle chuck: MT 3
• Reach: 200 mm

Delivery content

• Quick-release drill chuck 1 - 16 mm
• Morsekonus
• T-Nutensteine

Transport info

• EAN: 4030635040641
• Customs number: 84592900
• Length: 1940 mm
• Height: 500 mm
• Width: 770 mm
• Gross weight: 190 kg
• Net weight: 148 kg

Optional accessories

• Workplace mat 1840x640 mm
• Workplace mat 1840x940 mm
• Workplace mat 3040x640 mm
• Workplace mat 3040x940 mm
• Cutting oil spray 400 ml
• Twist drill HSS with Morse taper MT 3
