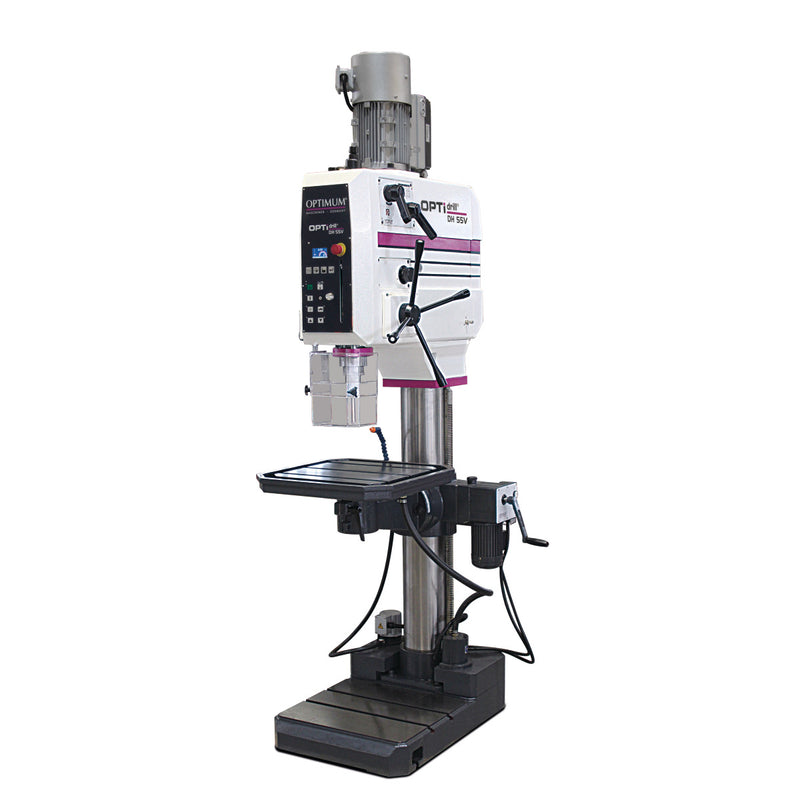

Optimum (3034267) Gear Drilling Machine OPTIdrill DH 55V

Description

• Infinitely variable speed control
• High concentricity due to hardened and ground main spindle
• Thread cutting device
• Main switch
• Largely dimensioned, height-adjustable safety screen with safety switch for maximum protection of the user
• Drilling depth stop
• 24V DC electronics
• Electronic quill feed
• Dirt and water resistant, easy to clean membrane keypad
• Optional foot switch for switching between clockwise and counterclockwise rotation and for thread cutting
• Programmable feed cut-off
• Easy-to-read digital display
• Digitally adjustable drilling and thread depth
• Digital zero point can be set
• External coolant tank

Technical data

Dimensions and weights

• Length (product) approx.: 850 mm
• Width/depth (product) approx.: 1060 mm
• Height (product) approx.: 2500 mm
• Net weight approx.: 900 kg

Drilling performance

• Drilling performance steel (S235JR): 55 mm
• Continuous drilling performance steel (S235JR): 50 mm
• Thread tapping steel (S235JR): M 42

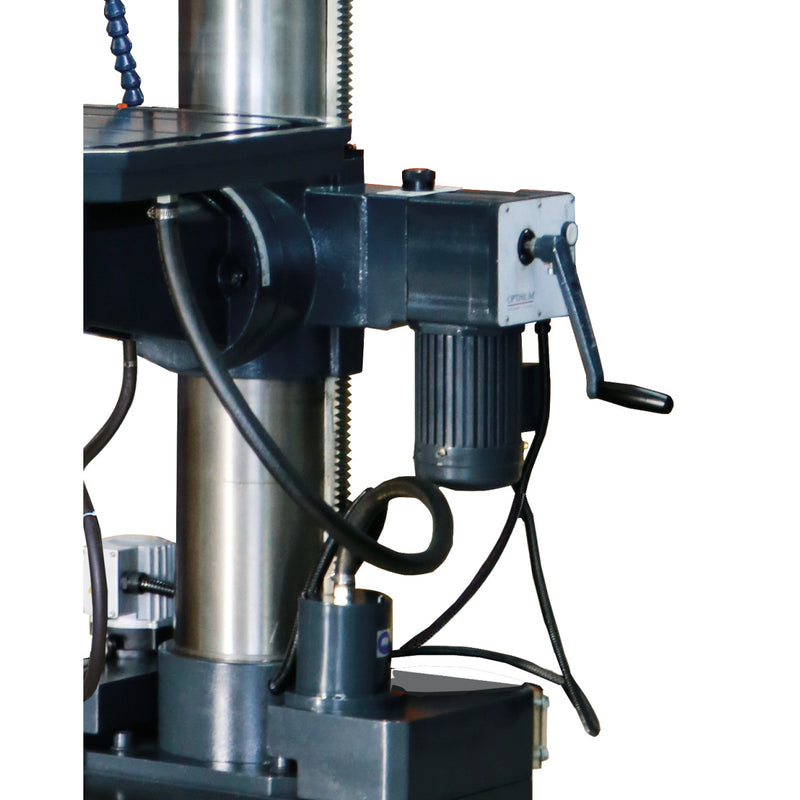

Drilling table

• Drilling table workspace length: 600 mm
• Drilling table workspace width: 600 mm
• Drilling table T-groove size: 16 mm
• Drilling table T-groove number: 3
• Drilling table T-groove spacing: 160 mm
• Drilling table load bearing capacity: 350 kg
• Max. distance spindle - drilling table: 725 mm
• Min. distance spindle - drilling table: 130 mm

Speed range

• Speed range: 10 - 3000 min¯¹
• Number of gears: 4 Steps

Electrical Data

• Drive motor output: 2,8 kW
• Supply voltage: 400 V
• Mains frequency: 50 Hz

Spindle

• Quill stroke: 190 mm
• Quill diameter: 60 mm
• Spindle chuck: MT 4
• Reach: 405 mm

Delivery content

• Keyless chuck 1-16 mm
• Morse cone MK 4/B 16
• Transmission oil

Transport info

• EAN: 4030635039355
• Customs number: 84592900
• Length: 2620 mm
• Height: 1290 mm
• Width: 870 mm
• Gross weight: 1017 kg
• Net weight: 907 kg

Optional accessories

• Workplace mat 1840x640 mm
• Workplace mat 1840x940 mm
• Workplace mat 3040x640 mm
• Workplace mat 3040x940 mm
• Cutting oil spray 400 ml
• Reducing sleeve MK4-MK3
• Twist drill HSS with Morse taper MT 3
